Model NO.
HQ1500
Payload
30T
Fuel
Diesel
Drive Mode
6x4
Maximum Horsepower
300-400hp
Condition
New
Transport Package
by Container
Specification
6400x2550x2450 mm
Trademark
HaiQin
Origin
Shandong, China
HS Code
8431499900
Production Capacity
5000PCS/Year
After-sales Service:
24 Hours Every Day of Technology and Parts Service
Warranty:
1 Year
Certification:
ISO9000, CE
Transmission Type:
Automatic
Emission Standard:
Euro II
Displacement:
1.3
Overview
Quick Details
Condition: New Place of Origin: Shandong, China
Brand Name: HAIQIN Motor Power: 2.2 kW
Mixing Power: 55 kW Charging Capacity: 2300 L
Reclaiming capacity: 1500 L Speed of Mixing Drum: 13r/min
Water Supply Mode: Electric Water Pump Working Cycle Period: 10-15min
Discharge Way: Reverse-Rotation Outline Dimension: 6400x2550x2450 mm
Product name: self loading concrete mixer Geometric Volume: 2300 L
Concrete Output: 1500 L/ batch Diesel Engine Brand: YUNNEI ( Cummins Optional)
Weight: 4500 kg Model Number: HQ1500
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Selling Units: Single item
Single package size: 1100X230X250 cm
Single gross weight: 4500.000 kg
Port: QINGDAO, CHINA
Lead Time:
1. Product Description

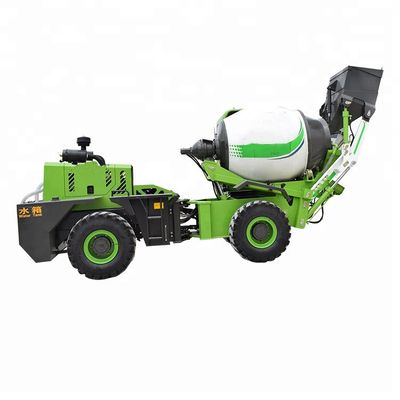

Product Application for HQ1500 self loading concrete mixer truck
HQ1500 Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete
mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with
powerful YUCHAI, 55 kW Diesel engine and 4 wheel drive , the self loading concrete mixer is just like a truck and the
operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone.
The mixing drum and cabin could slew together through 270° for high discharge over 2 m on the four sides of the vehicle.
The the Geometric Volume of Mixing Drum is 2.3m³. The concrete output is 1.5m3 per Batch. The wide cabin windscreen
and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity
self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 48m³ of concrete)
and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
2. Product parameters
3. Main Features
1) China TOP Brand WEICHAI Diesel Engine as standard Power, Cummins Engine is Optional
2) The Integrated Structure Chassis and Four- Wheel Steering
3) Full Hydraulic Brake System
4) Eight PCS of All Steel Radial Tyres support all vehicle
5) The mixing unit could slew hydraulically up to 290°
6) Centralized Lubricating System for Easy Maintenance
7) Closed Circuit Hydraulic Rotation System
8) Spacious Driver's Cab with Italian Weighing System, A/C and Fire Extinguisher inside
China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is Optional
The CMT3500R Self Loading Concrete Mixer is driven by YUCHAI ,85 kW (115 HP), Turbo-charged , Water-cooled Diesel
Engine. The YUCHAI Diesel Engine is China Top Brand, which is featured by High Reliablity and Low Fuel Comsumption.
The CUMMINS (130 HP) Engine is availabe upon request.
Rear Location of Water Tank
Two Sets of Water tank are positioned opposite each other at the rear of machine, with total volume of 400 Liter. The
electric water pump is mounted on the top of water tank, which is beneficial to suck water from water tank easily.
Air-conditioner is available
The Air-conditioner is just standard configuration for this self loading concrete mixer. The working condition inside the
driver's cab is much more pleasant and comfortable than that only equipped with electric fan.
Off Road Industrial Steel Wire Line Tyre
The machine is equipped with Off Road Industrial Steel Wire Line Tyre with model of 16/70-20, PR14. The drive means is
4x4 .The steel wire line tyre is much more stronger nylon tyre, which could ensure the machine work safe on muddy and
bumpy road.
Panoramic Color Monitor
The Panoramic Color Monitor is near the steering wheel. The operation situation from the four sides of machine could be
shown clearly on the Color Monitor, which increase the savety of drive.
4. Packaging & Delivery
Quick Details
Condition: New Place of Origin: Shandong, China
Brand Name: HAIQIN Motor Power: 2.2 kW
Mixing Power: 55 kW Charging Capacity: 2300 L
Reclaiming capacity: 1500 L Speed of Mixing Drum: 13r/min
Water Supply Mode: Electric Water Pump Working Cycle Period: 10-15min
Discharge Way: Reverse-Rotation Outline Dimension: 6400x2550x2450 mm
Product name: self loading concrete mixer Geometric Volume: 2300 L
Concrete Output: 1500 L/ batch Diesel Engine Brand: YUNNEI ( Cummins Optional)
Weight: 4500 kg Model Number: HQ1500
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Selling Units: Single item
Single package size: 1100X230X250 cm
Single gross weight: 4500.000 kg
Port: QINGDAO, CHINA
Lead Time:
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 50 | >50 |
| Est. Time(days) | 7 | 10 | 30 | To be negotiated |
1. Product DescriptionProduct Application for HQ1500 self loading concrete mixer truck
HQ1500 Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete
mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with
powerful YUCHAI, 55 kW Diesel engine and 4 wheel drive , the self loading concrete mixer is just like a truck and the
operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone.
The mixing drum and cabin could slew together through 270° for high discharge over 2 m on the four sides of the vehicle.
The the Geometric Volume of Mixing Drum is 2.3m³. The concrete output is 1.5m3 per Batch. The wide cabin windscreen
and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity
self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 48m³ of concrete)
and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
2. Product parameters
| Specifications for HQ1500 Self Loading Concrete Mixer | ||
Mixing Drum | Mixing Volume | 1500 L |
| Geometric Volume | 2300 L | |
| Concrete Output | 1500 L/ batch , 4 Batches/ hr | |
| Inclination Angle | 16° | |
| Max. Slewing Angle | 0° | |
| Rotating Speed | 10~21 rpm | |
| Body /Bottom Thickness | 4 mm/6 mm(Q345B) | |
| Overall Size | Φ1350x 1920 | |
Discharge Chute | Max. Slewing Angle | 180° |
| Tilting Method | Mechanically | |
| Length | 450mm +1200 mm (2 Sections) | |
Diesel Engine | Brand | YUNNEI ( Cummins Optional) |
| Model | YN27GBZ | |
| Rated Power/Speed | 75 HP /2400 rpm | |
| Max.Torque/ Speed | 237 N.m/1800 rpm | |
| Bore x Stroke | 90 mm x105 mm | |
| Displacement | 2.7 L | |
| Type | 4-Cylinder,In-line, Turbo Charged, Water-cooled | |
| Emission Standard | Euro II | |
| Hydraulic Driving System | Reducer Model | KY07-2-0 |
| Hydraulic Pump Displacement | 50/40 mL/r | |
| Hydraulic Motor Displacement | 160 mL/ r | |
| Water Supply System | Water Tank Volume | 2 x 200 L |
| Water Supply Mode | Self-contained, Electric water pump | |
Chassis | Structure | Articulated Structure |
| Drive Type | 4 X 4 | |
| Transmission | 2 Forward +2 Reverse Shift (Low+ High Speed) | |
| Torque converter | YJ265 | |
| Gearbox Mode | Counter Shaft, Power-shift | |
| Wheelbase | 2300 mm | |
| Tread | 1550 mm | |
| Loading Shovel Capacity | 500 L | |
| Brake Type | Air Brake | |
| Tyre Size | 20.5/70-16 | |
| Vehicle | Drum and Shovel Control | By 2 Sets of Joystick |
| Driver's Cab | Air-conditioner Inside | |
| Max. Drive Speed | 30 km/h | |
| Grade Ability | 30 % | |
| Mini Turning Radius | 4750 mm | |
| Max. Payload | 3,600 kg | |
| Operating Weight | 4,500 kg | |
| Overall Size | 6400 x 2550x 2450 mm | |
1) China TOP Brand WEICHAI Diesel Engine as standard Power, Cummins Engine is Optional
2) The Integrated Structure Chassis and Four- Wheel Steering
3) Full Hydraulic Brake System
4) Eight PCS of All Steel Radial Tyres support all vehicle
5) The mixing unit could slew hydraulically up to 290°
6) Centralized Lubricating System for Easy Maintenance
7) Closed Circuit Hydraulic Rotation System
8) Spacious Driver's Cab with Italian Weighing System, A/C and Fire Extinguisher inside
China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is OptionalThe CMT3500R Self Loading Concrete Mixer is driven by YUCHAI ,85 kW (115 HP), Turbo-charged , Water-cooled Diesel
Engine. The YUCHAI Diesel Engine is China Top Brand, which is featured by High Reliablity and Low Fuel Comsumption.
The CUMMINS (130 HP) Engine is availabe upon request.
Rear Location of Water TankTwo Sets of Water tank are positioned opposite each other at the rear of machine, with total volume of 400 Liter. The
electric water pump is mounted on the top of water tank, which is beneficial to suck water from water tank easily.
Air-conditioner is availableThe Air-conditioner is just standard configuration for this self loading concrete mixer. The working condition inside the
driver's cab is much more pleasant and comfortable than that only equipped with electric fan.
Off Road Industrial Steel Wire Line TyreThe machine is equipped with Off Road Industrial Steel Wire Line Tyre with model of 16/70-20, PR14. The drive means is
4x4 .The steel wire line tyre is much more stronger nylon tyre, which could ensure the machine work safe on muddy and
bumpy road.
Panoramic Color MonitorThe Panoramic Color Monitor is near the steering wheel. The operation situation from the four sides of machine could be
shown clearly on the Color Monitor, which increase the savety of drive.
4. Packaging & Delivery
5. Working Case in the foreign countries of Haiqin Machinery
6. Certificate of Haiqin Machinery
7. More product categories of HaiQin Machinery
8. Warranty and Service.
HAIQIN machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.
Choose HAIQIN, and then better after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
