Payload
5t
Fuel
Diesel
Drive Mode
4x2
Maximum Horsepower
<200hp
Condition
New
Delivery Time
Shipped in 30 Days After Payment
Axle Load
3600 / 10000kg
Brake
Air Brake
Mixer Drum
3m3, 4m3, 5m3, 6m3
Material
High Strength Steel
Hydraulic Pump
Eaton, Sauer or Chinese Brand
Hydraulic Motor
Eaton, Sauer or Chinese Brand
Reducer
Zf, Bonfiglioli or Chinese Brand
Product Name
HOWO/Foton Concrete/Cement Mixer Truck
Drive Type
4X2, 6 Wheels, 6 Wheeler
Transport Package
RO-RO Ship, Bulk Ship, Container
Specification
7520 X 2500 X 3660mm
Trademark
CLW
Origin
Suizhou, China
HS Code
87059099
Production Capacity
500unit/Month
After-sales Service:
with After Sales Service
Warranty:
One Year
Certification:
ISO9000, CCC, CE
Transmission Type:
Manual
Emission Standard:
Euro 3
Displacement:
4.2

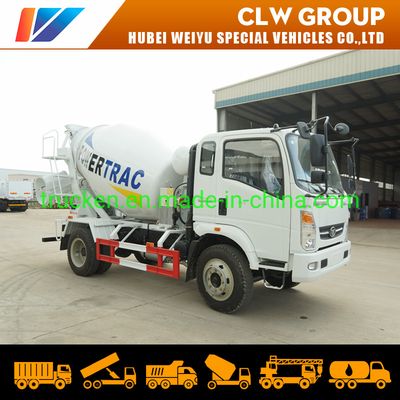

5cbm/5m3 Concrete Mixer Truck 6 Cubic Meters Mixing Equipment with Hydraulic Pump
Description:
Concrete truck/mixer truck/mixing truck/concrete mixer truck are made to transport and mix concrete up to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. With this process, the material has already been mixing. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman, etc.
2. High Tension Steel Q345 Tank Material in 4mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
The specification for HOWO FOTON 4x2 160HP YUCHAI Diesel Engine Small 4M3 5M3 Cement Concrete Mixer Truck
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Description:
Concrete truck/mixer truck/mixing truck/concrete mixer truck are made to transport and mix concrete up to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. With this process, the material has already been mixing. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman, etc.
2. High Tension Steel Q345 Tank Material in 4mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
The specification for HOWO FOTON 4x2 160HP YUCHAI Diesel Engine Small 4M3 5M3 Cement Concrete Mixer Truck
| roduct Name | Sinotruk HOWO 5m3 5cbm 5 cubic meter mixing drum cement transit concrete mixer truck | |
| Main parameters | Overall size(L*W*H) | 6680,6780*2300*3130mm |
| Gross weight | 9290kgs | |
| Rated capacity | 3495kgs | |
| Curb weight | 5600kgs | |
| Approaching/Departure Angle | 24/19(°) | |
| Front/Rear suspension | 1275/2005mm | |
| Max.speed | 80km/h | |
| Chassis | Chassis Brand | Sinotruck |
| Chassis model | CDW3090A2B4 | |
| Drive type | 4x2 | |
| Fuel Type | Diesel | |
| Tire Specification | 8.25-16,8.25R16 | |
| Tire No. | 6 | |
| Wheelbase | 3350,3500,3250,3400mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 11/11+9 | |
| Gearbox | 5-speed | |
| Front trend | 1770mm | |
| Rear trend | 1640mm | |
| Engine | Manufacturer | Guangxi Yuchai Machinery |
| Model | YC4D130-41 | |
| Horse Power | 130HP | |
| Displacement/Power | 4200ml/96kw | |
| Emission standard | Euro 4 | |
| System | Item | Reference Data |
| Parameters of mixing drum | agitation volume (m3) | 5 |
| charging rate (m3/min) | ≥2.8 | |
| discharging rate (m3/min) | ≥1.2 | |
| residual rate (%) | ≤0.5 | |
| rotating speed of | 0~12 | |
| mixing drum (rpm) | ||
| Driving system | speed reducer | made in China |
| hydraulic pump | made in China | |
| hydraulic motor | made in China | |
| radiator | made in China | |
| Water supply | water tank volume (L) | 400 |
| type of water supply | air pressure water supply | |
| Control system | control mode | connecting rod control |
| structure features | 1,mixing drum and mixer blade using special | |
| wear-resisting material Q345, mixing drum material | ||
| thickness is 4mm,mixer blade material thickness is 3mm. | ||
| 2, material of blowpit and feed hopper | ||
| scaleboard is just the same as the mixing drum; | ||
| 3,humanizing operating system,connecting rod operation,concise safe and reliable; | ||
| 4,using imported brand-name hydraulic system; | ||
| 5,flushing water back control; | ||
| 6,product with quick discharging, no residual | ||
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
