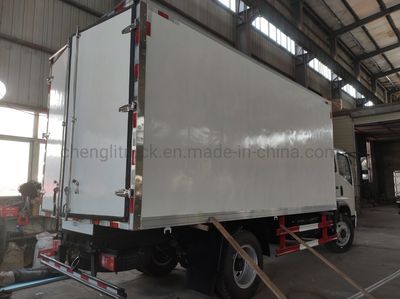

Refrigerator truck (also called refrigerator wagon, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, termperature
controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at specific temperatures.The cooling device could
be of famous brand such as Carrier, Thermoking etc.
There are two types of power driving ways, one is powered by vehicle engine through PTO, the other one is driven by independent power unit.
| Specification of 10ton howo 140hp 4*2 LHD refrigerated truck | ||||
| Description | 10ton howo 140hp 4*2 LHD refrigerated truck | |||
| Drive Model | 4*2, Left Hand Drive | |||
| Cab | Inside & outside | 3 person,ordinary seat,general paint,with air condition | ||
| Rear mirror | left/right frame rear view mirror (four mirror type) | |||
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 7445*2600*3680 | ||
| Wheel base (mm) | 4200 | |||
| Axle load(front /rear)(ton) | 3.2/8.0 | |||
| Suspension | 9/12+9B | |||
| Fuel tank | 220L iron tank | |||
| Max. driving speed(km/h) | 95 | |||
| Engine | Model | YC4E140-33 | |
| MAX Power(HP) | 140 | ||
| Displacement(L) | 4.257 | ||
| Maximum output power | 105kW | ||
| Fuel | Diesel | ||
| Engine form | Vertical, inline, water cooled, four stroke, direct injection | ||
| Cylinder Number | 4 | ||
| Engine net weight(kg) | 380 | ||
| Cylinder x stroke(mm) | 110*112 | ||
| Maximum torque(N.m) | 500 | ||
| Rated speed(rpm) | 1600 | ||
| Maximum torque speed(rpm) | 2800 | ||
| Noise outside one meter(dB) | 99 | ||
| Minimum fuel consumption at full load(g/kW.h) | 200 | ||
| Emission standard | Euro 3 | ||
| Accessories | Air dryer, engine noise reduction board, electric flameout |
| Gearbox | WLY6T51(110), 6 Forwarder+1 Reverse |
| Steering Gear | power steering |
| Tire | 8.25R20 , 6+1 Spare tire |
| Clutch | Clutch assist |
| Brakes | Spring brake,exhaust brake |
| Van body | |
| Material of box | Glass fiber reinforced plastics,Patterned aluminum floor |
| Thermal insulation | Polyurethane foam,8cm thickness |
| Dimension | 5090*2440*2200mm |
| Door | Rear door open |
| Refrigeration unit brand | Dongin (Korea Brand) DT-150S |
| Temperature | -15ºC-0ºC Adjustable |
| Features | 1.Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation. 2.Dongin Refrigeration unit, lowest Cooling Temperature negative 15 centi-degree. |
II. More Refrigerated trucks for reference
III. SHIPPMENT: RO-RO ,BULK VESSEL OR CONTAINER
IV. ABOUT US
HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,
sales and service in special trucks like as boom truck, fire truck, manlift truck, tank truck, garbage truck, tipper truck, wrecker
truck, refrigerated truck, water truck, etc.
Our main products:
Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria,
Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our
Factory Is Getting Better And Better.
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current
production condition.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
