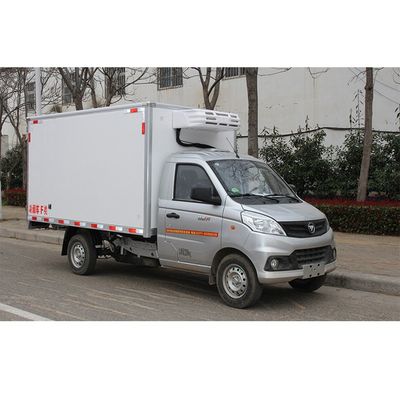

Nose-mounted condenser; applicable for all kinds of small and medium-sized refrigerated trucks
Reasonable product design; fibergalss shell, elegant and durable; ultra-slim evaporators with big air flow volume
Direct-drive by the vehicle engine, with big and fast cooling, high-efficency and reliability, low failure rate
Quick and easy installation, simple maintenance, saving operation cost
Digital and multi-functional control panel, double screen display, precise temperature control and simple operation, with e-diagnostics and fault alarming
Optional CPR heating and STANDBY
| Model | FY200 | ||
| Cooling Capacity | 0ºC/+38ºC | 2190W | 7472Btu |
| -18ºC/+38ºC | 1250W | 4265Btu | |
| Temperature Range | -18ºC~+30ºC | ||
| Voltage | DC12V/24V | ||
| Defrosting | Hot gas defrosting | ||
| Evap. Air Volume | 850m³/h | ||
| Refrigerant & Volume | R404a/0.9kg | ||

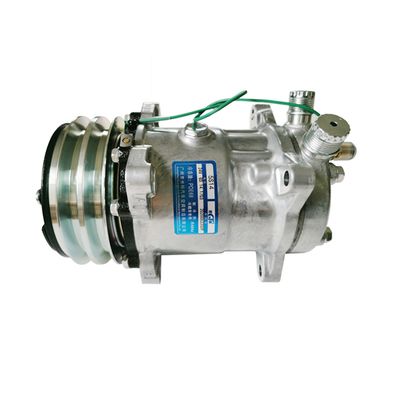

| Compressor | Brand | GUANGYU | |
| Model | 5H14 | ||
| Dis. | 138cc/r | ||
| Condenser | Coils | Parallel flow | |
| Fan Qty. | 1Pcs | ||
| Size | 920*530*230mm | ||
| Weight | 23.5kg | ||
| Evaporator | Coils | Copper tube and fin | |
| Fan Qty. | 1Pcs | ||
| Size | 770*570*150mm | ||
| Weight | 13kg | ||
| Recommended Box Size | 6-12m³ | ||
1. How to choose our product?
Firstly, we are specialized in the field of vehicle including bus,coach,chassis,spare parts,truck & etc., so you can tell us what kind of vehicle or spare parts you need,and then we will recommend you the corresponding products. Secondly, you can choose the product that we show on Made-in-China.com website.
2. How to ensure the product quality?
Firstly, the products we supply were passed the Chinese & international quality system. Secondly, we will inspect the products before packing to ensure the product in good condition. Finally, you can entrust third party individuals or organizations to inspect the products before delivery.
3. How's the payment terms?
We usually accept L/C at sight, T/T before delivery, if you have other requirment you should contact with us.
4.How long is the delivery time?
The delivery time is within 15-20 days once receipt of the deposit.
