Bearing Capacity
Small
Car Type
Van
Condition
New
Function
Refrigerated Truck
Refrigerator
Thermo King, Denso, Carrier for Option
Engine
4kh1
Transport Package
Naked
Trademark
ISUZU
Origin
China
HS Code
8705400000
Production Capacity
20000/Year
Certification:
ISO9000, TS16949, CE
Payload:
3
Emission Standard:
Euro-IV and Euro-V
Transmission Type:
Manual
Horsepower:
＜150hp
Fuel:
Diesel
CHINA ISUZU NHR REFRIGERATED TRUCK,LOADING CAPACITY 3 TON,ENGINE 120 HP,4KH1 SERIES,TOTALLY COMPATIBLE WITH JANPAN ISUZU IN BOTH SPARE PARTS AND AFTER SALES SERVICECOMPETITIVE PRICE AND EXCELLENT PERFORMANCE.
FAMOUS BRAND THERMO KING,DENSO AND CARRIER REFRIGERATOR FOR OPTION

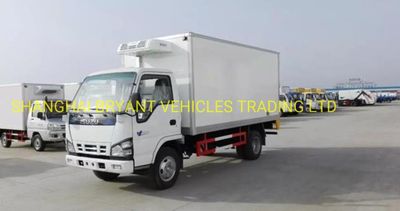

1. TRUCK PIC
2. ISUZU 600P REFRIGERATED TRUCK MODEL SPECS
FAMOUS BRAND THERMO KING,DENSO AND CARRIER REFRIGERATOR FOR OPTION
1. TRUCK PIC
2. ISUZU 600P REFRIGERATED TRUCK MODEL SPECS
| Model | QL5060XXYA1FA Driving type: 4*2 left hand driving | ||
| Engine | Make: ISUZU | ||
| Engine model:4KH1-TCG40, Euro IV emission standard | |||
| 4-cylinder in-line with water cooled, turbo-charging and intercooler,high pressure common rail DENSO 1800 Bar | |||
| Maximum output: 120 hp (88 Kw) | |||
| Maximum torque: 290 Nm | |||
| Displacement: 2.999 L | |||
| Transmission | ISUZU MSB-5MT, 5 forwards and 1 reverse,manual | ||
| Front Axle | Steering with double T-cross section beam, 2.2 Ton loading Capacity | ||
| Rear Axle | 4.2 Ton loading capacity | ||
| Chassis | Frame: U-profile parallel ladder frame and reinforced subframe | ||
| Front suspension: leaf spring | |||
| Rear suspension:leaf spring | |||
| Aluminium fuel tank: 100 L capacity with locking fuel cap, fitted to the off side of the chassis | |||
| Wheels & Tyres | Tire:7.00R16, radial | ||
| Driver's Cab | Standard cab,two seats,A/C | ||
| Dimensions mm | Wheel base | 2765 MM | |
| Overall length | 5385 MM | ||
| Overall width | 1900 MM | ||
| Overall height | 2815 MM | ||
| Refrigeration Van box | Aluminum material heat protection box,foam filled and covered with stainless steel panel,interior size 3600*1800*1800MM,stainless steel plain floor,interior light,double rear swing out door with lock and key plus right front single swing out door,THERMO KING refrigerator model RV380 | ||
| Weight kg | Dead weight | 2800 KG | |
| Rated Loading Capacity | 3600 KG | ||
| Gross vehicle weight(GVW) | 6400 KG | ||
| Front axle loading capacity | 2200 KG | ||
| Rear axle loading capacity | 4200 KG | ||
