Model NO.
AUMARK-S33
Horsepower
＜150hp
Fuel
Diesel
Bearing Capacity
Micro
Car Type
Van
Condition
New
Transport Package
by RO-RO Ship
Specification
5890*2105*2400
Trademark
FOTON
Origin
China
HS Code
8705909990
Production Capacity
500 Set/Month
After-sales Service:
Video Technical Support ,Online Support
Warranty:
1 Year or 30000km
Certification:
ISO9000, CCC, CE
Payload:
3-6
Emission Standard:
Euro 3
Transmission Type:
Manual

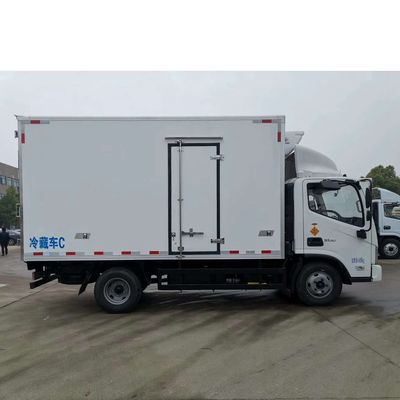

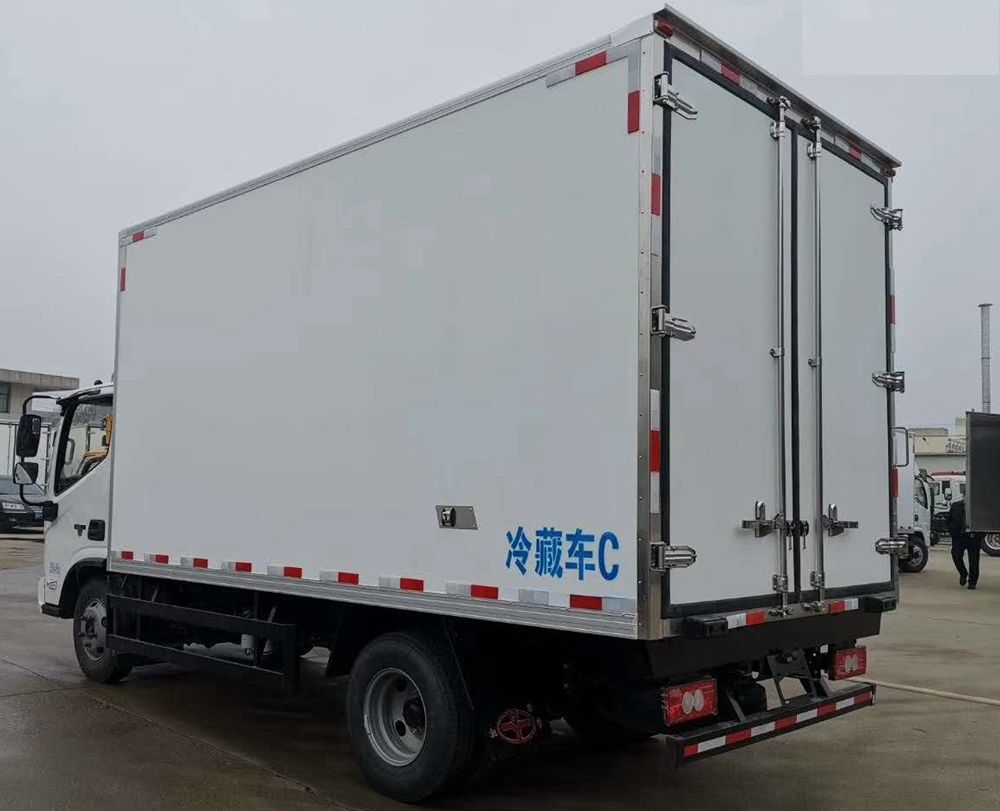

The refrigerator truck is a van or truck designed to carry perishable freight at specific temperatures. Like refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent.
| voltage | 24V | |
| Packing case | Internal size | 4100*2000*2000 |
| The material | Inside and outside: glass steel plate, sandwich: polyurethane board (≥40kg/m3) | |
| thickness | Front plate, back plate, top plate, bottom plate and left and right plate: more than 100mm | |
| The framework | The upper and lower frames and front columns are aluminum profiles or stainless steel | |
| Open the door form | Double rear door, passenger side single side door | |
| The refrigeration unit | Brand and Specifications | American Cold King /SV400 |
| Refrigeration requirements | Minimum temperature: -18ºC | |
| The optional features | No backup electricity, no heating | |
| The attachment | Protective device | Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 |
| Door lock and folding | Choose stainless steel material | |
| Lamps | Adopt LED seal lamp, lampshade need to glue seal | |
| rear pedal | Aluminum alloy pedal | |
| interior | Equipped with patterned aluminum bottom plate and patterned anti-collision plate (300mm height) | |
| The special performance | Corrosion protection | The cargo box shall meet the salt spray test for more than 504 hours (including connecting bolts, welding points and anti-corrosion of paint surface) |
| In the rain | The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test. | |
| airtight | Under the condition that the pressure difference between inside and outside the compartment is 100± 10Pa, the air leakage ratio is less than or equal to 6.3L /h | |
| Heat insulation | The average wall temperature of the carriage is 293K ~ 298K, and the total heat transfer coefficient K is less than or equal to 0.5 | |
