Model NO.
CLW5130XLCEQ6
Horsepower
150-250hp
Fuel
Diesel
Bearing Capacity
Medium
Car Type
Van
Condition
New
Transport Package
Naked, RO-RO, Bulk. Container
Specification
8700mm * 2490mm * 3850mm
Trademark
DONGFENG
Origin
China
HS Code
8705
Production Capacity
500 Units/Month
After-sales Service:
Provided
Warranty:
12 Months
Certification:
ISO9000
Payload:
13t
Emission Standard:
Euro 2
Transmission Type:
Manual

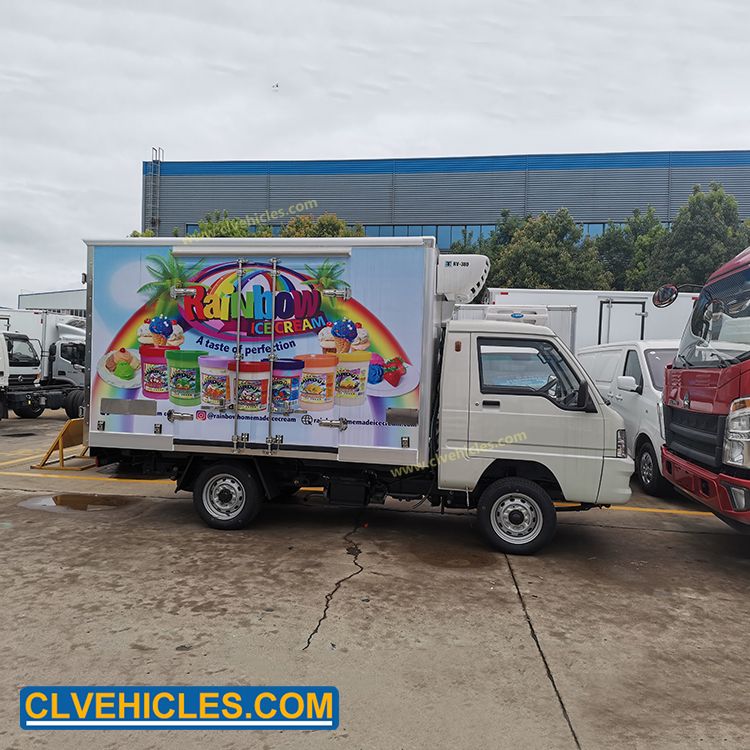

FOTON 4X2 Refrigerated Truck for Icecream Transport
Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.According to the different chassis model, we have mini type,middle-sized,large-scale etc refrigerator trucks for your choice with different brands.
The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.
Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.According to the different chassis model, we have mini type,middle-sized,large-scale etc refrigerator trucks for your choice with different brands.
The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.
It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.
| Chassis Specification | ||
| Chassis model | CLW5130XLCEQ6 | |
| Cab | Dongfeng D530 cab, one and a half row seats, electronic flameout | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 99 | |
| Overall dimension (mm) | 8700 * 2490 * 3850 | |
| GVW (mm) | 16000 | |
| Truck Tare Weight (kg) | 6805 | |
| Wheelbase (mm) | 4700 | |
| F/R track base (mm) | 1940/1860 | |
| F/R overhang (mm) | 1430/2570 | |
| Approach/Departure Angel (°) | 20/8 | |
| Tire | 9.00R20 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Gear box | 5-speed | |
| Bridge | Front axle load-bearing (kg) | 4500 |
| Rear axle load-bearing (kg) | 9000 | |
| Engine | Model | B170 33 |
| Fuel Type | Diesel fuel | |
| Emission Standard | Europe II | |
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |
| Exhaust (ml) | 5900 | |
| Max output power/rotate speed (hp /rpm) | 170/2500 | |
| Braking System | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | engine exhaust brake | |
| Electric system | 24v | |
| Upper-Body Specification | |
| Van box dimension(mm) | 6100 * 2280 * 2300 |
| Material of van box | Glass fiber reinforced plastics (GFRP) |
| Insulation thickness(mm) | 80 |
| Refrigeration units | Korean ND THERMO brand Type: DT-230S |
| Temperature rating in container | -18ºC+25ºC |
| Voltage & Total Current | DC12V(20A) |
| Power | 240W |
| Compressor | SD-5L09(87cc)/SD-5H09(87cc) |
| Refrigerant | R404A 1.2Kg |
| Evaporator Dimension (mm) | 680×594×174 |
| Condenser Dimension (mm) | 905×211×420 |
Competitive Advantage
- The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
- Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.
- The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane.
- Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
- Refrigeration unit: The well-known domestic brand of the refrigeration unit American Carrier or Thermoking overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees.
