Model NO.
CLW5632TX
Bearing Capacity
Medium
Car Type
Van
Condition
New
Material
Fiberglass
Insulating Layer
80mm Polyurethane Foam
Truck Refrigeration Unit
Thermoking, Carrier or Chinese Alternative
Applicable Temperature
-18~0 Degree
Warranty
One Year
Logo
as Per Customer′s Request
Chassis Brand
Dongfeng, Foton, Sinotruk HOWO, Isuzu, Jmc, etc.
Box Material
Fiberglass
Box Size
5900*2450*2500mm
Hydraulic Platform Load
1.5tons
Delivery Time
20 Days
Gearbox
Fast, 5 Forward & 1 Reverse
Thickness
80-100mm
Wheel Base
3308mm
Tire
7.00-16
Transport Package
Naked, Waxed, Bulk Ship, RO-RO
Specification
5995x2420x3180(mm)
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Payload:
3ton, 4ton, 5on
Emission Standard:
Euro 2
Transmission Type:
Manual
Horsepower:
120HP
Fuel:
Diesel
HOWO 4x2 Refrigerator Box Truck 3tons 5tons with Thermo King Units Vegetable Transport Truck 4tons for Meat Fish
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Product Specification
| General Technical Parameters | ||||
| Overall Dimension | 5995×2420×3180(mm) | Gross Vehicle Weight | 4495 (Kg) | |
| Curb Weight | 2805 (Kg) | Loading Weight | 1495(Kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | HOWO | ||
| Cabin | Single, Left Hand Driving, with A/C | |||
| Engine | Model | 4 Cylinders | ||
| Power | 88 KW/120 HP | |||
| Emission standard | EURO II | |||
| Displacement | 2780 ml | |||
| Fuel type | Diesel | |||
| Gearbox | 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 2.5T/4.5T | |||
| Wheel base | 3308(mm) | |||
| Brake System | Oil brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 7.00-16, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 90 (km/h) | |||
| Superstructure | ||||
| Van | Box size | 4150×2300×2100(mm) | ||
| Material | Fiberglass | |||

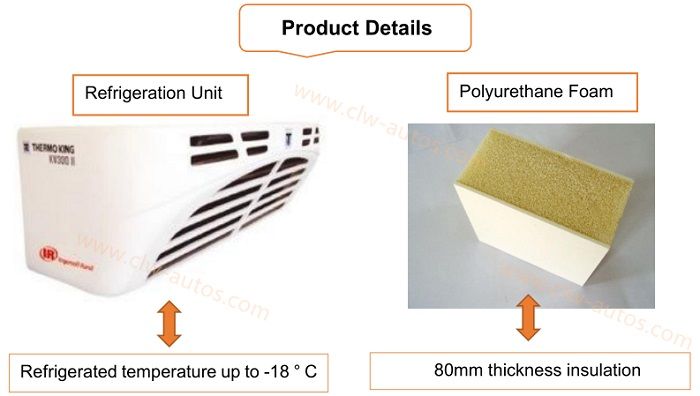

| Insulating Layer | 8cm Polyurethane Foam | |||
| Refrigerator | Brand | Carrier | ||
| Applicable temperature (ºC) | -18~0 | |||
| Remarks | Part Optional: Ventilation slot Hook External power supply Side door | |||
