Model NO.
CLW5078xc
Horsepower
＜150hp
Fuel
Diesel
Bearing Capacity
Small
Car Type
Van
Condition
New
Gearbox
5 Forward & 1 Reverse
Rear Platform
Optional
Box Size
4000*1880*1850 mm
Box Volumen
12.5m3
Material
Fiberglass
Insulating Layer
8cm Polyurethane Foam
Truck Refrigeration Unit
Thermoking, Carrier or Chinese Alternative
Applicable Temperature
-18~0
Delivery Time
25 Days
Transport Package
Bulk Ship, RO-RO, Container
Specification
5995*2090*2950mm
Trademark
CLW
Origin
Suizhou, China
HS Code
87059099
Production Capacity
500 Units Per Month
After-sales Service:
Life Long Service
Warranty:
1 Year
Certification:
ISO9000, CCC, CE
Payload:
3ton,5ton,6ton,etc.
Emission Standard:
Euro 3, Euro 4, Euro 5
Transmission Type:
Manual

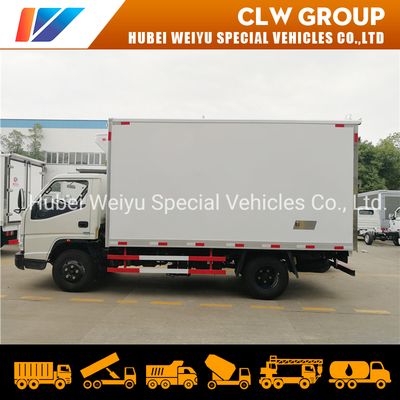

JMC refrigerated truck 4*2 mobile refrigerated van truck ice cream freezer cargo truck
Description:
1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.
Optional Function:
Related Products:
Description:
1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.
| Item No. | Parameters |
| Overall Dimension | 5995*2090*2950(mm) |
| Gross Vehicle Weight | 4495kg |
| Curb Weight | 2850kg |
| Wheel Base | 3300mm |
| Front/rear Tread | 1120/2075mm |
| Approach/Departure Angle | 21/20 degree |
| Gearbox | 6 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance |
| Engine | |
| Engine horsepower | 150HP EURO 2or3 |
| Displacement | 3.3L (Diesel) |
| Max Driving Speed | 90 km/h |
| Cabin | 2 Passengers |
| Tire | 7.50R16, 6pcs + 1 spare tire |
| Carriage Body | |
| Size: | 4000*1880*1850 (mm) |
| Body Material | Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation. |
| Refrigerator | High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree. |
