Model NO.
FY5160XWC
Fuel
Diesel
Tank Volume
6000L
Drive Wheel
4x2
Hoesrpower
150-250hp
Condition
New
Product
Dongfeng 4X2 Vacuum Sewage Suction Truck
Pump Brand
Jurop, Metro, Weilong, Yifeng
Option
with Jetting and Cleaning Pump
Chassis Brand
HOWO, Foton, JAC, Jmc, Dongfeng, FAW
Transport Package
RO RO, Bulk Shipment
Specification
AS NEED
Trademark
FUYA
Origin
Hubei, China
After-sales Service:
72 Hours Reply and Solution
Warranty:
12 Months From The Delivery Date
Certification:
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard:
Euro 2
Payload:
1-10 Tons
Transmission Type:
Manual

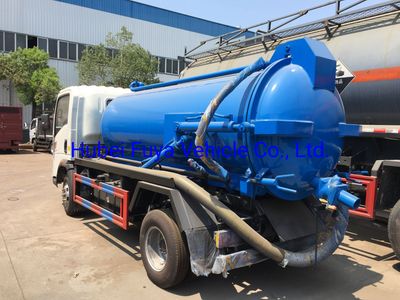

8 cubic meters HOWO Vacuum Dump Tanker Sewage Suction truck
Sewage Suction Truck is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.
Parameter
| Overall Dimension | 7500 x 2500 x 3350mm | ||
| Wheel Base | 4700mm | ||
| Curb Weight | 5500kg | ||
| Payload | 8000kg | ||
| Front axles loading capacity | 1x4000 kg | ||
| Rear axles loading capacity | 1x11000 kg | ||
| Cabin | 2080 cab,with A/C, with three seats, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Engine | Yuchai Diesel Engine YC4E160-33, Euro II, 160HP Watering Cooling, Four Stroke, 4 Cylinder in Line, Direct Injection | ||
| Gearbox | DC6J65TC, 6 forwards & 1 reverse | ||
| Fuel tank | 230 L | ||
| Clutch | Power steering | ||
| Steering Gear | Reinforced diaphragm clutch, diameter 430mm | ||
| Tire | 9.00R20×7, rear axle with double tires, 6 Pieces with 1 Spare | ||
| Brakes | Dual circuit compressed air brake | ||
| Sewage Suction System | |||
| Sewage Tanker | Capacity | 8 cubic meters | |
| Material | Q235 high tension steel, 5mm Tank body and End Plate, | ||
| Dumping System | Middle Tipper | Hydraulic Controlled Rear Door and Middle lifting. | |
| Rear Door | Hydraulic controlled with sewage drain pipe | ||
| Pump | High Efficiency Weilong XD-65 Vacuum Suction Pump | ||
| Pump System | 100mmΦ suction pipe, suction time ≤5min, effective suction range≥8,max vacuum degree ≤15 Kpa, dump angle ≥45 | ||
| Vacuum Pressure | -0.092Mpa | ||
| Sewage Pipe | 5 meters Rubber Pipe (one unit pipe) | ||
| Other Parts | Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device | ||
