Key Features:
---- Brand new chassis, perfect performance for RHD OR LHD
----Famous diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 1 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
I. Details of DongFeng 4x2 6cbm 8L Washing Street Road Cleaning Dust Vacuum Sweeper Truck
(1) Functions:
Steet-sweeping truck DONGFENG ,SINOTRUK FAW, JMC, HOWO, FOTON, SHACMAN ETC (also called road sweeper, brand new street cleaner, road cleaning truck, ISU ZU truck mounted street sweeper, parking lot sweeper, road sweeper manufacturer) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.
FUYA TRUCKS road sweeper truck use whole stainless steel material tanker, Original Italy or America motor for easy operation, Cummins, ISU ZU or JMC auxiliary engine, efficiently avoiding secondary pollution.
The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.
Road sweeper truck (also called road sweeper, Road washer brand new street cleaner, road cleaning truck, ISU ZU truck mounted street sweeper, parking lot sweeper, road sweeper manufacturer vehicle) is designed to collect and transport municipal solid waste from the City road, high speed road or airport road, bridage and squares as well as .
Road sweeper is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination,the garbage can be dumped completely. It is ideal solution for solid waste collection.
The operation system could be manual or electrical control.
II. Technical data of DongFeng 4x2 6cbm 8L Washing Street Road Cleaning Dust Vacuum Sweeper Truck
| SINOTRUK HOWO 8 CBM Road sweeper truck | |
| Item No. | Parameters |
| Overall Dimension | 6700*2480*2730 mm |
| Drive model | 4x2, new condition , LHD |
| Gross weight | 12000 kg |
| Curb Weight | 6570kg |
| Wheel Base | 3800 mm |
| Axle | 2.7 tons front axle/ 7.2 tons rear axle. |
| Engine detail | YUNEI Diesel engine, YN4102QBZL , 116 HP Diesel Engine, Four Stroke, 4 Cylinder in line. |
| Engine Horsepower | 116hp, euro 2 |
| Displacement | 3.612 liters |
| Max driving speed | 90 km/h, limited as road. |
| Gearbox | Manual type, WLY6T, 6Forward gear, 1 backward gear |
| Tyre | 7.00R16, 6Pieces with 1 spare tire |
| Fuel tank | 120 liters |
| Standard equipment | 1 sets of manual tools for truck. |
| Cabin | Sinotruk howo 2080 cabin, with AC, with FM Radio etc. |
| Upper part of the road sweeper truck | |||
| Model of sweeper | vacuum | Make | FUYA brand |
| Tank | Garbage tank | Tank material | Stainless steel 304 |
| Tank volume(cbm) | 6.5 cbm 6500 liters | ||
| Water tank | Tank material | Stainless steel 304 | |
| Tank volume(cbm) | 1.5 cbm 1500 Liters | ||
| Auxiliary engine | Model | ISU ZU Brand | |
| Power(kw) | 64 kw, 87 HP | ||
| Motor | Brand | Imported Italian brand motor | |
| Switch of operation | Brand | Imported French Sch-neider brand switch | |

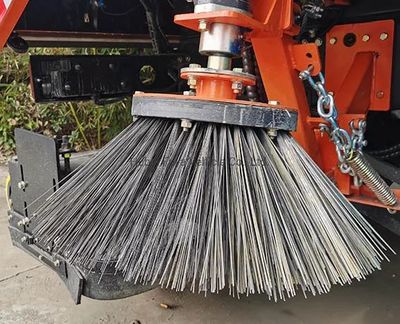

| Brush | Quantity(pc) | 4 pcs | |
| Working area(m) | 3.0-3.5 m | ||
| Diameter of brush | 850 mm | ||
| Operation detail | Working speed | 3-35 km/h | |
| Working width | 3.2-3.5 meters | ||
| Max. Operation ability | 60000 m2/h | ||
| Max. Sucking dimension | 100-120 mm | ||
| Sweeping rate | 95% | ||
| Brush extend dimension | 400 mm | ||
| Hydraulic system | Model | Electrical control type. | |
| Pressure of hydraulic system | 16 Mpa | ||
| Volume of the hydraulic oil tank | 60 L | ||
| Temperature of hydraulic oil | 60° | ||
| Main part | Pump, hydraulic motor, hydraulic cylinder and electromagnetic valve | ||
| Remarks | 1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. 7. Power system: DC 24V | ||
| Option equipment (Not included in quotation price) | Optional Equipment: 1 optional Hopper self-cleaning function 2 optional reversing monitoring function 3 optional front rear sprinkler1.The Vice-engine sweepers no. Fans and other work devices to take power through the chassis engine to drive. 2. Cleaning device with Automatic Collision Avoidance Obstacle protection and automatic reset function(by national patent) 3. "Mid four brush - rear nozzle" structure layout with sweeping wide, clean and efficient features, and facilitate the cleaning device and nozzle adjustment and maintenance. 4.Pneumatic conveying system with digestion and absorption of foreign advanced technology and efficient sweepers dedicated fans and can auto-leveling with the road the whole floating nozzle. 5.Sweeper combined with trocar disc, it can work excellently and can automatically choose work type according to waste condition on the ground and speed of the truck. ; 6.Trash and water tank large, continuous cleaning operation a long time. 7. Left, right front linkage scan can work independently or can choose to use the right front or left front sweeper to work independently. 8.Hydraulic system with superimposed solenoid hydraulic valve, highly integrated, reliable, easy maintenance; 9. Control switch installed in the driver focused interior, all electronic control can be found in cab , Beautiful appearance designed via computer | ||
| Spare List for Chassis | |||
| / | No. of item | Item name | QTY |
| 1 | WG9725190102/103 | Air filter | 3 |
| 2 | VG61000070005 | Oil filter | 3 |
| 3 | VG1560080011 | Fuel filter | 3 |
| 4 | V1500130017 | Belt for airconditioning | 1 |
| 5 | VG2600020258 | V-belt | 1 |
| 6 | VG1069020010 | Cultch plate | 1 |
| 7 | AZ9921161100 | Driven disk | 1 |
| 8 | WG2229210040 | Selector lever assembly | 1 |
| 9 | AZ1642430256 | Bearing assembly | 1 |
| 10 | WG9700240026 | Transmission gear shift lever and gear plate assembly | 1 |
| 11 | WG9725240224 | Selector shaft | 1 |
| 12 | WG9725240246 | Shift shaft assembly(4000) | 1 |
| 13 | WG9725230041 | Clutch booster cylinder | 1 |
| 14 | WG9725471016 | Steering assisted vane pump | 1 |
| Spare List for | ||
| No | Item | Quantity |
| 1 | Brushes | 4 sets |
| 2 | 200mm Suction Pipe | 4unit |
| 3 | Water Filter | 4unit |
| 4 | Van Belt | 4unit |
| 5 | Rear Door Seal | 4unit |
| 6 | Sucker bottom Seal | 4unit |
| 7 | gasket ring | 4unit |
| 8 | Nozzle | 4unit |
| 9 | Sweep disc seal | 4unit |
| 10 | suction plate rim | 4unit |
(1) More than 12 years professional manufacturer experience.
(2) CCC ISO9001 agreement
(3) Be designed according to your requirements
(4) Small order can be accepted
(5) We accept 100% inspection, welcome to our factory at any time
(6) 12 month quality guarantee term
We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, I SU ZU, JMC, JAC with 3m3 to 20m3 garbage compactor trucks.
III. Details of Road sweeper truck
IV. Production workshop
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and production manager.
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VI. COMPANY INFO
HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
Five characteristic:
1) High pressure dredging: large flow of high pressure water to burst through the blocked pipe, and flush the sludge to the mouth of the well. Using different nozzles can solve corresponding dredging problem in different working situation. Visible nozzle can test pipe while dredging.
2) Vacuum suction: roots vacuum pump with strong suction ability, suction hose can be put into the bottom of the well to suck the sludge. Suction is above 15m.
3) Sludge recycling: introduce from Europe new purification technology to purify sludge, then us purified water to dredge pipe, thus save energy, save time, enhance the working efficiency.
4) Separate mud from water: traditional combi jetting truck dewater the sludge by means of rosebox, this truck adopts screw extrusion of mud water separation device to separate mud from water, which has two advantages:reuse the water and save the space of sludge discharging.
5) Screw discharge: use advanced screw discharge, dewatered sludge can be transported by low cost sewage truck.
Six advantages:
1) high quality sewer hose.
2) servo sewer hose reel, servo close control.
3) Titanium ceramic nozzle, patent high pressure jetting technology, cleaning nozzle.
4) Conroller Area Network, intelligent control, 32 humanization design.
5) Stainless steel shell.
6) Dredging, suction, sewage recycling and screw extrusion can be operated simultaneously.
Company Information
ClW Heavy Industry Co., Ltd which is appointed by Ministry of Industry and Information Technology of China, is a manufacturer producing all kinds of special trucks and semi-trailer.
We serve the best service for each client.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria, Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our Factory Is Getting Better And Better.
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
