Model NO.
CLW5113GB
Use
Stainless Steel
Cleaning Process
Cold Water Cleaning
Condition
New
Chassis Brand
Dongfeng, Isuzu, Foton, Jmc, etc.
Water Tank Volume
4m3
Garbage Tank Volume
5m3
Water Tank Thickness
3mm
Garbage Tank Thickness
3mm
Water Tank Material
Stainless Steel
Garbage Tank Material
Stainless Steel
Sweeping Width
3.2m
Working Speed
3-20km/H
Max. Working Area
56000m2/H
Warranty
1 Year
Delivery Time
30 Days
Color and Logo
Customized
Transport Package
Naked, RO-RO, Bulk
Specification
7000*2200*2700mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8701909000
Production Capacity
500units/Mouth
Type:
Sweep and Suck Type
Certification:
ISO9000, CCC, EPA, EEC
Transmission Type:
Manual
Emission Standard:
Euro3, Euro4, Euro5
Fuel:
Diesel
Payload:
3ton,4ton,5ton,etc.

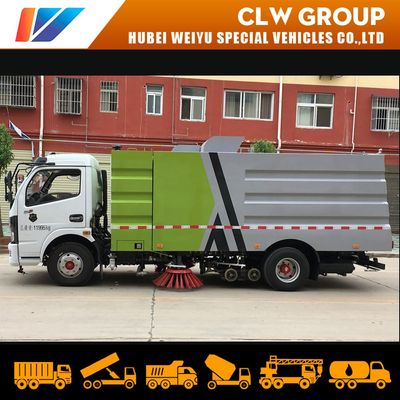

Dongfeng 9m3/9cbm/9000litres Road Sweeper Truck with 4m3 Water Tank 5m3 Garbage Tank
Description:
Other related products:
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Description:
1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.
2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".
| Dimension(mm) | 7000*2200*2700 | |
| Manufacture | CLW GROUP | |
| Cab | Single | |
| Engine | ||
| Fuel | diesel | |
| Quantity of cylinder | 4 | |
| Horse Power(kW) | 198 | |
| Air Displacement(ml) | 4000 | |
| Emission | EURO III/IV/V | |
| Driving Type | 4x2 | |
| Steering Wheel | left hand driving | |
| Gear-box | 6 | |
| Brake Type | Oil | |
| Quantity of Axle | 2 | |
| Wheel Base(mm) | 3800 | |
| Tyre | 8.25R20 | |
| Sweeping Width (m) | 3.2 | |
| Water Tank Volume(L) | 4000 | |
| Garbage Tank Volume(L) | 5000 | |
| Working Speed(km/h) | 3~20 | |
| Maximum Working Area(m2/h) | 56000 | |
| Sweeping Efficiency | ≥95% | |
| Working Condition | 1,Relative humidity: 80% 2,Wind force: ≤8 degree | |
