Model NO.
CLW5158BQ
Use
Stainless Steel
Cleaning Process
Cold Water Cleaning
Condition
New
Chassis Brand
Dongfeng, Isuzu, Foton, Jmc, etc.
Water Tank Volume
8m3
Garbage Tank Volume
7m3
Water Tank Thickness
4mm
Garbage Tank Thickness
4mm
Water Tank Material
Stainless Steel
Garbage Tank Material
Stainless Steel
Max. Working Area
70000m2/H
Sweeping Width
3.5m
Working Speed
3-20km/H
Delivery Time
30 Days
Warranty
1 Year
Color and Logo
Customized
Transport Package
Naked, RO-RO, Bulk
Specification
8280*2490*3100mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8701909000
Production Capacity
500units/Mouth
Type:
Sweep and Suck Type
Certification:
ISO9000, CCC, EPA, EEC
Transmission Type:
Manual
Emission Standard:
Euro3, Euro4, Euro5
Fuel:
Diesel
Payload:
3ton,4ton,6ton,8ton,etc.

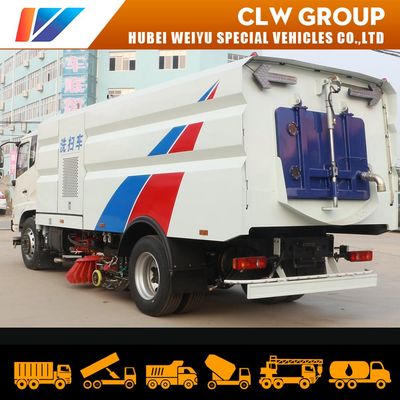

Dongfeng 8tons Stainless Steel Large Sweeper Truck Road Cleaner From China
Description:
Other related products:
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Description:
1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.
2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".
| Truck parameter | ||
| Company name | CLW GROUP | |
| Vechicle size | (mm) | 8280×2490×3100 |
| A/D angle | ° | 19/12 |
| F/R overhang | (mm) | 1032/1638 |
| Max speed | (km/h) | 90 |
| Axles | pcs | 2 |
| Wheelbase | mm | 5000 |
| Steel spring NO | / | 8/9+5 |
| Tyre NO | pcs | 7 |
| Tyre size | / | 9.00R20 |
| Front tread | mm | 1506 |
| Rear tread | mm | 1466 |
| Engine | Model | ISB180 40 |
| Power | 70kw/95HP | |
| Fuel | Diesel | |
| Auxillary engine | Model | JX493 |
| power | 180HP | |
| Special Function | ||
| Maximum cleaning width | (m) | 3.5M |
| Maximum cleaning capacity | m2/h | 70000 |
| Sweep speed | (km / h) | 3-20 |
