Model NO.
JSXT5180TXSD3
Fuel
Diesel
Drive Wheel
4×2
Engine Capacity
＜4L
Condition
New
Emission Standards
Euro 2/3/4/5
Tank Material
Stainless 304/ Carbon Steel
Water Pump
80qz60/90
Wave Breaker
2
Transport Package
Normal Package
Specification
Total mass: 18000kg
Trademark
JUSHIXIN
Origin
China
Production Capacity
200units /Month
Volume:
5001 - 10000L
Certification:
ISO9000, CCC, CE
Emission Standard:
Euro 3
Sprinkling Area:
8 - 12m
Transmission Type:
Manual
Payload:
6-10 Ton

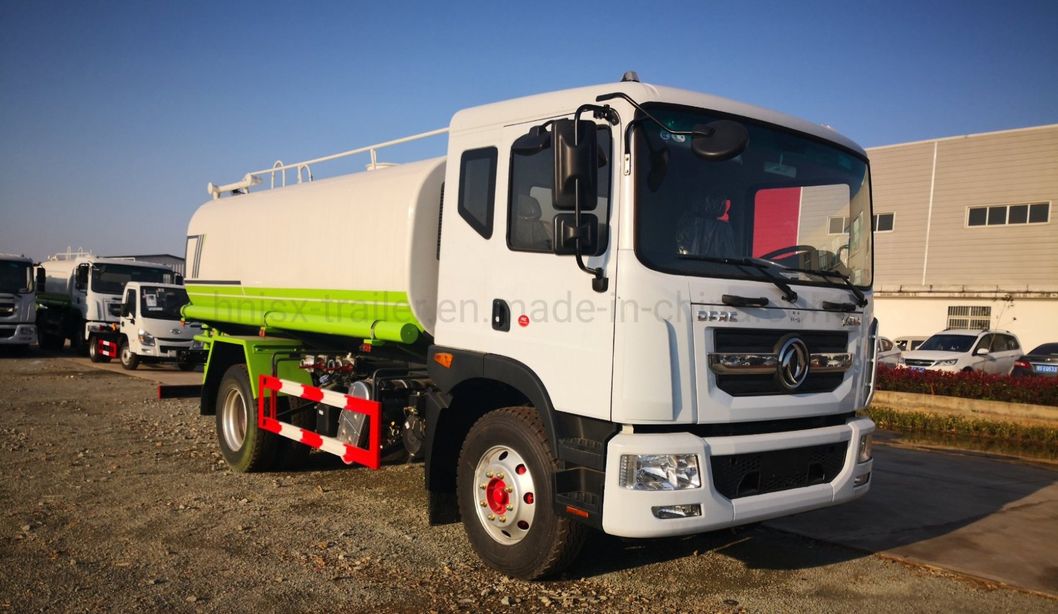

China factory price 6 ton cummins water spray bowser fuel tanker sprinkler tank truck with pump
The sprinkler truck is also called a sprinkler truck, a multifunctional sprinkler truck, a garden sprinkler truck, a water tanker truck, and a water truck. Futian sprinkler is suitable for various road washing, greening of trees and lawns, construction of roads, factories and mines, and high-altitude building washing. With water transport, drainage, emergency fire protection, water spraying, dust suppression, high and low spraying, pesticide spraying, guardrail washing and other functions.
Production of tank body for sprinkler truck: The production process of the tank body is divided into the following: domestic advanced production processes such as blanking, automatic welding of splicing plates, spin forming of the head, and one-time roll forming of the tank body. Tank materials are mostly produced using high-quality carbon steel plates. For special applications, 304 stainless steel can also be used according to customer needs. Tank volume is "3 cubic, 5 cubic, 8 cubic, 10 cubic, 12 cubic, 15 cubic, 20 cubic" and so on. Piping system: from "pipes, valves, filtering devices, water outlets (front flush, rear spray, side spray; high side shower; rear working platform with green sprinkler anti-aircraft gun).
Parameters:
| Cab | Dongfeng Cab;Reversible cab with AC | ||
| Engine (PS) | 95HP | ||
| Warranty | 12 months | ||
| Production cycle | 1 unit (30 days) | ||
| Dimensions (mm) | 6000×2000×2650 | ||
| Internal dimensions | 3800×1700×1150 | ||
| Kurb weight (kg) | 4500 | ||
| Load (kg) | 6000 | ||
| Front axle | 2.5 ton axle | ||
| Rear axle | 5 ton Axle | ||
| Gearbox | Dongfeng 5-speed gearbox | ||
| Vehicle frame | Through reinforced girder | ||
| Tires | 8.25R16 steel tires 6pcs with 1 spare tires | ||
| suspension | Front: 1055, Rear: 1645 mm | ||
| Departure corner | front 27; rear 13 | ||
| suspension | Leaf spring 6/ 6 + 5 | ||
| Number of axles | 2 | ||
| Wheelbase (mm) | 3300 | ||
| Number of tires | 6 | ||
| Tread (mm) | 1525/1500 | ||
| Tire specifications | 8.25R16 | ||
| Engine | 4100QBZL Yunei 95HP motor | ||
| Emission Standards | Euro 2 | ||
| Driving form | Steering Wheel / LHD | ||
| Brake | Liquid / air brake | ||
| Braking System | Air brake | ||
| Fuel tank capacity | 85L | ||
| Voltage | 24v | ||
| Spare tire frame | Have | ||
| Light | Have | ||
| Toolbox | Have | ||
| Tank material | 304L/4mm | ||
| Tank insulation | Have | ||
| Water Pump | YF80QZ60/90 Flow rate: 60 cubic meters per hour, spraying: 90 m. | ||
| forward rush | Have | ||
| post-sprinkle | Have, water pipe: 3m length, 2 pieces. Standard DN60 ball valvas. 2 sets. The outlet and inlet ports and ball valves are stainless steel. | ||
| Side spraying | Have | ||
| Shower | Have | ||
| High gun spraying | Yes (foggy, hairy, adjustable water column) | ||
| Firefighting connector | Have | ||
| Filter | 2 sets: diesel filter, oil filter, air filter, water tank pipe filter | ||
| Front flush and rear sprinkler nozzle | 2 unit | ||
| Wave board | 1 PCS | ||
| Tank mouth | 1 unit | ||
| Manhole | Have/DN500MM | ||
| Fire connector | Have | ||
Details display:
Certificate and Visiting
Packing and shipping :
More Related:
FAQ:
1.Payment term: 100%T/T (L/C need to negotiate)
100%T/T, 30% deposit for production, pay the balance 70% before the shipment.
2. Warranty : 12 months
1) Main beam for 2 years
2) Axle and other conditions for 1 year
3) No warranty for consumable parts, but we will send you free consumable parts, on-board tools, wires, lamps, etc. before the shipment.
4) Free consultation service for life.
5) Technical repair and guidance questions, engineers can come to service
3.Delivery time: 15 -35 working days
Check if the product is in stock or sufficient raw materials
Normal quantity order delivery time is 15 working days
Big project need to check request delivery time and delivery details required
4.Services
4.Services
Welcome to visit our factory at any time
Order confirmation, drawing confirmation, details and requirements confirmation.
Production photos and videos are updated to customers every week
24 hours online for consult
24 hours online for consult
Provide support for post-parts demand, factory price direct delivery.
5. LOGO & Color:
factory recommend or as your request.
6.Quality control:
5. LOGO & Color:
factory recommend or as your request.
6.Quality control:
Our welding workers who have international welding certificate with good technically.We have QA&QC control in each production link, and will continue production after passing the inspection.
Various production line processes.Welcome consult recent best offer !
