Model NO.
ZZ1317N4667W
Fuel
Diesel
Drive Wheel
8X4
Engine Capacity
＞8L
Condition
New
Material
Q235/Q345
ABS
Optional
Brand
HOWO
Color
Red, Yellow, Blue
Drive Type
Left or Righ Hand Drive
Tank Volume
30000liters
Horse Power
371HP
Transport Package
Nude
Specification
8x4
Trademark
SINOTRUK
Origin
Jinan China
HS Code
7654219
Production Capacity
1000PCS/Ear
Volume:
15001 - 30000L
Certification:
ISO9000, CCC, CE
Emission Standard:
Euro 2
Sprinkling Area:
＞16m
Transmission Type:
Manual
Payload:
30T

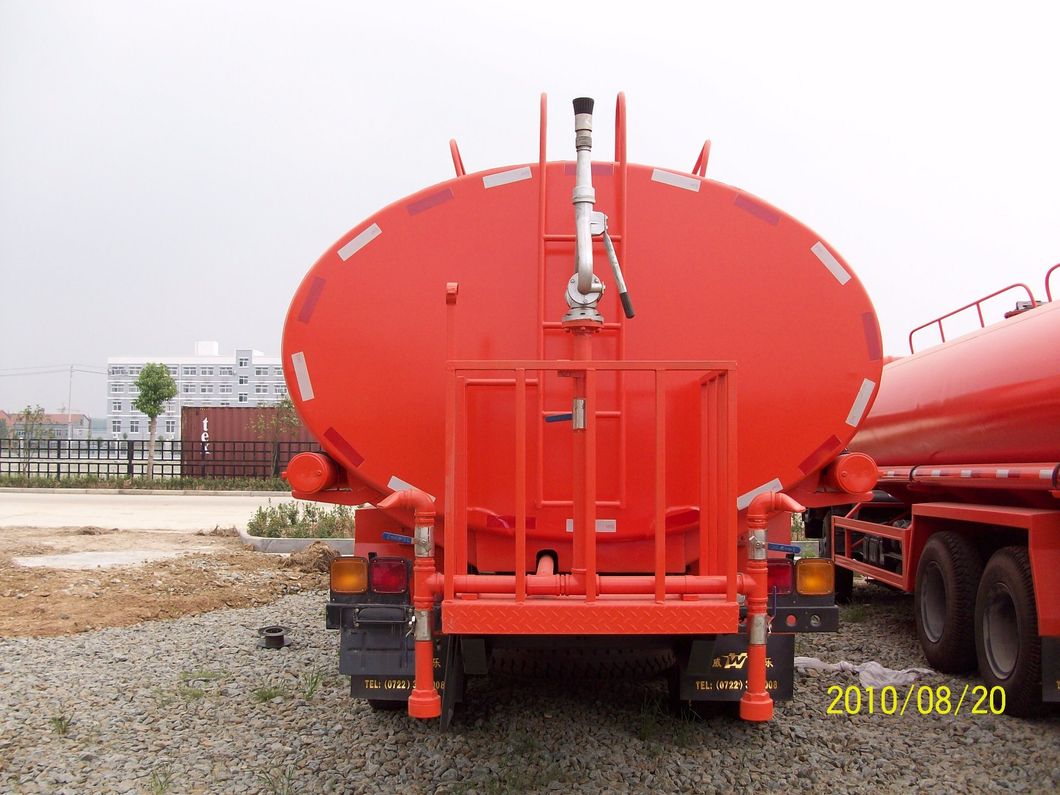

Sinotruk HOWO water sprinker tank truck (30 000liters)
Driving model: 8x4
Engine: 336hp; 371hp; 420hp
Gear box: Manual Transmission with 10 forwards and 2 reverse
Tire: 12R22.5 Tubless tire; 12.00R20 radial tire
Material: Carbon steel Q235, Aluminius Alloy 5083; stainless steel 304
Payload: 8x4 Payload: 45000kg
Other Tanker volume: 6 cbm - 40 cbm
Below is the spec. of HOWO 8X4 30,000liters water tank truck
1. Electrical automatic control, no need to get on and off, start and close operation, convenient
2. Front spray: there are 2 sprinklers at the front, which can be adjusted from front to rear, up and down, and the road is washed. The width is 5-10 meters.
3. After watering: there is a cylindrical sprinkler at the back, sprinkling and dust, covering the width of 14-18 meters
Antiaircraft gun: located on the operating platform, you can move in all directions, spray tall trees, emergency fire, the range of 30-40 meters
Advantages:
Driving model: 8x4
Engine: 336hp; 371hp; 420hp
Gear box: Manual Transmission with 10 forwards and 2 reverse
Tire: 12R22.5 Tubless tire; 12.00R20 radial tire
Material: Carbon steel Q235, Aluminius Alloy 5083; stainless steel 304
Payload: 8x4 Payload: 45000kg
Other Tanker volume: 6 cbm - 40 cbm
Below is the spec. of HOWO 8X4 30,000liters water tank truck
1. Electrical automatic control, no need to get on and off, start and close operation, convenient
2. Front spray: there are 2 sprinklers at the front, which can be adjusted from front to rear, up and down, and the road is washed. The width is 5-10 meters.
3. After watering: there is a cylindrical sprinkler at the back, sprinkling and dust, covering the width of 14-18 meters
Antiaircraft gun: located on the operating platform, you can move in all directions, spray tall trees, emergency fire, the range of 30-40 meters
| Cabin | Driving type 8x4 LHD | |
| HW76 cab, with one bed and air condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11500×2500×3500 |
| Wheel base (mm) | 1800+4600+1350 | |
| Wheel track (front/rear) (mm) | 2020/1830 | |
| Weight in KGS | Tare Weight | 15000 |
| payload | 40000 | |
| Front axles loading capacity | 2x7000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | SINOTRUK |
| Model | WD615. 69 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charged and inter-cooled | |
| Horse Power(HP) | 336 HP | |
| Emission standard | Euro 2 | |
| Gearbox | Hw19710, 10-speed forward and 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering | ZF8098,power steering, hydraulic steering with power assistance | |
| Oil tank | 400 liters | |
| Tire | 12R22.5 tubeless tyre 13 PCS including one spare tire | |
| Tank specifications | Volume: 30,000 liters | |
| Tank Material | Q235. End plate thickness:6mm, tanker body thickness:5mm2 | |
Advantages:
1) Factory price, more competitive than agent price
( We, SINOTRUK Hubei Huawin is SINOTRUK branch factory)
( We, SINOTRUK Hubei Huawin is SINOTRUK branch factory)
2) Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3) Warranty: One year or 100 000k which comes to the first for the engine, gear box and axles. In Tanzania and Kenya, we have our local agents, in other countries we go to business trips about 5 times per year to solve your problem ASAP.
4) After-sales: Professional after-sales team sovle your difficult or special questions within 2 working days or 5 working days, and all spare parts are available for your urgent use.
5) Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly
Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer etc.
In 1983, SINOTRUK successfully introduced STEYR heavy duty truck project, in 2009, SINOTRUK signed an agreement with MAN from Germany, MAN becomes the second largest shareholder of SINOTRUK and is introducing its cabin, engine, axle and other parts into China
Fatory Photo:
Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer etc.
In 1983, SINOTRUK successfully introduced STEYR heavy duty truck project, in 2009, SINOTRUK signed an agreement with MAN from Germany, MAN becomes the second largest shareholder of SINOTRUK and is introducing its cabin, engine, axle and other parts into China
Fatory Photo:
