Model NO.
CLW50796
Brand
SHACMAN
Condition
New
Gearbox
5 Forward & 1 Reverse
Tire
7.00r16
Max. Loading Weight
4000kg
Flatbed Dimension
4200*2320mm
Winch Rating Pulling Capacity
4000kg
Hydraulic Tailgate
1200mm
Wire Rope
25 Meters
Warranty
One Year
Logo
as Per Customer′s Request
Transport Package
Naked, Waxed, Bulk Ship, RO-RO
Specification
6000x2500x3300 mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500unit Per Month
Certification:
ISO9000, CCC, TS16949, EPA, EEC, CE
Emission Standard:
Euro2 Euro3 Euro4 Euro5
Transmission Type:
Manual
Towing Tonnage:
3T
Fuel:
Diesel
Bearing Capacity:
Medium

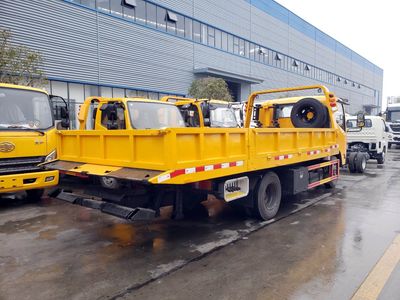

Jmc 3tons 4tons New Light Duty Wrecker Recovery Tow Truck for Rescue
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Product Description:
1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
| General Technical Parameters | |||
| Overall Dimension | 5995x2300x2250 (mm) | ||
| Gross Vehicle Weight | 4495kg | ||
| Curb Weight | 3800kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | JAC | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 4 Cylinders | |
| Power | 88 KW/120HP | ||
| Emission Standard | EURO II | ||
| Displacement | 2771ML | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 3T/6T | ||
| Wheel Base | 3308(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 4200x2320 (mm) | |
| Max. Loading Weight | 4000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 4000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars | ||
