Model NO.
CLW5120QZZ5
Bearing Capacity
Medium
Brand
Clw
Condition
New
Drive Type
LHD Rhd
Dimensions
9140*2480*2760 (mm)
Wheelbase
4700mm
Housepower
170HP
Gvw
12495
Tire
10.00-20
Chassis Brand
Jmc, JAC, HOWO, Dongfeng, Foton
Truck Name
Flatbed Wrecker Truck Mounted Crane
Truck Type
Rollback Tow Truck
Vehicle Name
Crane Wrecker Truck
Transport Package
Bulk with Wax Covered or Container
Specification
5T tow truck
Trademark
CLW
Origin
Hubei, China
Production Capacity
500units/Month
After-sales Service:
One Year
Certification:
ISO9000, CCC
Emission Standard:
Euro 3
Transmission Type:
Manual
Towing Tonnage:
6t
Fuel:
Diesel

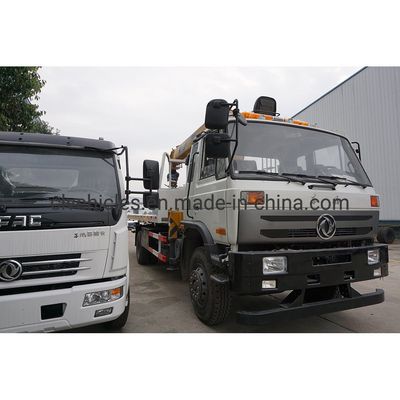

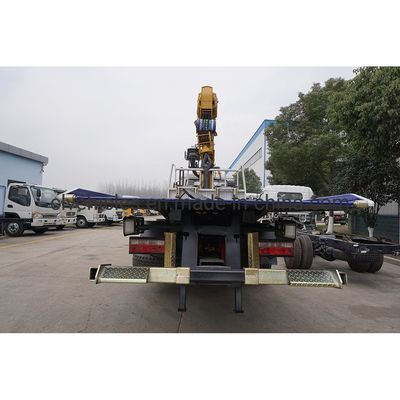

DONGFENG emergency vehicle road rescue truck Towing lifting flatbed wrecker with mounted crane
Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers,
rotator tow truck, towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator
wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back
load and transport.
2. Application: Widely used in road, airports, docks, auto repair company, industry and highway
departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Product Parameters
| Truck Specification | |||
| Chassis model | CLW5122TQZD5 | ||
| Cab | Dongfeng cab with sleeper, with power steering. Electronic flameout, with A/C | ||
| Driving Type | Right hand drive | ||
| Max Speed (km/h) | 98 | ||
| Overall dimension(mm) | 9140×2480×3700 (mm) | ||
| Mass in working order( kg) | 10000 | ||
| GVW( kg) | 12495 | ||
| Wheelbase(mm) | 4700 | ||
| F/R track base (mm) | 1900/1860 | ||
| F/R overhang (mm) | 1440/2390 | ||
| Approach/Departure Angel | 20/10 | ||
| Tire | 9.00-20 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Bridge | Front axle | 3.6T | |
| Rear axle | 9T | ||
| Engine | Model | B170 33 | |
| Horse power | 170HP | ||
| Displacement | 5900 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Eletric system | 24v | ||
| Flatbed specification | |||
| Dims of flatbed | 6000*2300*5 | ||
| Rated. Lifting weight(kg) | 6000 | ||
| Winch function | |||
| Quantity (set) | 1 | ||
| Max. Pulling power of winch(kgs) | 6000 | ||
| Length of steel cable(m) | 25 | ||
| Speed of winch (m/min) | 8 | ||
| Max. Loading of platform(kgs) | 6000 | ||
| Material platform | Q235 Carbon steel | ||
| Crane specification 6.3tons | |||
| Model | SQ5SA2 | ||
| Assembling space (mm) | 900 | ||
| Max lifting weight (t) | 5 | ||
| Max lifting height (m) | 10.6 | ||
| Max working radius (m) | 8.6 | ||
| Cross section form | Pentagon | ||
| Number of arms | 3 | ||
| Slewing mechanism | Rotating speed (r/min) | 2 | |
| Rotating range (°) | 360 | ||
| Leg | Type | Hydraulic | |
| Span(m) | 5.1 | ||
| Safety device | Overwind alarm | ||
