Model NO.
CLW5211K9RLM
Brand
Dongfeng
Condition
New
Winch Rating Pulling Capacity
16000kg
Length of Steel Cable
35m
Hydraulic System
Chinese/ International Brand
Hydraulic Operating Lever
Double Side Operation
Engine
310HP
Gearbox
9 Forward & 1 Reverse
Tire
Steel Tire
Warranty
1 Year
Delivery Time
30 Days
Transport Package
Bulk, RO-RO, Container
Specification
9345*2500*3200mm
Trademark
CLW
Origin
Suizhou, China
HS Code
87059099
Production Capacity
500unit Per Month
Certification:
ISO9000, CCC, CE
Emission Standard:
Euro3, Euro4, Euro5
Transmission Type:
Manual
Towing Tonnage:
8ton,10ton,12ton,16ton
Fuel:
Diesel
Bearing Capacity:
8ton,10ton,12ton, etc

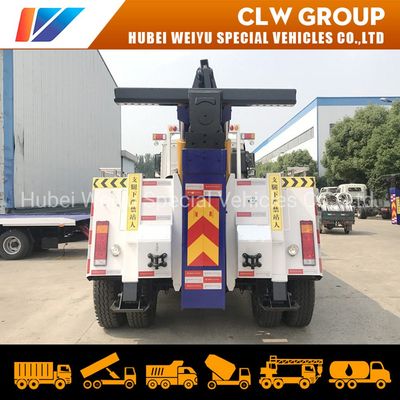

Shancman 30tons Recovery Truck 310hp Diesel Engine Towing Truck Road Wrecker
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Product Description:
1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
| Truck Specification | |||
| Truck model | CLW | ||
| Cab | Row and half cab, with power steering. with A/C | ||
| Driving Type | Left hand drive | ||
| Max Speed (km/h) | 99 | ||
| Overall dimension(mm) | 9345*2500*3200 (mm) | ||
| GVW( kg) | 19000 | ||
| Wheelbase(mm) | 6000 | ||
| F/R track base (mm) | 1503/1494 | ||
| F/R overhang (mm) | 1040/1142 | ||
| Approach/Departure Angel | 20/9 | ||
| Tire | 10.00R20 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 9-speed | ||
| Bridge | Front axle | 7T | |
| Rear axle | 13T | ||
| Engine | Model | WP10.310E53 | |
| Horse power | 310hp | ||
| Displacement | 9726 | ||
| Braking system | Service Brake | Air brake | |
| Park Brake | Spring energy | ||
| Eletric system | 24v | ||
| Winch specification | 8000kg*2 | ||
Wire rope | 35m | ||
ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
