Breakdown Vehicle Trucks Recovery Transporter Sinotruck Howo 30Ton/40Ton 8x4 Heavy Underlift Towing Truck
Product Description:
1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. Fifth wheel attachment is optional for towing trailers as follows
Specification of Sinotruck Heavy Duty Tow Truck
| CHASSIS | |||||
| Cabin | HW76 standard cabin,Right or left hand drive,with air conditioner,allowed for 2~3 persons | ||||
| No load(kg) | Curb Weight | 13070 | |||
| Front axle | 7000*2 | ||||
| Rear axle | 18000*2 | ||||
| Full load | Max. Overall Weight | 31000 | |||
| Overall Dimensions(mm) | Length | 11430 | |||
| Width | 2500 | ||||
| Height | 3270 | ||||
| Wheel base(mm) | 1800+4600+1350 | ||||
| Track(mm) | 2022/1830 | ||||
| F/R Suspension(mm) | 1500/2200 | ||||
| A/D Angle(°) | 16/18 | ||||
| Driving Model | 8X4 | ||||
| Tyre | 12R22.5 | ||||
| Max. Speed(km/h) | 105 | ||||
| Max. Grade-ability(%) | 30 | ||||
| Min. Turning Diameter(m) | 22.6 | ||||
| Min. Ground clearance(mm) | 310 | ||||
| Engine | Model | WD615.47 | |||
| Horsepower(HP) | 371 | ||||
| Displacement(mL) | 9726 | ||||
| Transmission | HW19710,10 forwards&2 reverses | ||||
| WRECKER EQUIPMENT | |||||
| Max. Towing Weight(kg) | 43000 | ||||
| Lifting System | Max. Lifting Weight(kg) | 25000 | |||
| Max. Lifting Weight under all extension(kg) | 8300 | ||||
| Effective Length of Corbeling Arm(mm) | 3650 | ||||
| Extend-retract of Corbeling Arm(mm) | 1750 | ||||
| Slope Angle of Corbeling Arm(°) | 7 | ||||
| Folding angle under no load(°) | -7~92 | ||||
| Folding angle under load(°) | -7~16 | ||||
| Max. Ground Distance(mm) | ≮900 | ||||
| Landing Strength(KN) | 80*2 | ||||
| Hydraulic Hose | Tianhe,Guangdong Province | ||||
| Hydraulic Joint | Germany technology and exported Sealing rings | ||||
| Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
| Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
| Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||

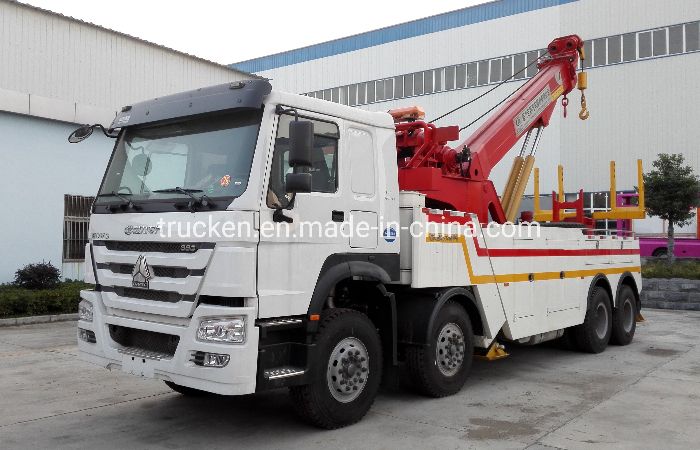

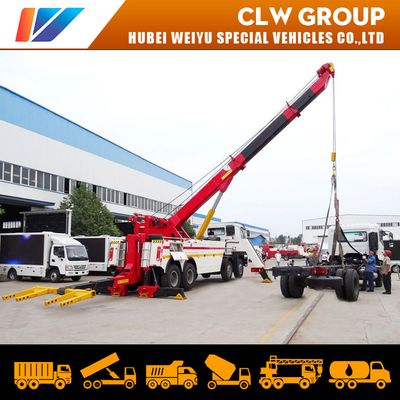

Truck Photos
Flatbed Wrecker Tow Truck
Factory Overview
Overseas Exhibition and Local Support
Customer Visiting
Contact Eric for more details (+86 186 0715 8551)
