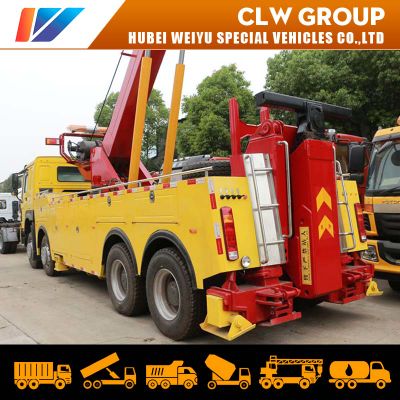

Snotruk HOWO 20Ton 30Ton 360 Degree Rotating Towing Crane Wrecker Heavy Duty Truck Mounted Crane
Product Description:
Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks wreckers, rotator tow truck, towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.
1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.
2. Application: Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
| General Technical Parameters | |||
| Overall Dimension | 113800x2550x3250(mm) | ||
| Gross Vehicle Weight | 31000 kg | ||
| Curb Weight | 21900 kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | HOWO | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 6 Cylinders | |
| Power | 257 KW/350HP | ||
| Emission Standard | EURO III | ||
| Displacement | 11120 ml | ||
| Fuel Type | Diesel | ||
| Gearbox | 12 Forward & 2 Reverse Gear | ||
| Front and Rear Axle Load | 5.5T/ 13T | ||
| Wheel Base | 2050+4400+1400(mm) | ||
| Overhang( Front/Rear) | 2036/1860(mm) | ||
| Angle(Approach/departure) | 18/20(°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 11.00R20, 12 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Winch | Quantity | 2pc | |
| Winch Rating Pulling Capacity | 10000 (kg) | ||
| Length of Steel Cable | 45 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 25000 (kg) | |
| Rating Under-Hoisting Capacity | 25000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 6000 (kg) | ||
| Max Under-Hoist Useful Length | 1200 (mm) | ||
| Remarks | 1. Equiped with locking tire device 2. Bundle chain 2pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 1 Car | ||
