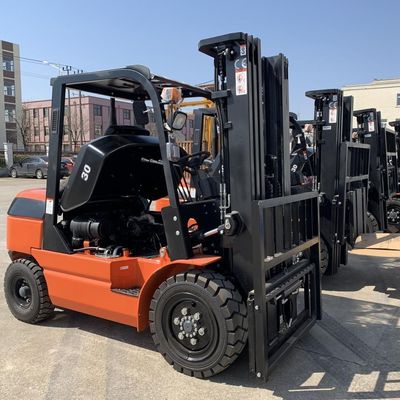

Gp Diesel Power 2ton 3ton 4ton 5ton 7ton 10ton 25ton 3m 4.5m 6m Triplex Mast Fork Lifter Forklift Truck for 2500kg Capacity (CPCD15-CPCD100), Forklift, Fork Lift

Product detail

Model NO.

CPCD25

Diesel Forklift

Power

Diesel Engine

Load Capacity

1T - 5T

Diesel

Load center

500mm

Lift height

3000~5000mm

Condition

Fork Size

1070*122*40mm

Weight

3770kg

Wheel Base

1600mm

Free Lift Height

140mm

Engine

Optional

Tire Type

pneumatic

Color

Orange, Red, Yellow

Transport Package

nude packing

Specification

2583*1150*2070mm

Trademark

Origin

Shanghai, China

HS Code

8427209000

Production Capacity

500 units / month

After-sales Service:

Online Videos

Warranty:

1 Years

Cab Location:

Adjustable

Forkllift, diesel forklift trucks CPCD25

1.Japanese TCM technology
2.Load capacity 2.5 tons
3.VM300( two stage mast, lifting height 3.0m)
4.Forklength 1070mm
5.With Chinese famous Xinchang diesel engine or Japanese famous ISUZU diesel engine
6.Hydraulic transmission (same supplier as TCM)
7.Pneumatic tyres;
8.Diferent colors are available.

General		Manufacturer				GP
	1	Model				CPCD20	CPCD25	CPCD30	CPCD35
						CPC20	CPC25	CPC30	CPC35
	2	Rated capacity			kg	2000	2500	3000	3500
	3	Load center			mm	500
	4	Gearbox change speed type				Hydraulic/Mechanical
	5	Power type				Diesel
	6	Tire type		Front/Rear		Pneumatic
	7	Wheels		Front/Rear		2*2/2
Dimensions	8	Lift height			mm	3000
	9	Free lift height			mm	140		145	150
	10	Fork size		LWT	mm	92012240	107012240	107012545	107013045
	11	Mast tilt angle		Fwd/Bwd	deg	6/12
	12	Overall length (without fork)			mm	2513	2583	2698	2725
	13	Overall width			mm	1150		1225	1225
	14	Mast height fork lowered			mm	1995		2070	2160
	15	Overall height fork raised			mm	4030		4250	3290
	16	Overall height (overhead guard)			mm	2070		2090
	17	Turning radius (outside)			mm	2170	2240	2400	2450
	18	Load distance (centerline of front axle to front face of forks)			mm	483		498
	19	Minimum Aisle -90 degree stack(Add load length and clearance)			mm	2640	2710	2885
	20	Wheel base			mm	1600		1700
	21	Tread		Front	mm	970		1000
	22			Rear	mm	970
	23	Min. Under-clearance		Bottom of mast	mm	110		135	145
	24			Bottom of frame	mm	115		140	140
Performance	25	Speed	Travel Max.	With load	km/h	17		18
	26			Without load	km/h	19.5		19.5
	27		Lifting	With load	km/h	570		450	380
	28			Without load	km/h	600		500	450
	29		Lowering	With load	km/h	450			420
	30			Without load	km/h	550		500	460
	31	Max. Drawbar pull		With/without load	kg	1250/850	1250/850	1100/1000	1304/1190
	32					1650/850	1650/850	1350/1000	1696/1190
	33	Max.Gradeability		With/without load	% (fan)	20/20	17/18	15/18	15/18
						21/22	18/19	19/20	15/18
Weight	34	Service weight			kg	3410	3770	4370	4750
	35	Weight distribution	With load	Front	kg	4730	5480	6455	7320
	36			Rear	kg	590	700	825	930
	37		Without load	Front	kg	1520	1465	1720	2040
	38			Rear	kg	1800	2215	2560	2710
Tyre	39	Tyre	Size	Front		7.00-12-12PR		28*9-15-12PR
	40			Rear		6.00-9-10PR		6.50-10-10PR
Brake	41	Brake	Service			Hydraulic-Foot pedal
	42		Parking			Mechanical-Hand lever
Transmission	43	Battery	Voltage / Capacity		V/AH	12/100
	44	Internal combustion engine	Model			ISUZU / YANMAR / NISSAN / XINCAI
	45		Rated horsepower		Kw/rpm	37/2650			45/2550
	46		Rated torque		N.m/rpm	148/1800			195/1600
	47		Number of cylinder			4
	48		Displacement		cc	2.54			3.168
	49		Fuel tank capacity		lit	60			70
	50	Transmission	Type			Hydraulic/Mechanical
	51		Shift (Fwd/Rvs)			1/1 (2/2)
	52	Work pressure			Mpa	17.5
