XCMG Official Load 23 Tons Lifting Hydraulic Stacker Telescopic Handler Forklift Telehandler

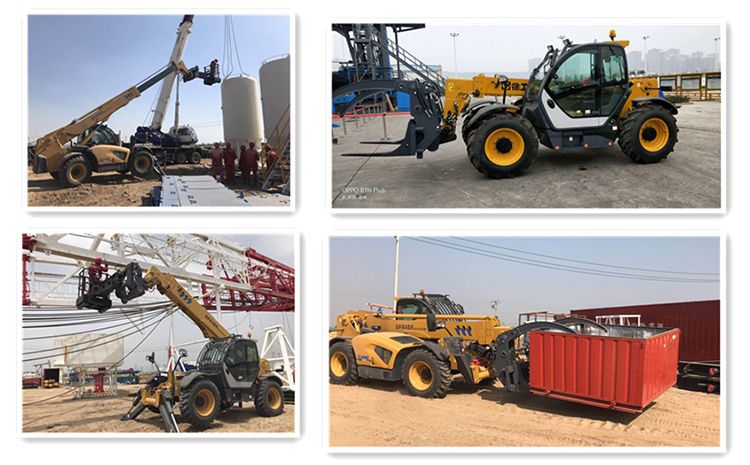

XCMG new 10m telescopic forklift telehandler XTF23010K port machinery is a domestically intelligent, safe and efficient telescopic fork loader product. The electronically controlled static pressure transmission system and stepless variable speed drive technology make the operation more stable and reliable; the intelligent independent heat dissipation system is energy-saving and efficient.
Panoramic cab, XCMG visual recognition appearance design, stylish and beautiful;
Compact short wheelbase, horizontal engine layout, the whole machine is light and flexible;
The integrated static pressure continuously variable drive system realizes full speed range driving and stable driving;
Four-wheel drive, multiple steering modes of two-wheel, four-wheel and crab line, with super cross-country ability, adapt to different construction occasions;
Using micro-movement control technology and special overload control system, the operation is safe and reliable;
The working system is controlled by electro-hydraulic proportion, and the operation is accurate, stable and efficient.
The advanced human-computer interaction, intelligent heat dissipation and dust removal control system fully demonstrate the technological intelligence.
| Item | Unit | Parameter |
| Unladen weight(with forks) | kg | 30200 |
| Overall width | mm | 2850 |
| Overall height | mm | 3000 |
| Overall length | mm | 8800 |
| Model | QSB6.7-C190-30 | |
| Displacement | L | 6.7 |
| Power | Kw | 142Kw/2200r/min |
| Torque | N.m | 931N.m/1400r/min |
| Wheelbase | mm | 3900 |
| Ground clearance | mm | 490 |
| Tilting angle of fork(tip up/tip down) | ° | 12/105 |
| Hydraulic system pressure | bar | 350 |
| Hydraulic oil tank volume | L | 280 |
| Fuel tank volume | L | 310 |
| Hollow tire | 18.00 R25 | |
| Fork specifications(optional) | mm | 1800x250x100 |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
