Product Specification
| MODEL | LG40DT |
| Power type | Diesel |
| Rated capacity (Kg) | 4000 |
| J Load centre (mm) | 500 |
| h1 STD Max lifting height (mm) | 3000 |
| h3 Free lift height (mm) | 150 |
| L5×W×T STD Fork size (mm) | 1070×150×50 |
| Mast tilt angle (deg) | 6/12 |
| L3 Front overhang (mm) | 555 |
| L4 Rear overhang (mm) | 520 |
| R1 Min. turning radius (mm) | 2720 |
| Min .width for pallets 1,000×1,200 crossways (L×W) (mm) | 4475 |
| Speed(load/unload) |
| Max.traveling speed (km/h) | 25 |
| Max. lifting speed (mm/s) | 460/520 |
| Max. gradient (%) | 23 |
| STD Dead weight (kg) | 6400 |
| S/P Tread(front/rear) (mm) | 1180/1190 |
| L2 Axle distance (mm) | 2000 |
| Min.ground clearance |
| m2 Mast (mm) | 175 |
| m1 Frame (mm) | 215 |
| Optinal Engine |
| Engine Model | 4DX23 | S6S-229 | YN4EL076-43CR | YN4EZ080 | YN4EL089 |
| Rated Power(kw/rpm) | 60/2200 | 52/2300 | 55/2200 | 58.8/2200 | 62.5/2200 |
| Max.Torque(Nm/rpm) | 320/1500 | 248/1700 | 310/1500-1800 | 276/1500-1800 | 320/1600 |
| Number of Cylinders | 4 | 4 | 4 | 4 | 4 |
| Displacement (L) |

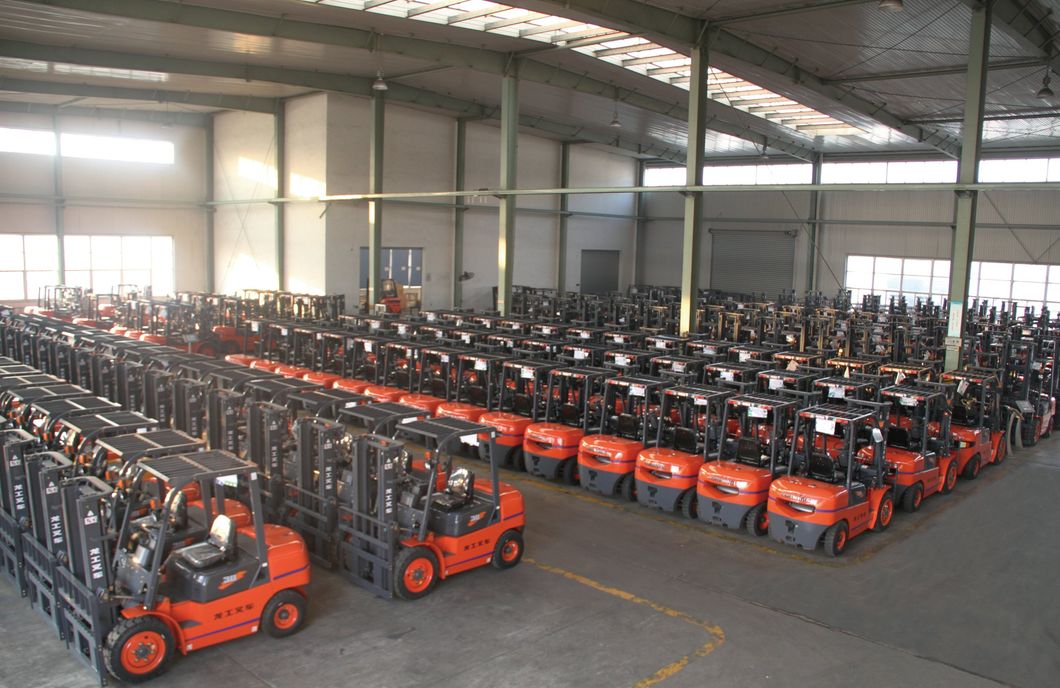

Factory View
FAQ:
Q: Are you a trading company or Manufacturer ?
A: Actually we are a selling company and specilized in selling lonking brand products only. we are responsible for selling only. Our HQ Lonking group in charge of design, Manufacture and R&D products.
Q: Why do i choose your products?
A: First, When we are making purchase decision on the valued equipment , Brand, Quality and Completed after-sales service is our top prioritity considation.Lonking as a top 3 construction machinery manufacturer in China, (Top 50 in the world), Quality can be ensured, and after sales service network is mature and completed. you will find the after sales service station easier.
Q: How long it can be delivered if i place an order?
A: As usually, the standard configurated machines will be delivered shortly, But if it is special configuration, It will be delivered in 30 working days.
Q: What kind of trade term you will provide?
A: Honestly it all depands, if you are perfer to CIF ,we can offer CIF price to you, If you like FOB, We can provide FOB. Main Trade terms are available for us.
Q: What kind of payment term is available?
A: T/T &L/C are available.
