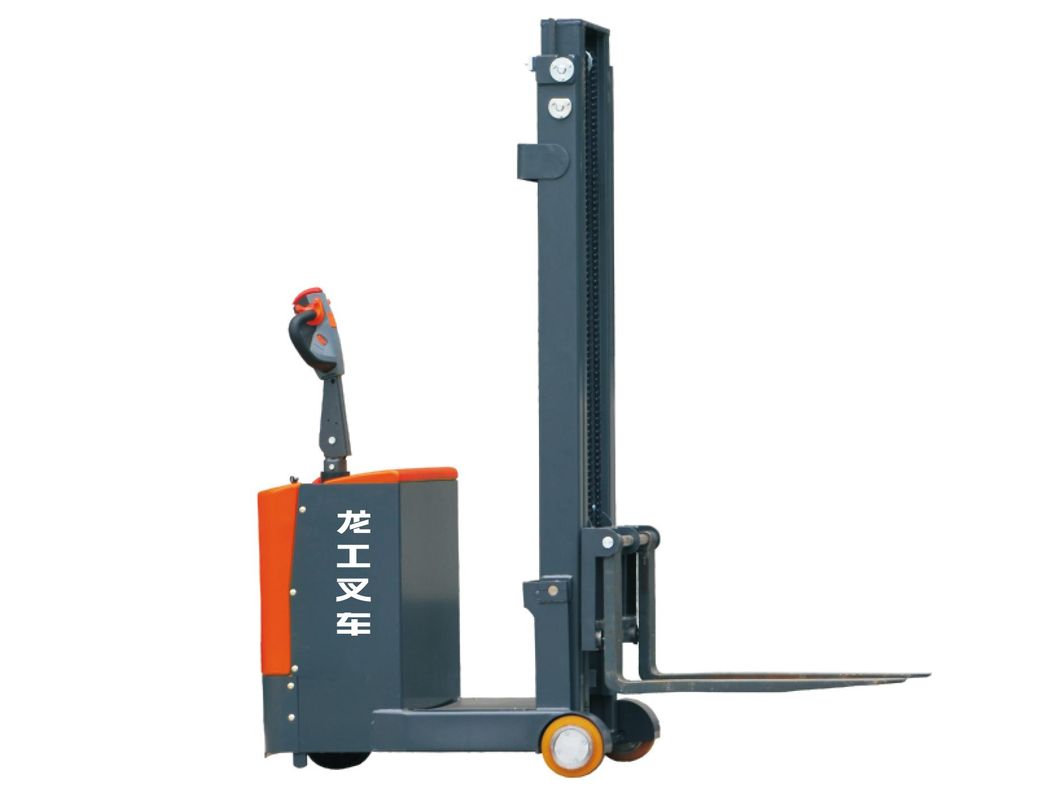

Product Specifications
| Model | | LG16EDI-1.6M | LG16EDI-2.5M | LG16EDI-3M | LG16EDI-3.3M | LG16EDI-3.6M |
| Driving Mode | | Electric |
| Opertae Mode | | Standing |
| Rated Load Capacity | Q (t) | 1.6 |
| Rated load center distance | c (mm) | 600 |
| Front Overhange | x (mm) | 639 |
| Wheel Base | y (mm) | 1295 |
| Own weight(Battery included) | kg | 940 | 1015 | 1065 | 1085 | 1105 |
| Tyre Material | | polyurethane |
| Driving Wheel Size | Φ×w(mm) | Φ250×75 |
| Bearing Wheel Size | Φ×w(mm) | Φ80×70 |
| Balanced wheel Size | Φ×w(mm) | Φ115×55 |
| Wheel Qty | | 1x+2/4 |
| Track With Driving Side | b10 (mm) | 580 |
| Track Width Bearing Side | b11 (mm) | 390/515 |
| Lowest Mast Height | h1 (mm) | 1990 | 1741 | 1991 | 2141 | 2291 |
| Free Lifting Height | h2 (mm) | 166 |
| Lifting Height | h3 (mm) | 1600 | 2500 | 3000 | 3300 | 3600 |
| Max Mast Height | h4 (mm) | 1990 | 2908 | 3408 | 3708 | 4008 |
| Standing platform Heigt | h7 (mm) | 128 |
| Operate handle lowest /Highest Height | h14 (mm) | 1063/1440 |
| Fork min Height | h13 (mm) | 86 |
| Overall length | l1 (mm) | 2040 |
| Truck Length | l2 (mm) | 890 |
| Overall Width | b1 (mm) | 808 |
| Fork Size | s/e/l (mm) | 60/180/1150 |
| Fork Outer Width | b5 (mm) | 570/695 |
| Floor clearance | m2 (mm) | 24 |
| Min.width for pallets 1,000×1,200 crossways (L×W)(mm)1000x1200 | Ast (mm) | 2452 |
| Min.width for pallets 1,000×1,200 Straightways (L×W)(mm):800x1200(1200) | Ast (mm) | 2432 |
| Turning radius | Wa (mm) | 1570 |
| Travelling speed (full load/unload) | (km/h) | 5.2/5.5 |
| Lifting Speed (full load/unload) | (mm/s) | 80/210 |
| Falling Speed (full load/unload) | (mm/s) | 152/160 |
| Max Climbing (full load/unload) | (%) | 6/8 |
| Retardation | | Electromagnetic |
| Driving Motor Power | (kW) | 1.5 |
| Lifting Motor Power | (kW) | 2.5 |
| Battery Capacity | (V/Ah) | 24/210 |
| Battery Weight(±5%) | (kg) | 210 |
Controller
| | AC Control |
| Working Noise | (dB(A)) | 70 |
| Steering type | | EPS |
Company View
FAQ:
Q: Are you a trading company or Manufacturer ?
A: Actually we are a selling company and specilized in selling lonking brand products only. we are responsible for selling only. Our HQ Lonking group in charge of design, Manufacture and R&D products.
Q: Why do i choose your products?
A: First, When we are making purchase decision on the valued equipment , Brand, Quality and Completed after-sales service is our top prioritity considation.Lonking as a top 3 construction machinery manufacturer in China, (Top 50 in the world), Quality can be ensured, and after sales service network is mature and completed. you will find the after sales service station easier.
Q: How long it can be delivered if i place an order?
A: As usually, the standard configurated machines will be delivered shortly, But if it is special configuration, It will be delivered in 30 working days.
Q: What kind of trade term you will provide?
A: Honestly it all depands, if you are perfer to CIF ,we can offer CIF price to you, If you like FOB, We can provide FOB. Main Trade terms are available for us.
Q: What kind of payment term is available?
A: T/T &L/C are available.
