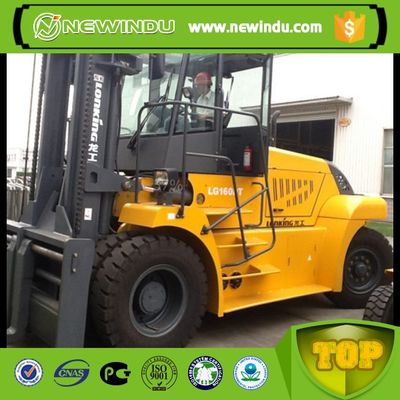

PRODUCT DESCRIPTION:
Reasonably stable low center of gravity
Computer simulated the most reasonable low center of gravity, and use of high-strength steel to weld the body of the forklift, ensure the reliability of transportation.
Security
Lifting system gantry wide field of vision, dramatically improved the vision of drivers, to make sure the safety and speed of operation. Pipeline system provided a safety device, even if the pipeline ruptured, door frame will not be out of control.
Cooling system
Using large-capacity copper water tanks, international advanced cooling technology, to ensure that the vehicle has good heat dissipation.
Electrical System
Using the latest technology of the harness and waterproof plug-ins , multi-fuse fuse layout, greatly enhanced the safety and stability of circuit system.
MAIN PARAMETERS
| MODEL | LG60DT |
|---|---|
| Power type | Diesel |
| Rated capacity (Kg) | 6000 |
| J Load centre (mm) | 600 |
| h1 STD Max lifting height (mm) | 3000 |
| h3 Free lifting height (mm) | 200 |
| L5*W*T STD Fork size (mm) | 1220×150×60 |
| Mast tilt angle (deg) | 6/12 |
| L3 Front overhang (mm) | 590 |
| L4 Rear overhang (mm) | 695 |
| Overall dimension | |
| L1 Overall length(mm) | 4755 |
| W1Overall width (mm) | 2000 |
| h2 Mast lowered height (mm) | 2500 |
| h4 Overhead guard height (mm) | 2464 |
| R1 Min.turning radius (mm) | 3400 |
| Min .intersecting aisle (mm) | 5400 |
| Speed(load/unload) | |
| Max.traveling speed (km/h)(F/R) | 27/27 |
| Max,lifting speed (mm/s)(load/unload) | 330/450 |
| Max.gradient (%) | 20 |
| Dead weight (kg) | 8537 |
| S/P Tread(frnt/rear)(mm) | 1470/1700 |
| L2 Axle distance (mm) | 2250 |
| Min.ground clearance | |
| m2 Mast (mm) | 216 |
| m1 Frame (mm) | 248 |
| STD Engine | Xichai CA6110/125G2 |
| Rated power(kw) | 83 |
