Model NO.
CPCD70
Fuel
Diesel
Load center
600mm
Lift height
3000~5000mm
Condition
New
Minimum Ground Clearance
230mm
Forklift Weight
9600kg
Wheelbase
2250mm
Free Lifting Height
210mm
Width
1970mm
Transport Package
Nude Packing
Specification
3000
Trademark
TITECO
Origin
China
HS Code
8431200900
Production Capacity
3000 PCS/Year
After-sales Service:
24h Online Service.
Warranty:
1 Year
Cab Location:
Not Adjustable
Type:
Diesel Forklift
Power:
Diesel Engine
Load Capacity:
5T - 10T
PRODUCT DESCRIPTION
| Model | CPCD50 | CPCD60 | CPCD70 | CPCD80 | CPCD100 | |
| Rated lifting load | kg | 5000 | 6000 | 7000 | 8000 | 10000 |
| Load center distance | mm | 600 | 600 | 600 | 600 | 600 |
| Free lifting height | mm | 210 | 210 | 210 | 200 | 200 |
| Overall length ( With fork/Without fork ) | mm | 4690/3510 | 4720/3590 | 4810/3680 | 5175/3955 | 5497/4277 |
| Width | mm | 1970 | 1970 | 1970 | 2245 | 2245 |
| Overhead guard height | mm | 2500 | 2500 | 2500 | 2570 | 2570 |
| Wheelbase | mm | 2250 | 2250 | 2250 | 2800 | 2800 |
| Minimum ground clearance | mm | 230 | 230 | 230 | 250 | 250 |
| Mast tilt angle (front/rear) | % | 6°/12° | 6°/12° | 6°/12° | 10°/12° | 10°/12° |
| Tire no. (before) | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20NHS | 9.00-20NHS | |
| Tire no. (after) | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20NHS | 9.00-20NHS | |
| Min. turning radius (outer side) | mm | 4080 | 4120 | 4180 | 3755 | 4150 |
| Min. right angle aisle width | mm | 5230 | 5290 | 5360 | 5755 | 6010 |
| Fork size | mm | 1220×150×60 | 1220×150×60 | 1220×150×65 | 1520×170×70 | 1520×175×85 |
| Max. Working speed (Full-load/No-load) | km/h | 24/29 | 23/29 | 22/29 | 20/26 | 20/26 |
| Max. lifting speed (Full-load/No-load ) | mm/s | 510/530 | 500/530 | 500/480 | 330/350 | 330/350 |
| Max. Gradeability (Full-load/No-load) | % | 15/20 | 15/20 | 15/20 | 15/20 | 15/20 |
| Forklift weight | kg | 8400 | 8900 | 9600 | 11800 | 12410 |
| Engine | QUANCHAI | QUANCHAI | QUANCHAI | QUANCHAI | QUANCHAI |
As lifting and transporting machineries, 7Ton double wheel Diesel Forklift Truck is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on. With other attachments of forklift trucks, it can be used for the handling of the bulk goods and unpackaged goods.
1. Powerful engine
Optional engine: CHAOCHAI 6102BG6 engine; 6BG1-02 engine; 1104D-44TA engine
2. Hydraulic gear-box and hydraulic steering
3. Double front wheel for more stable and reliable
4. Fashionable design, high efficiency
5. Safe overhead guard
6. Warning light
7. Rear light for working in the dark
OUR SERVICE
Pre-Sales Service
1. Inquiry and consulting support.
2. Photos&Videos for your order before shipment.
3. Factory visiting.
After-Sales Service
1. Training how to use the machine.
2. Whole life-time supply for spare parts.
3. User manual and details videos or CD if you requested.
4. Overseas customer visiting.
Warranty
1. One year guarantee for whole machine main parts.
2. 24 hours technical support by email.
3. Sending all filters and tool boxes for your maintainance spare

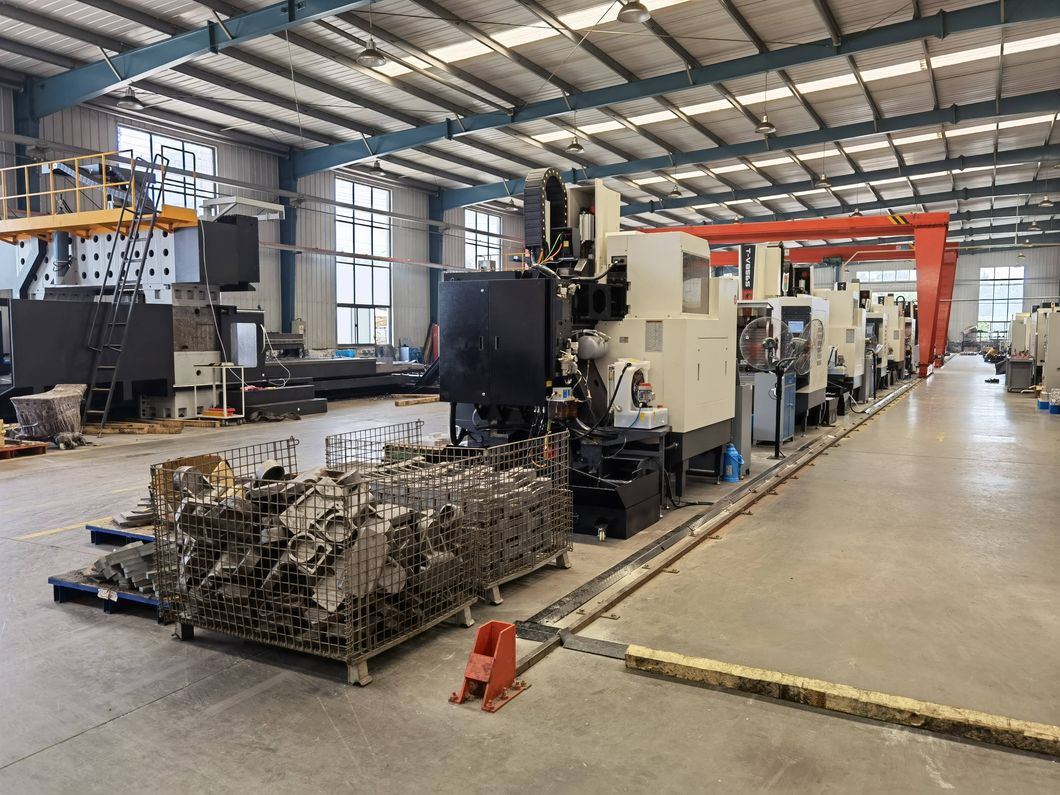

WORKSHOP
