Model NO.
LC-CPCD100
Fuel
Diesel
Load center
600mm
Lift height
3000mm
Condition
New
Engine Model
Xichaica6110
Power(Kw)
85
Gearbox Type
Hydraulic
No-Load Weight
12410kg
Tire Type
Air Inflation Tire
Packing(
1 Unit/40hq
Transport Package
by Container
Specification
L4277*W2245*H2870mm
Trademark
LGMC
Origin
Liuzhou
After-sales Service:
Parts Replaceable
Warranty:
1 Year
Cab Location:
Not Adjustable
Type:
Diesel Forklift
Power:
Diesel Engine
Load Capacity:
10000kg

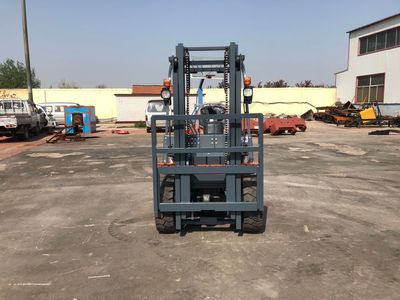

Large Electric Forklift gets the job done, quietly and reliably(LC-CPCD100)
Main Features
1. The forklift door frame is made of 20 manganese silicon channel steel to ensure the hardness of the door frame and prolong the
service life of the entire door frame.
2. The forks are forged forks to ensure the strength of the fork and improve the safety factor.
3. The intelligent electronic control system makes the vehicle control more refined and reduces the operating cost of the whole
machine.
service life of the entire door frame.
2. The forks are forged forks to ensure the strength of the fork and improve the safety factor.
3. The intelligent electronic control system makes the vehicle control more refined and reduces the operating cost of the whole
machine.
MINI SIZE, MULTIPLE FUNCTIONS
EASILY OPERATED AND FLEXIBLE
WIDELY USED IN ALL TERRAIN
CONFIGURATION ADJUSTABLE
| Model | CPCD100 | |||
| Characteristics | Fuel type | Diesel | ||
| Load capacity | kg | 10000 | ||
| Load center | mm | 600 | ||
| Lift height | mm | 3000 | ||
| free lift height | mm | 200 | ||
| Fork dimension | mm | 1500×160×80 | ||
| Mast tilting angle | Deg | 6/12 | ||
| Min.turning radius | mm | 4050 | ||
| Min. Groud clearance | Mast | mm | 240 | |
| Frame | mm | 350 | ||
| Overhead guard height | mm | 2560 | ||
| Front overhang | mm | 728 | ||
| Performance | Max travel speed | km/h | 25 | |
| Max lift speed | mm/s | 340 | ||
| Max.towing force(full load) | KN | 28.5 | ||
| Max. gradeability | % | 20 | ||
| Dimensions | Total length with fork | mm | 5750 | |
| Total length without fork | mm | 4250 | ||
| Total width | mm | 2245 | ||
| Mast extended height | mm | 4420 | ||
| Mast lowered height | mm | 2850 | ||
| Chassis | Tyres Front | 4×900-20-14PR | ||
| Type Rear | 2×900-20-14PR | |||
| Wheelbase | mm | 2500 | ||
| Tread | mm | 1600/1700 | ||
| Service weight | Kg | 12900 | ||
| Drive | Battery | V/Ah | 24/80 | |
| Motor | Model | XICHAI CA6110 | ||
| Rated output | kw/r.p.m | 86/2200 | ||
| Rated torque | Nm/r.p.m | 470/1100-1700 | ||
| Cylinders | 4 | |||
| Displacement | L | 3.76 | ||
| Fuel tank capacity | L | 90 | ||
| Transmission | Hydraulic | |||
