Model NO.
FD160
Fuel
Diesel
Load center
600mm
Lift height
3500mm
Condition
New
Fork Size
1800mm*180mm*90mm
Weight
23000kg
Engine
Yuchai
Wheelbase
3800mm
Color
Decided by Buyer
Rated Power
125kw/2200r.Pm
Product Name
16 Ton Diesel Forklift Truck
Free Lift
180mm
Fork Size (L*W*H)
1800X180X90mm
Min. Ground Clearance
265mm
Transport Package
by Bulk
Specification
7645mm*2750mm*3625mm
Trademark
LTMG
Origin
China
HS Code
84272090
Production Capacity
300set/Years
After-sales Service:
Provide
Warranty:
Provide
Cab Location:
Adjustable
Type:
Diesel Forklift
Power:
Diesel Engine
Load Capacity:
16 Ton

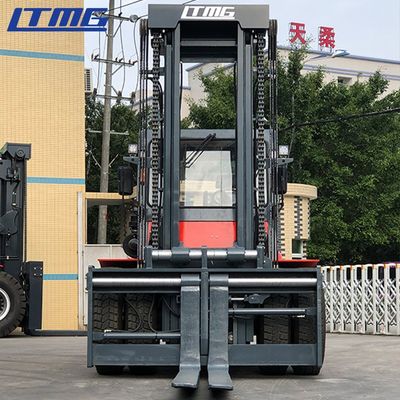

LTMG heavy duty forklift truck port container lifting 16 ton 12 ton 15 ton 20 ton large diesel forklift with positioner side shifter cabin
The specification of LTMG 16 ton Diesel Forklift
The specification of LTMG 16 ton Diesel Forklift
| General | 1 | Model | FD150 | FD160 | FD180 | |||
| 2 | Power Type | Diesel | Diesel | Diesel | ||||
| 3 | Rated Capacity | kg | 15000 | 16000 | 18000 | |||
| 4 | Load Centre | mm | 900 | 900 | 900 | |||
| Characteristic&Dimension | 5 | Lift Height | mm | 3000 | 4000 | 4000 | ||
| 6 | Fork Size(L×W×T) | mm | 1820×200×100 | 1820×200×100 | 1820×200×100 | |||
| 7 | Mast Tilt Angle(F/R) | Deg | 6°/12° | 6°/12° | 6°/12° | |||
| 8 | Fork Overhang (Wheel center to fork face) | mm | 900 | 900 | 920 | |||
| 9 | Ground Clearance(Bottom of mast) | mm | 250 | 250 | 250 | |||
| 10 | Length to face of fork(Without fork) | mm | 5430 | 5430 | 5430 | |||
| 11 | Overall Width | mm | 2610 | 2610 | 2610 | |||
| 12 | Mast Lowered Height | mm | 3160 | 3660 | 3660 | |||
| 13 | Mast Extended Height(With backrest) | mm | 4655 | 5655 | 5655 | |||
| 14 | Overhead Guard Height | mm | 3020 | 3020 | 3020 | |||
| 15 | Turning Radius (outside) | mm | 5300 | 5300 | 5300 | |||
| Performance | 16 | Travel (Full load) | km/h | 37 | 37 | 37 | ||
| 17 | Lifting (Full load) | mm/s | 300 | 290 | 270 | |||
| 18 | Max.Gradeability | % | 23 | 22 | 20 | |||
| 19 | Tyre Front | mm | 12.00-24-20PR | 12.00-24-24PR | 12.00-24-24PR | |||
| 20 | Tyre Rear | mm | 12.00-20-20PR | 12.00-20-20PR | 12.00-20-20PR | |||
| 21 | Wheelbase | mm | 3600 | 3600 | 3600 | |||
| 22 | Self weight | kg | 22100 | 23800 | 23800 | |||
| Power&Transmission | 23 | Battery Voltage/Capacity | V/Ah | 24/240 | 24/240 | 24/240 | ||
| 24 | Engine Model | CUMMINS | CUMMINS | CUMMINS | ||||
| 25 | Engine Manufacture | QSB6.7 | QSB6.7 | QSB6.7 | ||||
| 26 | Engine Rated output/r.p.m. | kw | 129/2200 | 129/2200 | 140/2200 | |||
| 27 | Engine Rated torque/r.p.m. | N·m | 800/1500 | 800/1500 | 800/1500 | |||
| 28 | Engine No.of Cylinder | 6 | 6 | 6 | ||||
| 29 | Engine Bore×Stroke | L | 107×124 | 107×124 | 107×124 | |||
| 30 | Engine Displacement | cc | 6700 | 6700 | 6700 | |||
| 31 | Engine Fuel Tank Capacity | L | 350 | 350 | 350 | |||
| 32 | Transmission Type | Hydraulic | Hydraulic | Hydraulic | ||||
