New Adjusting Mechanism of Steering Wheel
- Patented new dual-screw-type adjusting mechanism of steering wheel improves operation comfort and reliability.
Wide View Mast
- The superior mast ensures operation safety.
- Patented channel steel has first-rate quality.
- Enlarged channel surfaces make the structure firmer.
- The wide view mast is the standard configuration of the truck.
Environment-friendly design and easy maintenance
- Built-in noise isolating and sealing materials reduce vibration and noise effectively.
- The gas spring with automatic lock function ensures safety during maintenance.
- The forklift has lower vibration and noise.
Air Inlet System
- The air suction is installed on top of the overhead guard column where is away from the dust produced when traveling. The air sucked by the engine is cleaner and thus the engine service life is prolonged.
Reliable Casting Steering Axle
- Compact structure, small deformation when loading.
- Shock absorber installed improving driving comfort.
- Dustproof and waterproof structure increasing service life and reliability effectively.
- Low maintenance cost.
Performance Improved
Load sensing steering system improves working efficiency.
Ergonomics Improved
Space around foot is effectively increased through using suspension type inching and downing the tilting cylinder under the floor;
The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard's front leg;
Half enclosed seat with ergonomic design is standard to improve back comfort and protect the waist as well;
Steering wheel with small diameter, electro-hydraulic direction changing lever and automobile type double joystick combined switch effectively improve driving comfort;
Operator's front view is improved through lowering the dashboard;
Vibration is reduced with suspended cab (overhead guard);
Noise around ear is reduced through using fully closed patch type driver's cab which could insulate the chassis noise effectively;
Lower damping device inside the lifting system reduces mast shock and vibration, avoiding crash noise caused by goods falling to the ground.
Reliability Improved
Aluminous plate-fin radiator, hot wind backflow preventing baffle, optimized counterweight cooling channel improve the truck`s cooling ability;
The optimal design of key parts like frame, mast, overhead guard and steering axle improving the whole truck's safety and reliability;
The reasonable whole truck's gravity center improves loading capacity, more stability and safer;
The truck which applying casted steering axle with huge steering angle could decrease steering radius. The axle is both water and dust proof, reliable, and extends maintenance interval.
Maintainability
External installed transmission box filter and hydraulic return oil filter, improves repairing, cleaning and replacement efficiency. Change easily;
It is easily for checking and maintenance with enlarged engine hood opening angle.

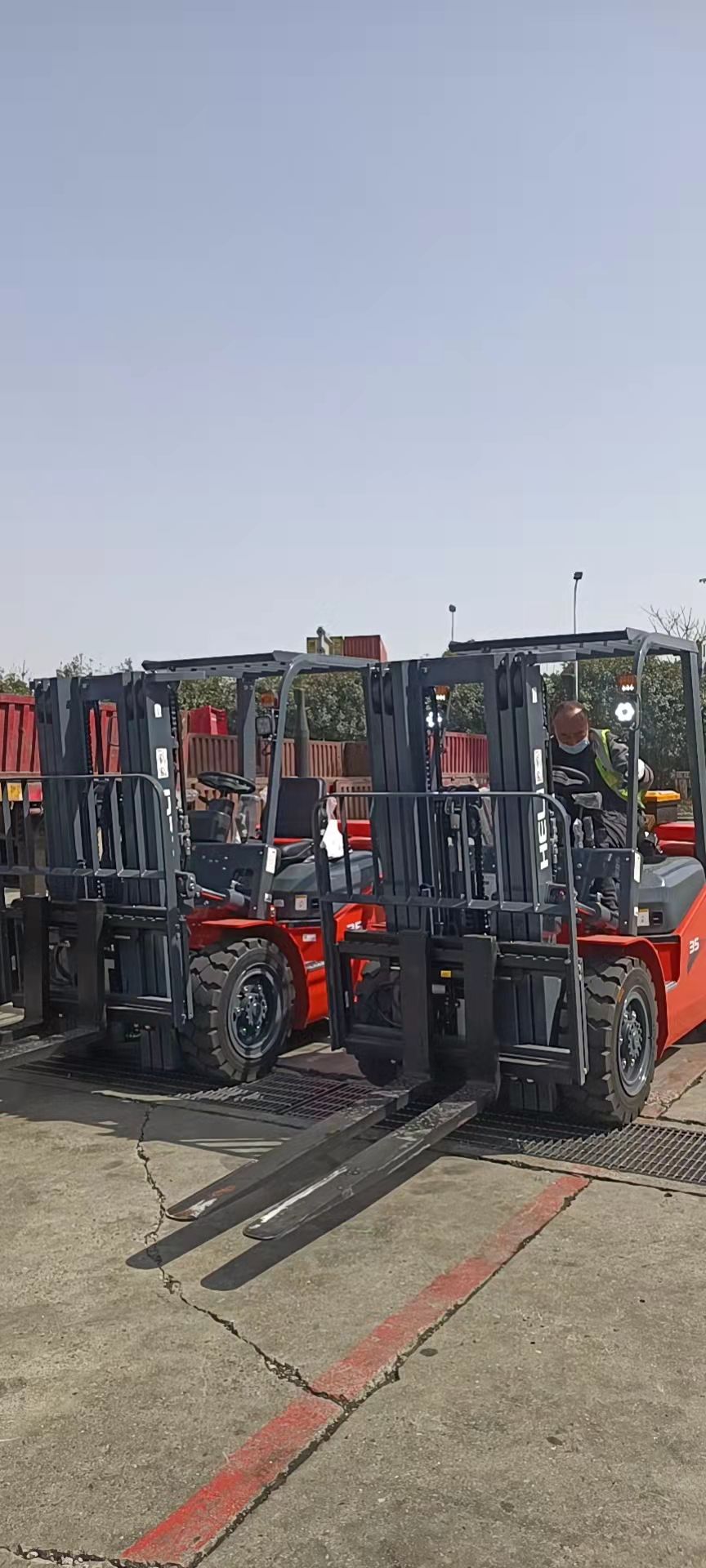

| Model | CPCD35 | ||
| Power type | Diesel | Overall length(without forks) | 2770mm |
| Load capacity | 3500kg | Overall width | 1285mm |
| Load center | 500mm | Overall height(overhead guard) | 2170mm |
| Max. lifting height | 3000mm | Min. turning radius | 2420mm |
Max. travel speed(with/without load) | 19/19(km/h) | Service weight | 5000kg |
| Model | Unit | CPC20/CPCD20/ CP(Q)(Y)20/CP(Q)(Y)D20 | CPC25/CPCD25/ CP(Q)(Y)25/CP(Q)(Y)D25 | CPC30/CPCD30/ CP(Q)(Y)30/CP(Q)(Y)D30 | CPC35/CPCD35/ CP(Q)(Y)35/CP(Q)(Y)D35 |
|---|---|---|---|---|---|
| Power type | Diesel/Gasoline/LPG/CNG | ||||
| Operation model | Sit-on type | ||||
| Load capacity | kg | 2000 | 2500 | 3000 | 3500 |
| Load center | mm | 500 | |||
| Max.lifting height | mm | 3000 | |||
| Overall length (without fork) | mm | 2580 | 2638 | 2748 | 2766 |
| Overall width | mm | 1150 | 1225 | ||
