Model NO.
FD35
Lift height
3000~6000mm
Condition
New
Transport Package
in Nude
Specification
L2730*W1225*H2090mm
Trademark
GS
Origin
Zhejiang
HS Code
8427209000
Production Capacity
25000units/Year
Cab Location:
Adjustable
Type:
Diesel Forklift
Power:
Diesel Engine
Load Capacity:
1T - 5T
Fuel:
Diesel
Load center:
500mm
CE approved ISO certificate 3000kg, 3500kg, 5000kg Forklift FD30 Diesel Forklift Japanese Engine Fork lift
Standard Configurations:
Pictures of product:

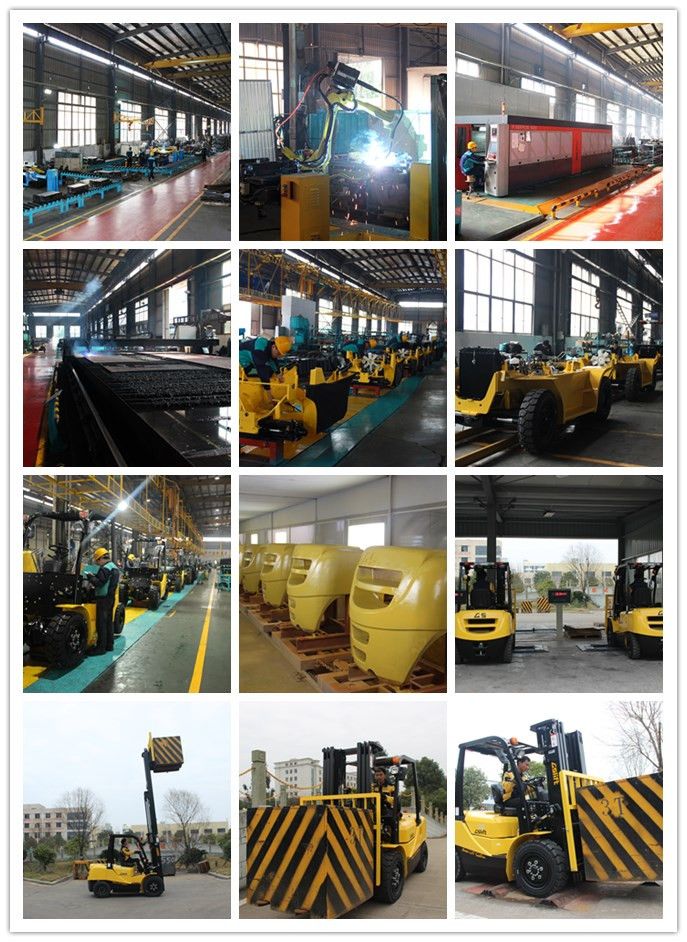

Pictures of factory:
Pictures of loading containers:
Pictures of fairs:
Standard Configurations:
- Cast steel steering bridge is more stable and reliable
- High strength steel chassis has good driving stability and safety
- Wide view mast gives operator an enhanced forward visibility
- Specially designed solid overhead guard provides additional security for operator
- Reliable instruments offer an easy access to the working conditionsof forklift truck
- Ergonomics seat makes operation much comfortable and relieves the fatigue
- Non-slip low pedal makes operating convenient and safe
- Powerful engine ensures forklift truck's high handling performance, offers instrinsical safety and efficient operation
- Higher ground clearance 135mm
- Iron engine cover, can be fixed
- Famous SHELL brand hydraulic oil
- CE,EPA,GOST,ISO approved
| FD35 DIESEL FORKLIFT SPECIFICATION | ||||
| General | 1 | Model | FD35 | |
| 2 | Power Type | Diesel | ||
| 3 | Rated Capacity | kg | 3500 | |
| 4 | Load Centre | mm | 500 | |
| Characteristic&Dimension | 5 | Lift Height | mm | 3000 |
| 6 | Fork Size (L×W×T) | mm | 1070×125×45 | |
| 7 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
| 8 | Front Overhang (Wheel center to fork face) | mm | 475 | |
| 9 | Ground Clearance(Bottom of mast) | mm | 135 | |
| 10 | Length to face of fork(Without fork) | mm | 2730 | |
| 11 | Overall Width | mm | 1225 | |
| 12 | Mast Lowered Height | mm | 2115 | |
| 13 | Mast Extended Height(With backrest) | mm | 4160 | |
| 14 | Overhead Guard Height | mm | 2090 | |
| 15 | Turning Radius (outside) | mm | 2440 | |
| Performance | 16 | Travel Speed (No load) | km/h | 19 |
| 17 | Lifting Speed (Full load) | mm/s | 440 | |
| 18 | Max.Gradeability (No load/Full load) | % | 20 | |
| Chassis | 19 | Front Tire | mm | 28×9-15-12PR |
| 20 | Rear Tire | mm | 6.50-10-10PR | |
| 21 | Wheelbase | mm | 1700 | |
| 22 | Self weight | kg | 4500 | |
| Power&Transmission | 23 | Battery Voltage/Capacity | V/Ah | 12/80 |
| 24 | Engine Model | C240 PKJ-30 | ||
| 25 | Manufacture | ISUZU | ||
| 26 | Rated output/r.p.m. | kw | 35.4/2500 | |
| 27 | Rated torque/r.p.m. | N·m | 139/1800 | |
| 28 | No.of Cylinder | 4 | ||
| 29 | Bore×Stroke | mm | 86×102 | |
| 30 | Displacement | cc | 2369 | |
| 31 | Fuel Tank Capacity | L | 60 | |
| 32 | Transmission Type | Hydraulic | ||
| 33 | Stage (FWD/RVS) | 1/1 | ||
Pictures of product:
Pictures of factory:
Pictures of loading containers:
Pictures of fairs:
