Model NO.
CPCD40
Fuel
Diesel
Load center
>500mm
Lift height
3000~5000mm
Condition
New
Power Unit
Diesel
Rated Capacity
3000kg
Loading Center
500mm
Standard Lift Height
3000mm
Mast Height,Extended(with Backrest)
4245mm
Overall Length (with/Without Forks)
3818/2748mm
Overall Width
1225mm
Overall Height (Overhead Guard)
2170mm
Wheel Base
1700
Min.Turning Radius (Exterior/Interior)
2400/200
Mast Tilting Angle
6/12
Total Weight
4400kg
Transport Package
Nude Packing
Specification
2748mm*1225mm*2065mm
Trademark
Heli
Origin
Anhui, China
HS Code
8427209000
Production Capacity
1000/Year
After-sales Service:
Spare Parts
Warranty:
1 Year
Cab Location:
Adjustable
Type:
Diesel Forklift
Power:
Diesel Engine
Load Capacity:
1T - 5T
Heli CPCD40 Diesel forklift for 3ton mast forklift supplier
Contact us
Hana Che(+86-17854169033)
Sales Director
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Product Description
Optimized design of hydraulic system effectively reduces truck fuel consumption
Electronic parking brake
Enlarged aluminum fin-type radiator improves cooling performance
The counter weight without tail structure reduces truck center of gravity and Integral improves type welded lateral stability
Parameters
| Model | Unit | CPYD40C | CPYD50C | |||
| Rated capacity | kg | lb | 3500 | 8000 | 4500 | 10000 |
| Load center | mm | in | 610 | 24 | 610 | 24 |
| Overall height (overhead guard) | mm | in | 2180.0 | 85.8 | 2180 | 85.8 |
| Overall length (with fork/without fork) | mm | in | 3885/2665 | 153/105 | 3985/2765 | 157/109 |
| Overall width (single Tire) | mm | in | 1270 | 50 | 1420 | 55.9 |
| Min. turning radius (exterior) (A single tire is the same double tires) | mm | in | 2300 | 91 | 2415 | 95 |
| Total weight | kg | lb | 6210 | 13690 | 7030 | 15498 |
| Max. traveling speed (loaded/unloaded) | Km/h | mph | 17/18 | 10.5/11.2 | 17/18 | 10.5/11.2 |

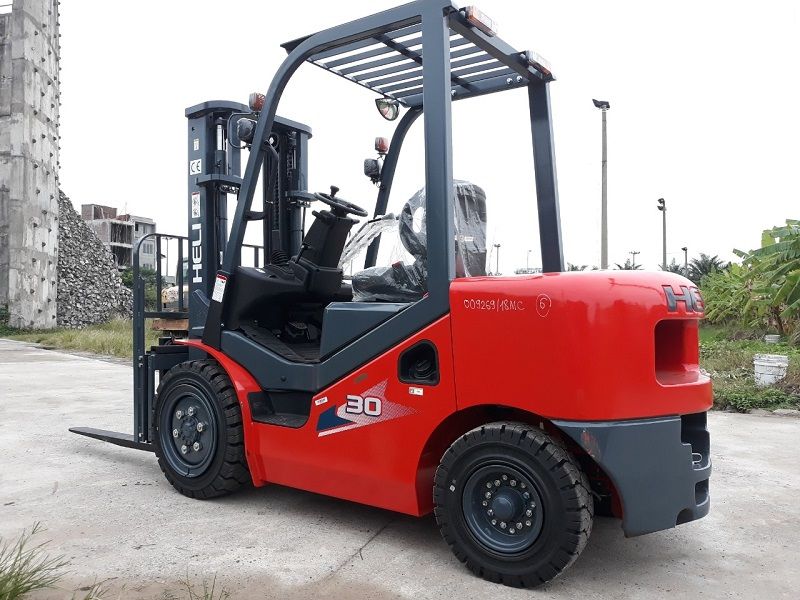

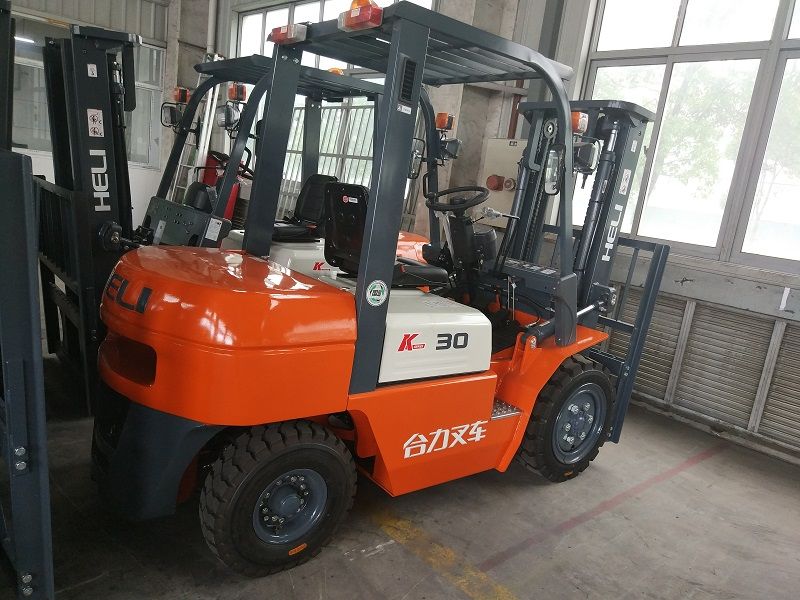

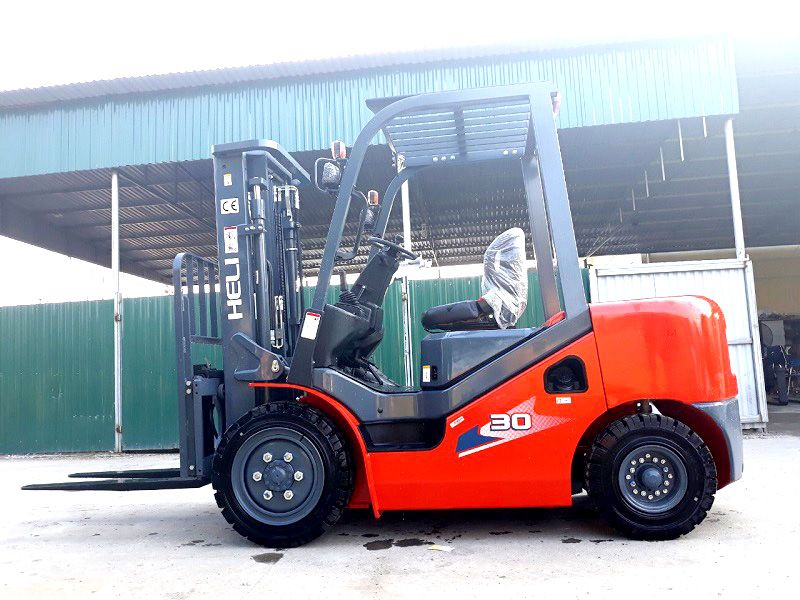

Pictures
