Model NO.
CPD30
Fuel
Electric
Load center
500mm
Lift height
3000~5000mm
Condition
New
Product Name
Heli 3t Lead-Acid Forklift Cpd30 Triplex Mast Lith
Mast Optioal
2/3 Stage Mast
Optional
Side Shift/Paper Roll Clamp
Tyretype
Pneumatic/Solid
Max. Lifting Height
3000mm
Color
Orange or Red
Charger
with
After-Sales Service Provided
Field Maintenance and Repair Service
Visit
Welcome
Application
Transport
Transport Package
Nude
Specification
2600*1850*3000mm
Trademark
Heli
Origin
China
HS Code
8427209000
Production Capacity
1000pieces/Year
After-sales Service:
Online Support
Warranty:
1 Year
Cab Location:
Not Adjustable
Type:
Electric Forklift
Power:
AC Motor
Load Capacity:
1T - 5T
Heli 3t Lead-acid Forklift Cpd30 Triplex Mast Lithium Forklift
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension
For the details of customized configurations and options, please contact with us.
2.Parameters:
1.1 | Main Information | ||
1.2 | Model | CPD30 | |
1.4 | Operation type | car type | |
1.5 | Load capacity | kg | 3000 |
1.6 | Load center | mm | 500 |
2.1 | Weight with battery | kg | 4980 |
Tire,chassis | |||
3.1 | Tire Type,Driving wheel/Load wheel | Pneumatic tire | |
Size | |||
4.1 | Mast tilt,Forward/backward | α/β(°) | 6/12 |
4.2 | Mast height after mast fall | mm | 2025 |
4.3 | Free lift height | mm | 100 |
4.4 | Standard Mast height | mm | 3000 |
4.7 | Overhead guard height | mm | 2220 |
4.8 | Overall length | mm | 3620 |
4.9 | Vehicle width | mm | 1220 |
4.1 | Fork size | mm | 45X125X1070 |
4.11 | Channel width,with 1000X1200mm pallet | mm | 4520 |
4.12 | Channel width,with 800X1200mm pallet | mm | 4560 |
4.13 | Turning radius | mm | 2300 |
Performance | |||
5.1 | Walking speed,loaded/withoutload | km/h | 11/12 |
5.2 | lifting speed,loaded/load | m/s | 0.23/0.37 |
5.3 | Dropping speed loaded/without load | m/s | 0.50/0.48 |
5.6 | Maximum traction,loaded | N | 18000 |
5.8 | Max grade ability,loaded/without load | % | 10.5/12 |
Drive | |||
6.1 | Drive motor power | kw | 16.6 |
6.2 | Drive motor power | kw | 10 |
6.4 | Level voltage/Capacitance | V/Ah | 80/500 |
Others | |||
7.1 | Drive System | DC/AC | |
7.2 | Electrical control system | Curtis from America | |

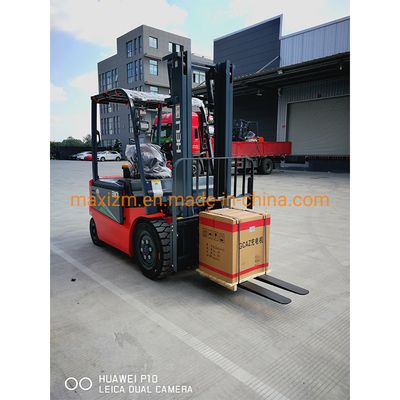

3.Clear Photo:
