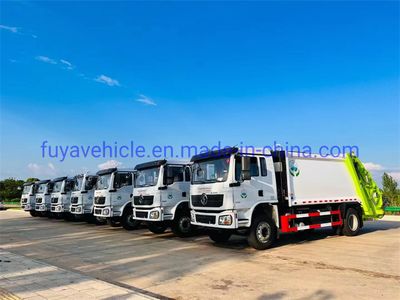

I. Details of Shacman L3000 14cbm 14m3 14tons 12cbm 12m3 12tons Compactor
Garbage Truck for Trash Collection
Garbage truck is mainly used in municipal sanitation and large factories and transport all kinds of rubbish, especially
suitable for transportation community living garbage. We provide various types of waste collection vehicles such as
side loader, refuse compactor, swing-arm garbage truck, arm-roll garbage truck, sealing dump garbage truck, compression
docking refuse collector, kitchen waste truck, etc. with different capacities ranging from 3CBM to 20CBM.
II. Specification of Shacman L3000 14cbm 14m3 14tons 12cbm 12m3 12tons
Compactor Garbage Truck for Trash Collection
| Chassis SPECIFICATION | |||
| Brand | SHACMAN | Cabin | L3000, one and a half row, with A/C |
| Dimensions | 7500x2350x3050 mm | Wheelbase | 4500mm |
| Garbage Volume | 14 cbm | Driving type | 4x2, LHD/RGD |
| Number of axles | 2 | No. of Tyre | 6+1 |
| Tire | 10.00R20 | Transmission | 8F+1R, manual |
| Engine | |||
| Brand | Weichai | Type | Diesel |
| Model | WP6.210E32 | Displacement | 6.75L |
| Horse power | 210hp | Emission | Euro 3 |
| Garbage Equipment | |||
| Volume | 14 m3 | Filler Volume | 1m3 |
| Tank Material | 5mm or 6mm | Material | carbon steel |
| Loading cycling time | ≤30s | Uploading cycling time | <30s |
| Compressed proportion | 1:3/1:2 | Turnover Mechanism | Different instrument selective |
III. Details of Compactor Garbage Truck
IV. Production workshop
There are more than 500 workers in our factory. Every production details are strictly controlled by our technicial engineers and
production manager.
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
VI. COMPANY INFO
HUBEI FUYA VEHICLE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,
sales and service in special trucks like as boom truck, fire truck, manlift truck, tank truck, garbage truck, tipper truck, wrecker
truck, refrigerated truck, water truck, etc.
Exporting
As Manufacturer, We Have Our Own License Of Import And Export.We Have Successfully Exported To Ghana, Sudan, Nigeria,
Angola ,Tajikistan, Namibia, Burma, Korea, Iran,American,Afghanistan,Iraq And Some Other Countries.The Development Of Our
Factory Is Getting Better And Better.
After Sales Service
Answer and solve your questions and consult within 24 hours
Overseas job site service available
One year guarantee about three key parts(axle, engine, transmission).Other spare parts could be supplied by cost price.
Other services:
1.All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current
production condition.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
