Model NO.
clw5071wyt
Bearing Capacity
Medium
Car Type
Van
Condition
New
Gearbox
5 Forward & 1 Reverse
Box Size
4100*2300*2100mm
Material
Fiberglass
Insulating Layer
8cm Polyurethane Foam
Truck Refrigeration Unit
Thermoking, Carrier or Chinese Alternative
Applicable Temperature
-18~0
Warranty
1 Year
Delivery Time
25 Days
Cargo
Medical,Vegetable,Meat,Ice Cream
Transport Package
Bulk Ship, RO-RO, Container
Specification
6000× 2500× 3300mm
Trademark
CLW
Origin
Suizhou, China
HS Code
87059099
Production Capacity
500 Units Per Month
Certification:
ISO9000, CCC, CE
Payload:
5t
Emission Standard:
Euro 4
Transmission Type:
Manual
Horsepower:
120HP
Fuel:
Diesel

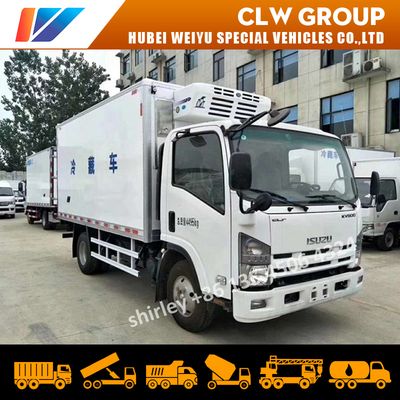

Japan ISUZU 5tons meat vegetable refrigerated Freezer Frozon meat Transport Van Truck 5t refrigerator truck
Description:
1. Purpose of Refrigerator Truck: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of Refrigerator Truck: Refrigerating unit,control system,chassis of different brands,box made of fiberglass and insulation material.
3. Features of Refrigerator Truck: International refrigerating unit brand for optional,such as thermo king,carrier,hanxue and so on.
How to choose refrigerator unit?
Specification of isuzu 5tons Refrigerator Truck
How we produce Refrigerator Truck?
Description:
1. Purpose of Refrigerator Truck: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of Refrigerator Truck: Refrigerating unit,control system,chassis of different brands,box made of fiberglass and insulation material.
3. Features of Refrigerator Truck: International refrigerating unit brand for optional,such as thermo king,carrier,hanxue and so on.
How to choose refrigerator unit?
Specification of isuzu 5tons Refrigerator Truck
| General Technical Parameters | ||||
| Overall Dimension | 6000×2500×3300(mm) | Gross Vehicle Weight | 9000(Kg) | |
| Curb Weight | 3900(Kg) | Loading Weight | 5000(Kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | ISUZU | ||
| Cabin | Single, Left Hand Driving, with A/C | |||
| Engine | Model | 4KH1-TCG4O, 4 Cylinders | ||
| Power | 88KW/120HP | |||
| Emission standard | EURO IV | |||
| Displacement | 2.999L | |||
| Fuel type | Diesel | |||
| Gearbox | MSB, 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 2.5T/4.8T | |||
| Wheel base | 3360(mm) | |||
| Overhang( Front/Rear) | 1130/1505(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Oil brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 650-16, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 105(km/h) | |||
| Superstructure | ||||
| Van | Box size | 4100×2300×2100(mm) | ||
| Material | Fiberglass | |||
| Insulating Layer | 8cm Polyurethane Foam | |||
| Brand | THERMOKING | |||
| Truck refrigeration unit | Model | KV300 | ||
| Applicable temperature (ºC) | -18~0 | |||
| Remarks | Part Optional: Ventilation slot Hook External power supply Side door | |||
How we produce Refrigerator Truck?
