Model NO.
Hydro-Park 3130/3230
Load Capacity
3000kg
Transport Package
Standard Export Package
Trademark
Mutrade
Origin
Qingdao, China
HS Code
84289020
Production Capacity
200 Sets/Month
Type:
Parking Lift
Driving:
Hydraulic
The Vehicle Inlet and Outlet:
Down
Design:
Four Post
Certification:
CE, ISO, CCC
Available Car Size:
5000X1850X2000mm
Introduction
Hydro-Park 3130/3230 is the most effective way to triple or quadruple the capacity of typical parking areas. Hydro-Park 3130 allows three vehicles to be stacked in a single parking space and Hydro-Park 3230 allows four vehicles. It moves only vertically, so the users have to clear the underneath levels to get the higher level car down. It is popularly used for car storage or valet parking.
- Best solution for car storage and showing
- Can be configured as a stand alone lift or combined into row of multiple units
- Self-standing and self-support structure
- 3000kg rated capacity makes it possible for heavy duty vehicles
- Two sides entrance and exit
- The steel ropes are 7 times as strong as the rated capacity
- Automatic shut-off if operator releases the key switch
- Hydraulic overloading protection
Specification
| Model | Hydro-Park 3130 | Hydro-Park 3230 |
| Available vehicle parking | 3 | 4 |
| Lifting time | <60s | <120s |
| Load capacity | 3000kg | 3000kg |
| Available car size | 5000x1850x2000mm | 5000x1850x2000mm |
| Surface treatment | Powder coating | Powder coating |
| Operation mode | Key switch | Key switch |
| Drive mode | Hydraulic cylinder + wirerope | Hydraulic cylinder + wirerope |
| Control voltage | 24V | 24V |
| Power pump | 7.5kw | 7.5kw |

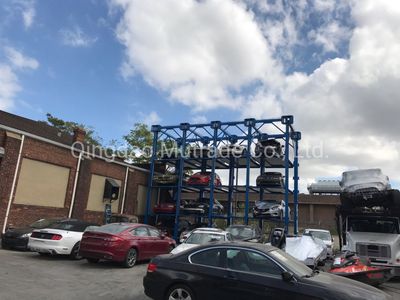

Project Reference
