16-48-500/800
Universal, Industrial, Household Appliances, Car, Power Tools
High Speed
Control, Driving
Closed Type
Brushless
CE
Lunyee
Carton
16inch 48V 500W 800W kit
China
Product Description
Overview
Quick Details
Combo Set Offered:≥6
Voltage:48V
Design:Brushless
Wattage:> 400w
Motor Type:Brushless Non-gear Hub Motor
Rated Power:500W 800w
Drive motor:Front drive/rear drive
Voltage:48V
Design:Brushless
Wattage:> 400w
Motor Type:Brushless Non-gear Hub Motor
Rated Power:500W 800w
Drive motor:Front drive/rear drive
Packaging & Delivery
Selling Units:Single item
Single package size: 45X45X30 cm
Single gross weight:11.500 kg
Package Type:Packing material:Carton with foam
Customized package is okay
Picture Example:
Lead Time :
Single package size: 45X45X30 cm
Single gross weight:11.500 kg
Package Type:Packing material:Carton with foam
Customized package is okay
Picture Example:
Lead Time :
| Quantity(Pieces) | 1 - 50 | >50 |
| Est. Time(days) | 15 | To be negotiated |
PRODUCT SPECIFICATIONS
Name | 16" BLDC gearless hub motor |
Magnetic | 15 |
Drive model | Front Drive |
Rear Drive | |
Open Size | 100mm for front drive |
135mm for rear drive | |
Shaft diameter | 14mm |
Rated voltage/ power/speed | 48v 500w 42km/h (GPS speed) |
48v 800w 50km/h | |
60v 1000w 55km/h | |
Tyre model | 16*2.5 |
16*3.0 | |
Brake Design | Disc brake |
Brake choice | 6 screw standard bike disc brake |
Wire location | left |
Low power design | 48v 350w (kindly please ask service center) |
Packing List

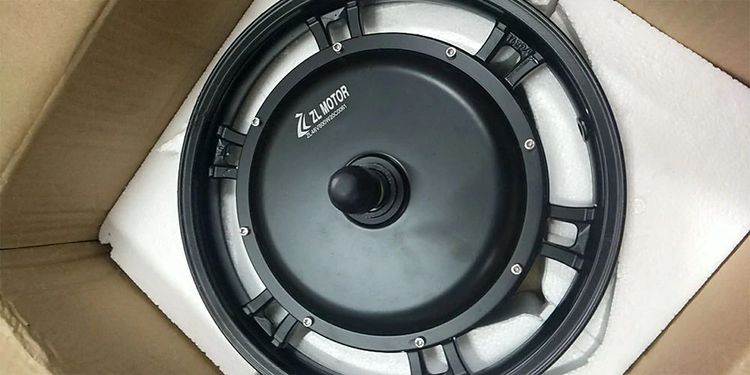

1* 16 inch Hub Motor
If you choose the Kit, the packing list:1* 16 inch Hub Motor
1* matched Controller
1* SW900 LCD display
1* Thumb Throttle
A pair of Brake Lever (all black color)
1 set Disc Brake
1* 7 speed Freewheel (Note: the front drive motor kit is can not the freewheel, the rear drive kit can use it.)
If you choose the Kit, the packing list:1* 16 inch Hub Motor
1* matched Controller
1* SW900 LCD display
1* Thumb Throttle
A pair of Brake Lever (all black color)
1 set Disc Brake
1* 7 speed Freewheel (Note: the front drive motor kit is can not the freewheel, the rear drive kit can use it.)
Controller:

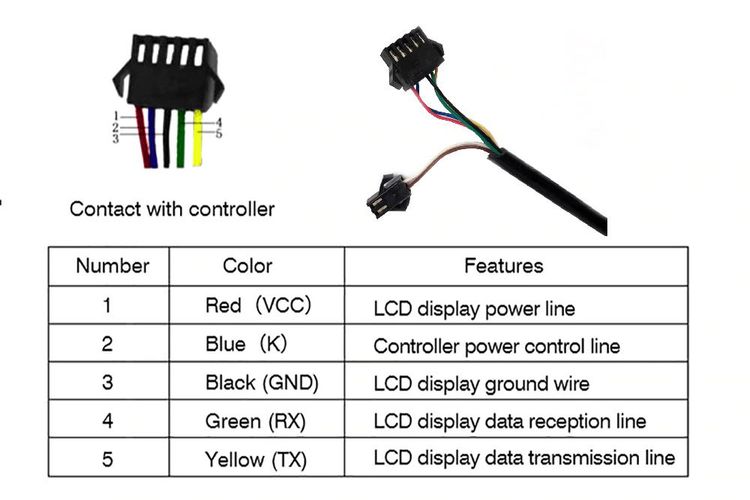

SW900:
SW900 LCD display setting:
P01: backlight brightness, level 1 is the darkest, level 3 is the brightest;
P02: mileage unit, 0: KM; 1: MILE;
P03: Voltage level: 24V, 36V, 48V, default 36V;
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes;
P05: Power-assisted gear: 0, 3 gear mode: 1 gear 2V, 2 gear, 3V, 3 gear, 4V;
1, 5 gear mode: 1 gear 2V, 2 gear, 2.5V, 3 gear, 3V,
4 files, 3.5V, 5 files, 4V;
P06: Wheel diameter: unit, inch; accuracy: 0.1;
P07: Number of speed magnets: Range: 1-100;
P08: Speed limit: range 0-50km/h, 50 means unlimited speed,
P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start;
P10: Drive mode setting 0 : Power drive (the booster position determines how much power is output, and the switch is invalid).
P11: Boost sensitivity setting Range: 1-24;
P12: Boost start strength setting Range: 0-5;
P13: Power magnetic steel disc type setting 5,8,12 magnetic steel three types
P14: Controller current limit value setting Default 12A Range: 1-20A
P15: The function has not been opened yet.
P16: ODO clear setting Long press the up button for 5 seconds ODO clear
P01: backlight brightness, level 1 is the darkest, level 3 is the brightest;
P02: mileage unit, 0: KM; 1: MILE;
P03: Voltage level: 24V, 36V, 48V, default 36V;
P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minutes;
P05: Power-assisted gear: 0, 3 gear mode: 1 gear 2V, 2 gear, 3V, 3 gear, 4V;
1, 5 gear mode: 1 gear 2V, 2 gear, 2.5V, 3 gear, 3V,
4 files, 3.5V, 5 files, 4V;
P06: Wheel diameter: unit, inch; accuracy: 0.1;
P07: Number of speed magnets: Range: 1-100;
P08: Speed limit: range 0-50km/h, 50 means unlimited speed,
P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start;
P10: Drive mode setting 0 : Power drive (the booster position determines how much power is output, and the switch is invalid).
P11: Boost sensitivity setting Range: 1-24;
P12: Boost start strength setting Range: 0-5;
P13: Power magnetic steel disc type setting 5,8,12 magnetic steel three types
P14: Controller current limit value setting Default 12A Range: 1-20A
P15: The function has not been opened yet.
P16: ODO clear setting Long press the up button for 5 seconds ODO clear
Left thumb throttle (If you need other type throttle, feel free connect me.)
Throttle lines: 1500mm
Suitable for the disc brake: 140mm with 6 holes
The 7 speed freewheel (Only can use for rear drive motor)
FAQ
Q:Could you provide the motor drawing since I need it ?
A:Yes,there is professional engineer do the design,research and could could supply the drawing to you.
Q:Do you get the relevant certification of motor?
A:So far,we've got the certification of CCC, ISO9001, CE, RoHS,VDE and so on.
Q:How long can I get the goods after payment?
A:For standard product,within 5 working days after your payment.
Customize product, depending on the change.
Q:What is your after-sales services?
A:1.Free maintenance within 12 months guarantee, lifetime consultant
2.Professional solutions in installation and maintence
Q:How much is the freight and what is the mode of transportation?
A:The freight is based on the weight of order and the distance of shipment.
For single order,the goods will be deliveried by EMS,DHL,FedEx,TNT and so on.
Please inform us advance if you have special packing and shipment requirement.
Q:Do you have other electric hub motor?
A:1.Many kinds of wheel motors could be supplied,such as brushless gearless hub motor,geared hub motor,spoke motor,ATV motor,and
so on.
2.The hub motor sizes are various, such as 4",5",6", 8",9",10", 12",13", 14.5", 15" etc.
3.Hub motor kit,such as throttle,controller,brake lever,disc brake and LCD monitor could be supplied.
4.Customize motors as customers' special requirements is our special service.
A:Yes,there is professional engineer do the design,research and could could supply the drawing to you.
Q:Do you get the relevant certification of motor?
A:So far,we've got the certification of CCC, ISO9001, CE, RoHS,VDE and so on.
Q:How long can I get the goods after payment?
A:For standard product,within 5 working days after your payment.
Customize product, depending on the change.
Q:What is your after-sales services?
A:1.Free maintenance within 12 months guarantee, lifetime consultant
2.Professional solutions in installation and maintence
Q:How much is the freight and what is the mode of transportation?
A:The freight is based on the weight of order and the distance of shipment.
For single order,the goods will be deliveried by EMS,DHL,FedEx,TNT and so on.
Please inform us advance if you have special packing and shipment requirement.
Q:Do you have other electric hub motor?
A:1.Many kinds of wheel motors could be supplied,such as brushless gearless hub motor,geared hub motor,spoke motor,ATV motor,and
so on.
2.The hub motor sizes are various, such as 4",5",6", 8",9",10", 12",13", 14.5", 15" etc.
3.Hub motor kit,such as throttle,controller,brake lever,disc brake and LCD monitor could be supplied.
4.Customize motors as customers' special requirements is our special service.
