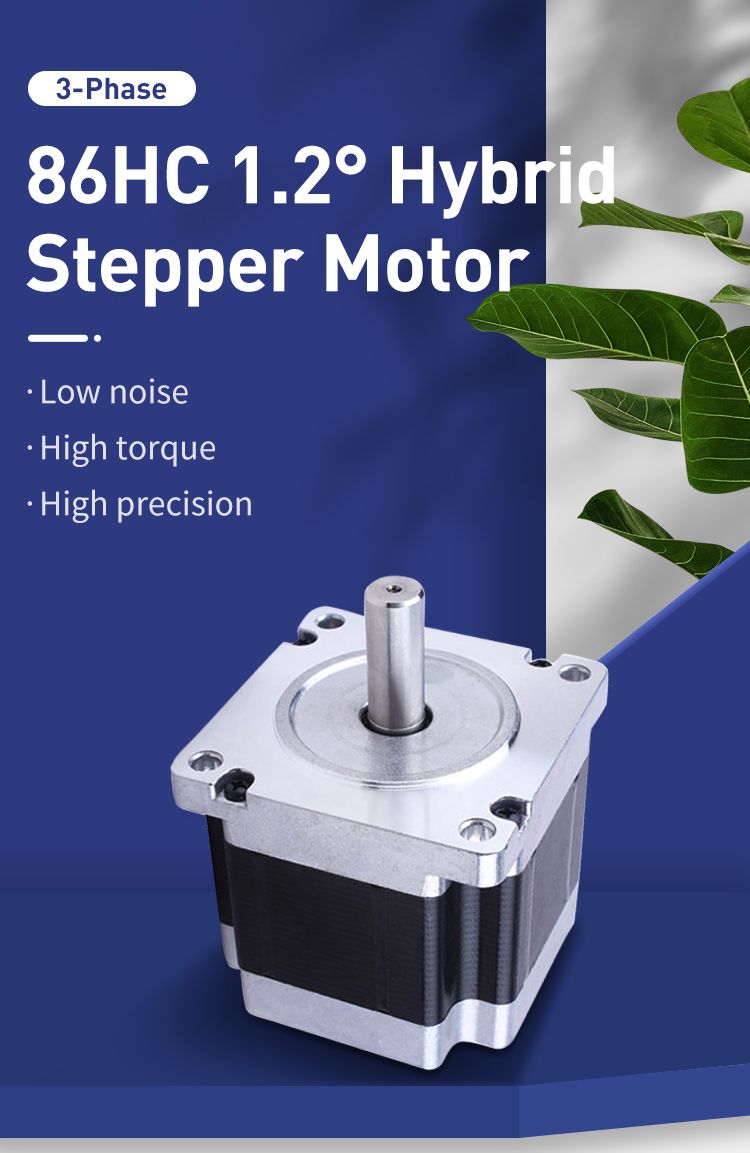

NEMA34 86HC
Printing Equipment
Constant Speed
Three-Phase
HB-Hybrid
Driving
No
Magnetic-Electric
CCC, CE
Lunyee
lunyee
Carton
1kg
China
Product Description
| Item | Specifications |
| Step Angel | 1.2° |
| Temperature Rise | 80ºCMax |
| Ambient Temperature | -20ºCMax~+50ºC |
| Insulation Resisitance | 100M ΩMin,.500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max(450g-load) |
| Max.Radial Force | 220N(20mm from th flange) |
| Max.Axial Force | 60N |
| Model No | Step Angle | Rated Voltage | Rated Current | Phase Resistance | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight |
| (°) | (V) | (A) | (Ω) | (g.cm) | (Kg) | ||||||
| 86HC67-1756 | 1.2 | 7.4 | 1.75 | 4.25 | 12.3 | 22.6 | 1000 | 1100 | 67 | 6 | 1.9 |
| 86HC97-2006 | 1.2 | 10.8 | 2 | 5.4 | 23 | 43 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC97-5806 | 1.2 | 5.2 | 5.8 | 0.9 | 3.2 | 46 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC97-5206 | 1.2 | 6.2 | 5.2 | 1.2 | 5.2 | 45 | 2000 | 1400 | 97 | 6 | 3.1 |
| 86HC127-2256 | 1.2 | 20.3 | 2.25 | 9 | 41 | 65 | 3000 | 2700 | 127 | 6 | 4.3 |
| 86HC127-5206 | 1.2 | 14.3 | 5.2 | 2.75 | 13.7 | 67 | 3000 | 2700 | 127 | 6 | 4.3 |
| 86HC150-5006 | 1.2 | 7.5 | 5 | 1.5 | 3 | 70 | 3600 | 4700 | 150 | 6 | 4.6 |
