EV Charging module
CCS1, CCS2, CHAdeMO, GB/T
Floor Type
Public Use
One Pile with One Charge
Credit Card Payment, Mobile Remote Operation, RFID Authentic
TUV
Yes
12 Months
Charging Module
TONHE
Carton
dc charging module
China
8504401990
Product Description
Input features
| Item | Parameters | Remark |
| Operating Voltage(AC) | 285~475V,rated voltage380V | See input voltage/output power 1.3.3-1 |
| Input Frequency(HZ) | 45~55 | |
| Power Factor | Full load≥0.99 | |
| THD | Full load≤5% | |
| Standby Power Consumption | <12W |
Input voltage/output power curve
Output Feature
| Item | Parameter | Remark |
| Output Voltage Range(DC) | 150~1000V | |
| Max output current(A) | 120 | |
| Output constant power interval | 250~500VDC,500~1000VDC | |
| Output current limit range | Max limit current is120A,limit current point can be set between 2~120A | See output voltage/current curve 1.3.3-2 |
| Voltage Stabilization Accuracy | ≤±0.5% | |
| Current Stabilization Accuracy | ≤±1%(load current is in the range of 20%~100%) | |
| Effective value coefficient of output ripple | ≤±0.5% | |
| Current sharing imbalance for modules in parallel | ≤±5%(parallel average current should be more than 5A) | |
| Peak efficiency | ≥95.5% | |
| Soft start time(S) | 3~8 | |
| When output, prevent current rewinding | Support | |
| Communication Protocol | CAN |
Output voltage/output current

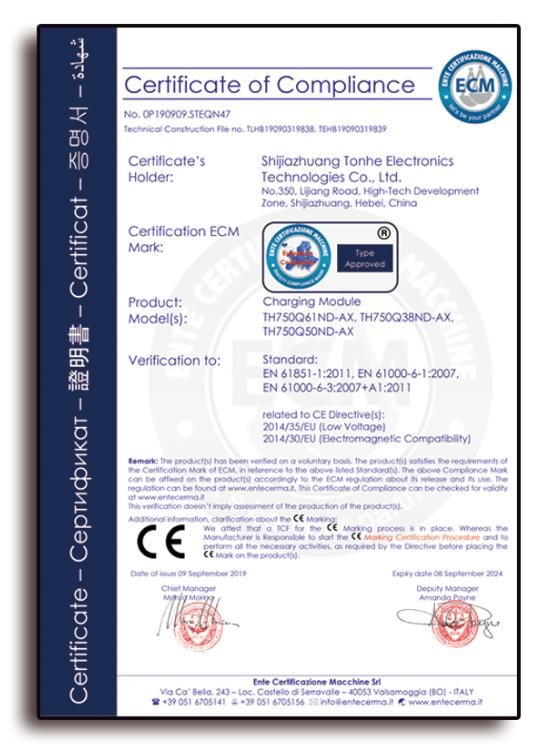

CE CERTIFICATE
Manufacturing Center
Test Center
18m³ walk-in high and low temperature lab
Anechonic Chamber Designed and contracted to build by Germany FARNKONIA,meeting testing place requirements of CISPR22\CISPR24,IEC61000-4-3,ISO 11452-2,ISO 11452-4,GJB151A/GJB152B
Test hall:program AC power supply,DC electronic load,power quality analyzer,300KVA adjustable AC power supply and so on.
