Quick Details
Place of Origin: Sichuan, China (Mainland)
Brand Name: ETECH
Certification: CE
Commutation: Brushless
Protect Feature: Waterproof
Continuous Current(A): 1.3-12.4A
Efficiency: IE 4
Noise: 55db

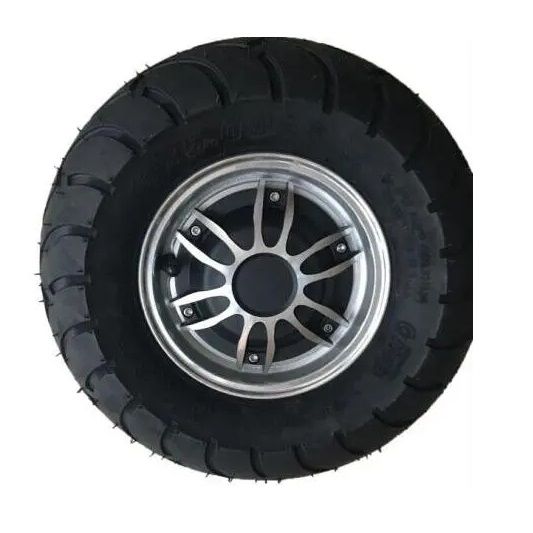

Motor type: Geared Brushless DC Motor
Usage: Robotics, Automated Guided Vehicle, etc.
Speed(RPM): Max 600(r/min)
Voltage: DC 24V/36V
Power: MAX:400W
Speed: MAX:6-8km/h
Diameter with tire: 330mm
Brake: EBS brake
Tire: inflatable tire
Weight: 7KG with tire
Cable: 3 motor phases, 5 hall sensor, 2 encoder wire.
We provide both single and double shaft version
We provide both silver color and black color
We provide both general tire and off-road tire
If you need any more information, plz feel free to contact us
FAQ
1. Factory or trader? We are factory, the source of the supply chain.
2. Delivery time? - Sample: 10 days. Bulk order: 15-20 days.
3. Why choose us?
* Factory Price & 24/7 after-sale services.
* 3 more quality test before products leave factory.
* Long life, durable and multi-application.
* Self Protection system avoids damage when overloaded or abruptly stoped.
* High efficiency and high torque available in small diameter.
* All products are made according to ISO 9001, CE, ROHS, CCC, UL and GS requirements.
