BB-YPG-B-1
Lithium-Ion Battery Pack
Series and Parallel
Chargeable
Medium Discharge Rate
Medium
Battery
>1000MAH
36
E-Bike ,E-Scooter
OEM
1 PCS /Carton
SGS. CE. RoHS. ISO9000
Shenzhen
8507600000
Product Description
Newest Electric bicycle battery pack with Rear Rack style
Application:
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Payment Terms:
1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.
2. EXW, FOB and CIF all are available.
3. Production lead time:7-10 working days.
4. Sample can be delivered in 3-5 working days.
5. Discounts are offered based on large quantities.
6. Loading port: Shenzhen or HK.
Company Information:
Shenzhen Chixia industry Co., Limited is a professional battery manufacturer of lithium batteries in China ,including : LiFePO4, LiMn2O4, LiNiCoMnO2 and LiCoO2 batteries. Products are widely applicable to E-bikes, E-motorcycles, EVs, golf carts, lawn mowers, electric tools and toys, portable power supply, safe mining equipments, UPS, telecommunication backup power, photovoltaic and wind power storage, etc.
All of our products will be strictly tested before delivering out .
We also offer OEM & OEM service.
You are always welcome to visit our factory and cooperate with us!
| Specification: | ||
| Voltage: | 36V | |

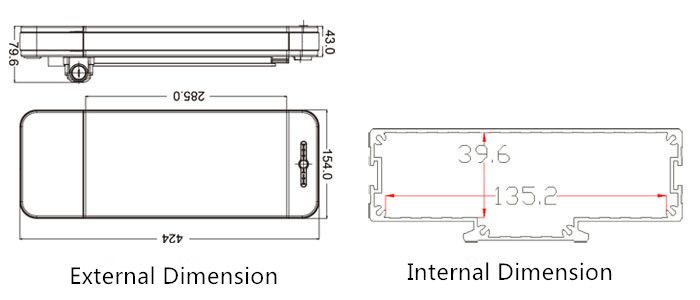

| Inner size: | 285*135*39mm | |
| Capacity: | 11~17Ah | |
| Structure: | 10S5P | |
| Connector: | USB-1 36V | |
| Charge Voltage: | 42V | |
| Discharge Voltage: | 27.5V | |
| Charge Port: | DC2.1 | |
| Discharge Port: | FDDZ-4 | |
| Battery Holder: | 14 cells | |
| Working Temperature: | 0~35ºC | |
| Storage Temperature: | ≤3month | 20±5ºC |
| Storage humidity: | ≤3month | 0~30ºC |
| ≤6month | 20±5ºC | |
| 65±20%RH | 20±5ºC | |
| Recommended to install the electric core number:18650 50PCS | ||
| Optional Cells:Samsung:22P,26F,29E,32E,33G | ||
| Panasonic:18650PF,32BD,18650B | ||
| LG:B4,C2,D1,E1,MG1,MJ1. | ||
| (1) | circuit board tabletting | (11) | battery box insertion strip*2 | (21) | DISCH |
| (2) | energydisplay screen | (12) | B aluminum case | (22) | Discharge stator |
| (3) | transmittance leaf | (13) | slide rail | (23) | USB connector |
| (4) | standard button | (14) | spring lock | (24) | fuse |
| (5) | LED energy display | (15) | lock housings | (25) | fuse |
| (6) | energy display | (16) | B model controller cover | (26) | seal rubber ring2#*2 |
| (7) | rear cover | (17) | B model thicken controller bottom | (27) | seal rubber ring1#*2 |
| (8) | U model insertion strip | (18) | oval seal ring | (28) | jam*4 |
| (9) | power switch | (19) | controller insertion strip | ||
| (10) | charging port DC2.1&rubber plug | (20) | front cover |
Application:
Widely applied in Electric Bicycle, Electric vehicle, Electric Tricycle, Electric scooter, Electric golf trolley, Electric car, Electric wheelchairs,two wheel vehicles and etc.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Payment Terms:
1. Payment: 30% advance payment by T/T, 70% balance should be paid off before shipping.
2. EXW, FOB and CIF all are available.
3. Production lead time:7-10 working days.
4. Sample can be delivered in 3-5 working days.
5. Discounts are offered based on large quantities.
6. Loading port: Shenzhen or HK.
Company Information:
Shenzhen Chixia industry Co., Limited is a professional battery manufacturer of lithium batteries in China ,including : LiFePO4, LiMn2O4, LiNiCoMnO2 and LiCoO2 batteries. Products are widely applicable to E-bikes, E-motorcycles, EVs, golf carts, lawn mowers, electric tools and toys, portable power supply, safe mining equipments, UPS, telecommunication backup power, photovoltaic and wind power storage, etc.
All of our products will be strictly tested before delivering out .
We also offer OEM & OEM service.
You are always welcome to visit our factory and cooperate with us!
