PG36RS555246000-3736K
Universal, Household Appliances, Power Tools
Low Speed
Shunt
Control
Protection Type
2
Brush
ZSN
ISO9001, Ce
Twirl
custom
Carton+EVA Foam
Zhejiang, China
8501109990
Product Description
| Basic information | |

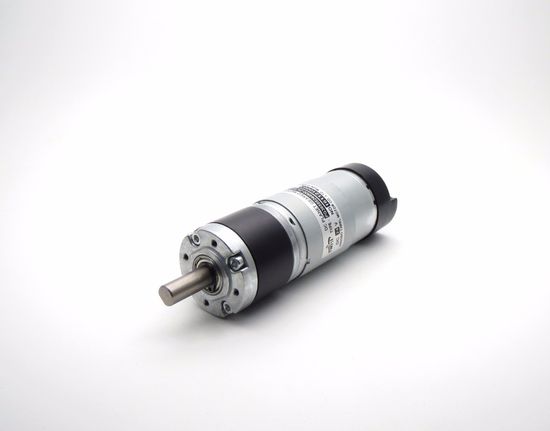

| Product name | PG36RS555246000-3736K |
| Motor type | carbon-brush commutator |
| Gear type | Straight gearwheel,planet construction |
| Housing material | Steel |
| Geartrain material | Steel and Powdered Metal,POM optional |
| Bearing at output shaft | Ball bearing |
| Lubricant | Grease for high-low temperature, -62---+204 degree |
| Backlash at no-load | <1°,MIN0.3° |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,ISO/TS16949 |
| An exact model of gearbox and motor combination | |
| Product seires | PG36 series |
| An exact Model NO. | PG36RS555246000-3736K |
| Motor Voltage(VDC) | 24 |
| Motor no load speed(rpm) | 6000 |
| Gearbox reduction ratio | 3736 |
| Gearmotor no load current(A) | <1.200 |
| Gearmotor no load speed(rpm) | 1.6+/-10% |
| Gearmotor rated load torque(kgf.cm) | 606 |
| Gearmotor rated current(A) | <6.500 |
| Gearmotor rated load speed(rpm) | 1.4+/-10% |
| Noise (DB) | <60DB |
| Lifetime | 1000+ hours (varies by application) |
| Rotation | CW/CCW reversible |
