10inch-23
Cutter Suction Dredger
Diesel
Hydrocyclone
CTN
Customized
New
2 Year
Lifelong
8 Meter
300 M3
1000 Meter
90 Ton
31.1 Meter
5.5meter
1.48meter
Shijiazhuang
1500m3
53 Meter
Cummins 456kw
Cummins 122kw
1200 mm
64kw
Rexroth
Set Sail
Canvas
10inch cutter suction dredger
China
8905100000
Product Description

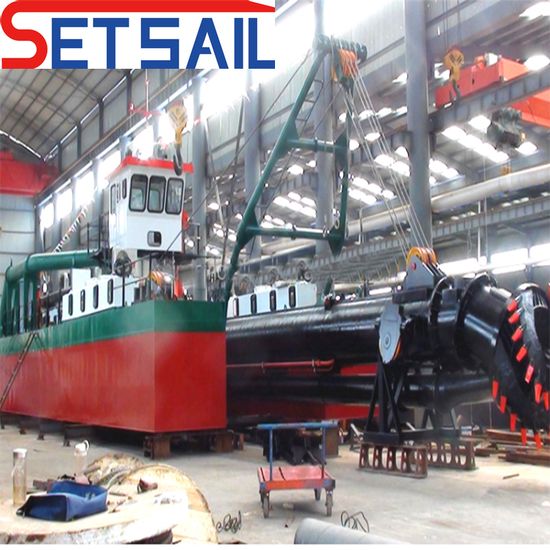

High quality 10 inch cutter suction dredger with diesel engine
1.Cutter suction dredger brief:| 1 | Main engine and auxiliary engine from US and UK .we can according to your request to offer engine brand. |
| 2 | Hydraulic control system from Rexroth. |
| 3 | Slurry pump from Kingda. |
| 4 | PLC system from Siemens. |
| 5 | Bushes/Shaft from NSk -Japan. |
| 6 | Sealing from parker -America. |
3. 10inch dredger main parts introduce :
| 1 | Main auxiliary Engine brand | Cummins |
| 2 | Main/auxiliary engine power | 456/122kw |
| 3 | Speed | 1500/1800/r/min |
| 4 | Cooling way | Water cooling way |
| 1 | Water flow | 1500m3 |
| 2 | Head | 53m |
| 3 | Speed | 720r/min |
| 4 | Efficiency | 76.75% |
| 5 | Suction /discharge pipe size | 350mm |

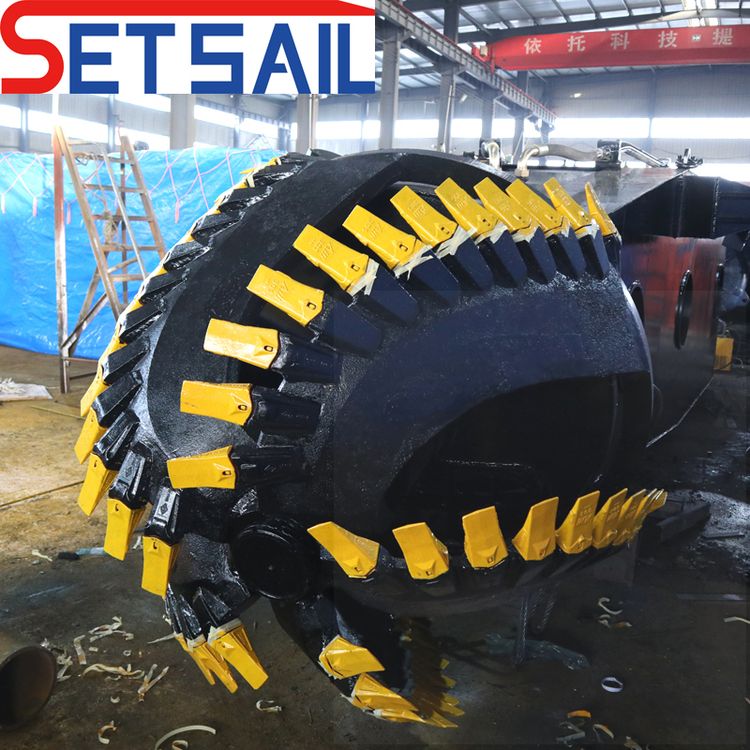

| 1 | Diameter | 1200mm |
| 2 | Speed | 11/22/33 |
| 3 | Cutter power | 64kw |
4. 10inch dredger basic parameter :
| 1 | Solid capacity | 300 cubic meter |
| 2 | Discharge distance | 1000 meter |
| 3 | Total weight | 90 ton |
| 4 | Total length | 31.1 meter |
| 5 | Total width | 5.5 meter |
| 6 | Total height | 1.48 meter |
| 7 | Sand pump water flow | 1500 cubic meter |
| 8 | Suction /discharge pipe size | 350mm |
| 9 | Main engine brand /power | Cummins/456kw |
| 10 | Auxiliary engine brand/power | Cummins/122kw |
| 11 | Cutter head diameter | 1200mm |
| 12 | Cutter head speed | 11/22/33 r/min. |
| 13 | Cutter head power | 64kw |
5.Dredger in work site :
6.Advantage :
| 1 | Make high depther dredger . especially is electrical underwater pump can reach the steadier performance . |
| 2 | Advanced detail design. from point to surface are according to the actual situation to design. |
| 3 | Configuration pretty rich. Anchor boom . carrirage. depth sounder meter .water flow meter . concentrate meter so on . |
| 4 | Long discharge distance . according all dredger working situation to reasonable design to save the budget for customer. |
| 1 | Help the customer to solve the any failure in time . |
| 2 | Cost for Offering the full spare parts |
| 3 | Low salary for Sending the engineer to the abord |
| 4 | Long time quality warrant |
9. FAQ:
| 1 | You are factory ? | We are factory we can offer the lowest quotation . |
| 2 | You factory ability? | Our factory has works more than 100 . over 20 engineers in research development team |
| 3 | Do you have many abord cutomers? | Bangladesh. Nigeria. Malaysia. The Philippines. In Indonesia. Chad. Guinea. more than 100 contries . |
| 4 | You can offer the dredger working site abord? | Yes . we can offer the working site for visitting . |
| 5 | Your can offer the all certification ? | We have full certifications Such as ISO . CE SO ON |
