Manufacturer Supply CS Thermodynamic Pipe Compensator

Product detail

Model NO.:

Pipe Compensator

Warranty:

1 Year

Keyword:

Expansion Joint

Filter Expansion Joint Color:

Customized

Joint:

Concrete Expansion Joint

Applicable Medium:

Water

Working Pressure:

Pn10/Pn16

Condition:

Shape:

Equal

Technics:

Forged

Color:

Custom

Trademark:

TRUST

Transport Package:

Wooden Cases, Carton, or as Requested

Origin:

Jiangsu

Product Description

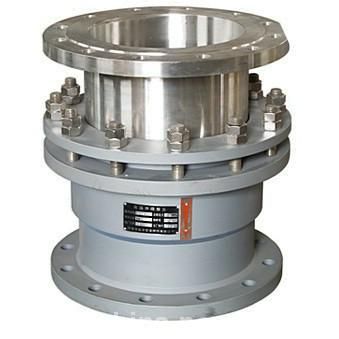

CS Thermodynamic Pipe Compensator

1,Release platen bolt before installation, lengthen compensator to installation length (see below table) and then screw down bolt without pressure bias.

2, The compensator shall be installed between the two steady rests of straight segment of pipeline to guarantee normal compensation of compensator.

Main Data:

Nominal Diameter mm	Compensation mm	Min Length mm	Max Length mm	Installation length mm
40	250	400	650	525
50	250	400	650	525
65	250	420	670	545
80	250	420	670	545
100	250	435	685	560
125	250	435	685	560
150	250	435	685	560
200	260	460	720	590
250	260	460	720	590
300	270	490	760	625
350	270	490	760	625
400	280	520	800	660
450	280	520	800	660
500	300	550	850	700
600	310	570	880	725
700	320	605	825	765
800	330	640	970	805
900	340	670	1010	840
1000	350	700	1050	875
1200	360	740	1100	90
1400	370	780	1150	965
1600	380	820	1200	1010
