F819 S-FC-DT
with
6 Months
Communication System
Elevator
1000kg
11-20
<1.0m/s
AC
Microcomputer Frequency Control
Telescoping Lift
Public Traffic
Hollow Guide
0,22~1,26
8~19 mm
Elevator Wire Rope
Elevator Rope
Sunny
in Carton Box
CE, ISO9001, CCC
Shanghai China
Product Description

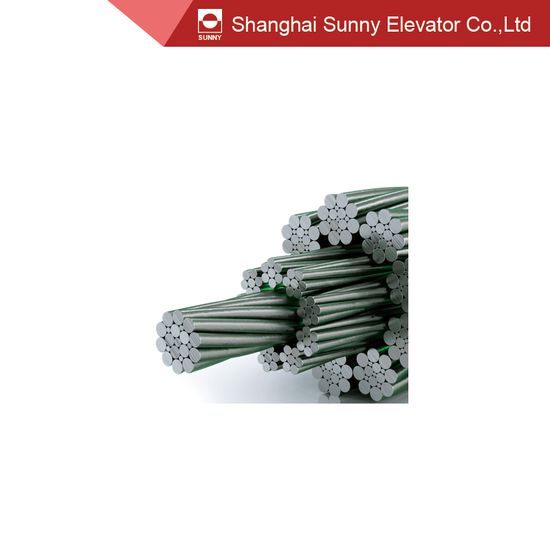

Elevator rope with fiber core
This rope is used in many standard elevators and has a proven history both in Europe and many other countries worldwide. Because of the dual tensile grade of the wires in the strands, this type may be used on softer traction sheaves. Thus, the hardness ratio rope/sheave is shifted towards the sheave.
Particularly for North America, you will find an even lower tensile grade of just 1180 N/mm2 outer strand hardness. See separate 4th Edition catalogue of Elevator Ropes for North America which you can also download.
Properties
- particularly suitable for softer traction sheaves
- excellent service life
- light and flexible
Technical data
Construction: 8 x 19 Seale with fiber core, regular lay
technical terms of delivery to DIN EN 12385, ISO 4344; BS 302-4
load bearing wires in the outer strands: 152
| rope-Ø (permissible tolerance) |
|---|
| rope-Ø (permissible tolerance) | |
|---|---|
| no load: | with load (10% of Fmin): |
| max. 6% < 10 mm | min. -0% <= 10 mm |
| max. 5% > 10 mm | min. -0% > 10 mm |
| rope diameter (mm) | calculated mass (kg/m) | min. breaking load (kN) | part-no. |
|---|---|---|---|
| 8 | 0,22 | 30,5 | 621108011 |
| 9* | 0,28 | 38,4 | 621109011 |
| 10 | 0,35 | 48,2 | 621110011 |
| 11 | 0,43 | 58,4 | 621111011 |
| 12 | 0,5 | 69,2 | 621112011 |
| 13 | 0,59 | 80,7 | 621113011 |
| 14* | 0,68 | 93 | 621114011 |
| 15* | 0,78 | 108 | 621115011 |
| 16 | 0,89 | 121 | 621116011 |
| 18 | 1,11 | 154 | 621118011 |
| 19* | 1,26 | 171 | 621119012 |
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
