SN-WTD2-P800/1000
with
6 Months
Communication System
Elevator
800/1000kg
11-20
0.5~2.0m/S
Manual
Microcomputer Control
Telescoping Lift
Public Traffic
T Guide
380V
230kg
800/1000kg
2:1
Sunny
in Carton Box
CE, ISO9001, CCC
China
Product Description

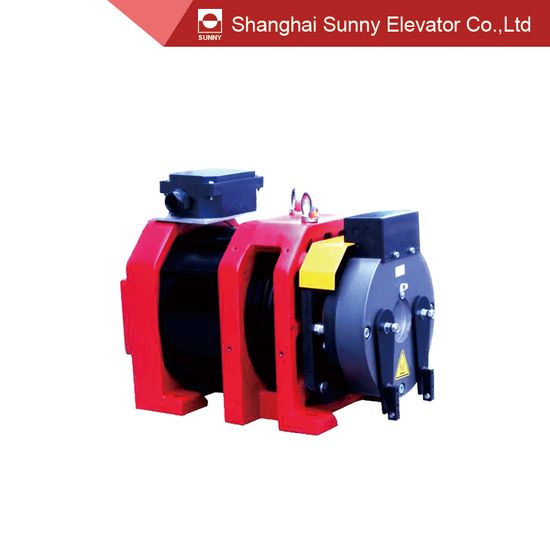

AC380V Elevator Traction Machine Gearless Motor For Elevator lift
Our hot product
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
Rated Voltage :AC380V
Brake Voltage :DC110V
Weight :230kg
Max. Static Load :3000kg
Roping :2:1
Wrap :Single
Insulation :F
Protection :IP41
Traveling Height ≤Rated Speed×60
ELEVATOR TRACTION MACHINE(ROPING 2:1)
| Load(kg) | Speed(m/s) | Rated output(kw) | Current(A) | Rated speed(rpm) | Frequency(Hz) | Sheave diameter(mm) | Poles(2p) | Torque(N.m) | Ropes | Groove |
| 800 | 0.5 | 2.7 | 12 | 60 | 9.9 | 320 | 20 | 428 | 6x Ø 8x12 | Undercut U |
| 800 | 1.0 | 5.3 | 12 | 119 | 19.9 | 320 | 20 | 428 | 6x Ø 8x12 | Undercut U |
| 800 | 1.5 | 8.0 | 21 | 179 | 29.8 | 320 | 20 | 428 | 6x Ø 8x12 | Undercut U |
| 800 | 1.6 | 8.5 | 21 | 191 | 31.8 | 320 | 20 | 428 | 6x Ø 8x12 | Undercut U |
| 800 | 1.75 | 9.3 | 21 | 209 | 34.8 | 320 | 20 | 428 | 6x Ø 8x12 | Undercut U |
| 800 | 2.0 | 10.9 | 25 | 239 | 39.8 | 320 | 20 | 428 | 6x Ø 8x12 | ndercut U |
| 1000 | 0.5 | 3.3 | 15 | 60 | 9.9 | 320 | 20 | 536 | 6x Ø 8x12 | ndercut U |
| 1000 | 1.0 | 6.6 | 15 | 119 | 19.9 | 320 | 20 | 536 | 6x Ø 8x12 | ndercut U |
| 1000 | 1.5 | 10.0 | 25 | 179 | 29.8 | 320 | 20 | 536 | 6x Ø 8x12 | ndercut U |
| 1000 | 1.6 | 10.6 | 25 | 191 | 31.8 | 320 | 20 | 536 | 6x Ø 8x12 | ndercut U |
| 1000 | 1.75 | 11.6 | 27 | 209 | 34.8 | 320 | 20 | 536 | 6x Ø 8x12 | ndercut U |
| 1000 | 2.0 | 13.6 | 31 | 239 | 39.8 | 320 | 20 | 536 | 6x Ø 8x12 | ndercut U |
DIMENSION DRAWING
