Elevator Parts T Type Elevator Solid Guide Rail

Product detail

Model NO.:

Solid Guide Rail

After-sales Service:

Warranty:

12 Months

Type:

Control System

Suitable for:

Elevator

Load Capacity:

1000kg

Persons:

11-20

Speed:

1.00-2.00m/s

Drive Mode:

Manual

Control Type:

Microcomputer Frequency Control

Lift Mechanism:

Telescoping Lift

Use of Occasions:

Public Traffic

Guide Rail:

Hollow Guide

Used:

Elevator Parts

Characteristics:

Reliable and Safety

Model:

Solid Guide Rail

Guide Rail Type:

T Guide

Trademark:

Sunny

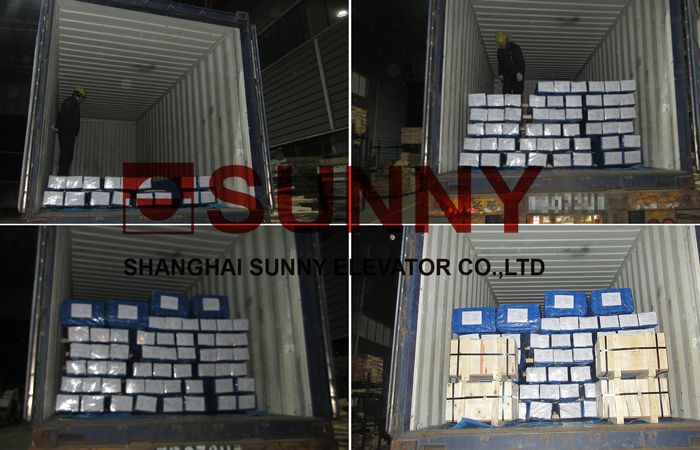

Transport Package:

in Carton Box

Specification:

CE, ISO9001, CCC

Origin:

Shanghai China

Product Description

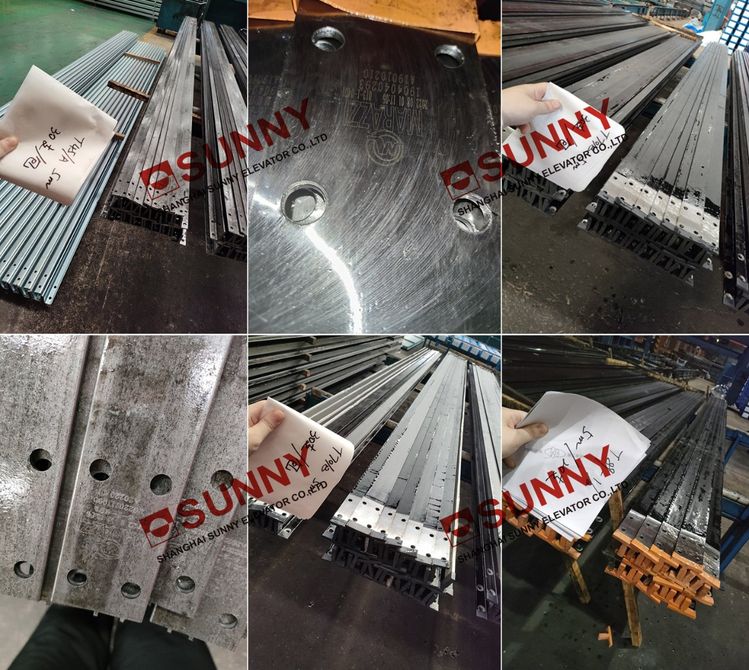

Elevator Solid Guide Rail For Passenger Elevator

Comparison table of dimensional tolerances for B-grade guide rails (unit: mm)

Standard	Model	b1	h1	h	k	n	f	g	c	b3	l3	l2	l	m1	m2	t1	t2	d	d1	L
		Tolerance
		±1.5	±0.75	±0.1	+0.1 0	+3 0	±0.75	±0.75		±0.2	±0.2	±0.2	+3 0	+0.6 0	0 -0.06	±0.1	±0.1	±0.2	±0.2	±2
JG/T5072.1-1996 ISO7465:1997 ISO7465:2001	T75-3/B	75	62	61	10	30	9	7	8	43	30	90	123	3	2.95	3.5	3	13	26
	T90/B	90	75	74	16	42	10	8	10	57.2	38.1	114.3	156	6.4	6.37	7.14	6.35	13	26
	T125/B	125	82	81	16	42	12	9	10	79.4	38.1	114.3	156	6.4	6.37	7.14	6.35	17	33
	T140-1/B	140	108	107	19	50.8	15.9	12.7	12.7	92.1	31.8	152.4	193	6.4	6.37	7.14	6.35	21	40
	T140-2/B	140	102	101	28.6	50.8	17.5	14.5	17.5	92.1	31.8	152.4	193	6.4	6.37	7.14	6.35	21	40
	T140-3/B	140	127	126	31.75	57.2	25.4	17.5	19	92.1	31.8	152.4	193	6.4	6.37	7.14	6.35	21	40

JG/T 5072.1-1996 ISO 7465:1997	T82/B	82.5	68.25	66.6	9	25.4	8.25	6	7.5	50.8	27	81	111	3	2.95	3.5	3	13	26
	T89/B	89	62	61	15.88	33.4	11.1	7.9	10	57.2	38.1	114.3	156	6.4	6.37	7.14	6.35	13	26
	T127-1/B	127	88.9	88	15.88	44.5	11.1	7.9	10	79.4	38.1	114.3	156	6.4	6.37	7.14	6.35	17	33
	T127-2/B	127	88.9	88	15.88	50.8	15.9	12.7	10	79.4	38.1	114.3	156	6.4	6.37	7.14	6.35	17	33

ISO 7465:2001 ISO 7465:2007 GB/T 22562-2008	T89/B	89	62	61	16	34	11.1	7.9	10	57.2	38.1	114.3	156	6.4	6.37	7.14	6.35	13	26
	T114/B	114	89	88	16	38	11	8	9.5	70	38.1	114.3	156	6.4	6.37	7.14	6.35	17	33
	T127-1/B	127	89	88	16	45	11	8	10	79.4	38.1	114.3	156	6.4	6.37	7.14	6.35	17	33
	T127-2/B	127	89	88	16	51	15.9	12.7	10	79.4	38.1	114.3	156	6.4	6.37	7.14	6.35	17	33

ISO 7465:2001	T78/B	78	56	55	10	26	8.5	6	7	43	30	90	123	3	2.95	3.5	3	13	26

ISO 7465:2007 GB/T 22562-2008	T75/B	75	62	61	10	30	9	7	8	42	25	105	138	3	2.97	3.5	3	13	26
	T78/B	78	56	55	10	26	8.5	6	7	42	25	105	138	3	2.97	3.5	3	13	26
	T90/B	90	75	74	16	42	10	8	10	57.2	38.1	114.3	156	6.4	6.37	7.14	6.35	13	26
	T125/B	125	82	81	16	42	12	8	10	79.4	38.1	114.3	156	6.4	6.37	7.14	6.35	17	33
	T140-1/B	140	108	107	19	51	15.9	12.7	12.7	92.1	31.8	152.4	193	6.4	6.37	7.14	6.35	21	40
	T140-2/B	140	102	101	28.6	51	17.5	14.5	17.5	92.1	31.8	152.4	193	6.4	6.37	7.14	6.35	21	40
	T140-3/B	140	127	126	31.75	57	25.4	17.5	19	92.1	31.8	152.4	193	6.4	6.37	7.14	6.35	21	40

Factory standard	T82-3/B	82	62	61	15.88	31	10	7.5	8	50	38.1	114.3	156	3	2.95	3.5	3	13	26
	T89-1/B	89	62	61	15.88	32	9	7	8	57.2	38.1	114.3	156	4	3.95	4.5	4	13	26
	T114/B	114	89	88	16	38	12	8	10	76	25	125	156	6.4	6.37	7.14	6.35	17	33

About us

Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
