Motor for Elevator Door Operator Parts

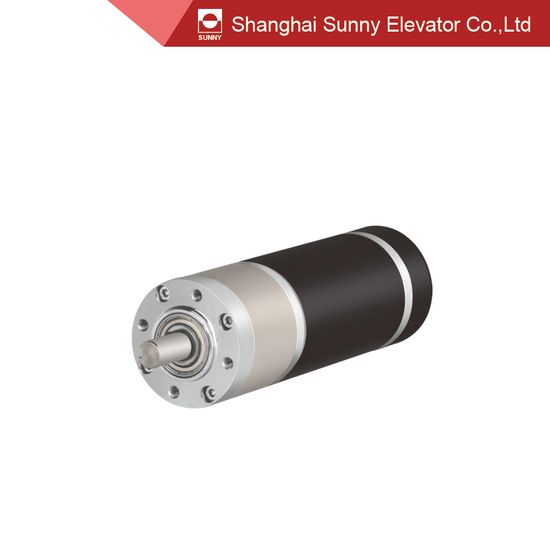

Motor for Door Operator
1. The external rotor structure of the motor has high torque density.
2. The motor adopts enclosed structure and the protection level reaches IP65.
3. Optimizing the electromagnetic design to make the motor have smaller slot torque,stable operation at low speed and high eficiency.
4. Using high performance permanent magnet material, design overload capacity (≥250%)
5. The grade electronic components was used in encoder for higher impact resistance.
6. The lead wire adopts silicon rubber high temperature shielded wire, which has good high temperature resistance and anti-interference ability.
7. Class-F Insulation Level, Make Motor Have Higher Life.
8. Compact structure design can further reduce the overall size of door operator.
PARAMETER
| Model | PM5182026 | |||||
|---|---|---|---|---|---|---|
| Dimensions(mm) | 140x160x64 | Rated Voltage(V) | 110 | Rated Current(A) | 1.5 | |
| Rated Wattage(W) | 120 | Poles | 20 | Rated Torque(N·m) | 2.3 | |
| Rated Speed(rpm) | 500 | Rated Frequency(Hz) | 83.3 | Working Type | 40%(S3 on 6s off 9s) | |
| Classification | IP65 | Insulation Grade | F | Encoder Classification | A/B/C/D/E | |
| Pulley | Tooth Outline | 5M | ||||
| Tooth Number | 28/19/16 | |||||
| Width of pulley(mm) | 17/13 | |||||
| A | 64 | |||||
| B | 53 | |||||
| C | 31 | |||||
| Note: | 1.Installation size:140x120mm 2.Matching pulley:HTD5M-16,HTD5M-26,HTD8M-22 3.High efficiency, multi-directional installation, dustproof and oil proof, high temperature resistance, long life, F grade insulation grade, IP65 protection grade 4.Insulation Resistance≥100MΩ Cold 5.The whole machine pressure resistance 1500V, 1min without flashover, no breakdown 6.No-load noise value≤48dB 7.No-load level & vertical vibration≤0.45mm/s | |||||
