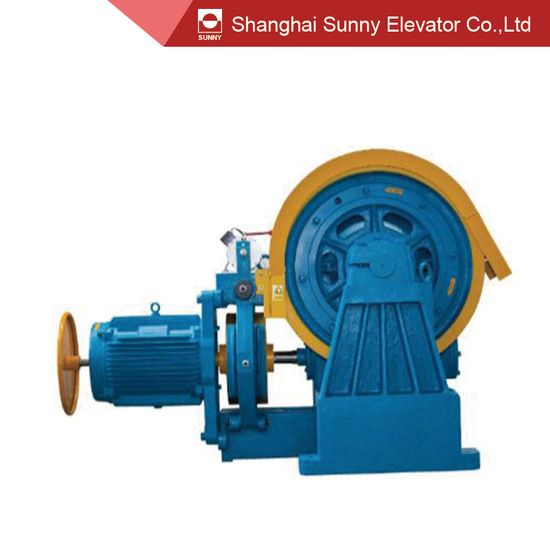

Elevator Geared Traction Machine SN-TMYJ200 Series
Elevator Geared Traction Machine SN-TMYJ200 Quality geared traction machine with CE certificate SN-TMYJ200 Series Geared Traction Machine Specification Dimension: Characteristic • VVVF drive for machine room lift; • Reliable quality with high safety factor; • High efficiency, energy saving; • Low...
High Quality geared traction machine for machine room lift
Load:1000kg~2000kg | Voltage:220V/380V | IP Code: IP41 |
Speed:0.5~1.0 m/s | Brake Vol: DC110V | INS.Class: F |
Roping:1:1 /2:1 | Static Load:5000kg | Poles: 32 |
SN-TMYJ200 Series Geared Traction Machine Specification
Type | Load | Lift | Sheave | Operating Data | |||||||
Diam | Groove | Vol | Power | Ratio | Speed | Current | Reduction Ratio | ||||
SN-TMYJ200-1000-0.5a | 1000 | 0.5 | 530 | 5×13-19 | 380 | 7.5 | 1:1 | 967 | 15.8 | 55:1 | |
SN-TMYJ200-1000-0.5b | 1000 | 0.5 | 530 | 5×13-19 | 380 | 7.5 | 2:1 | 967 | 15.8 | 55:2 | |
SN-TMYJ200-1000-1.0 | 1000 | 1.0 | 530 | 5×13-19 | 380 | 11 | 1:1 | 967 | 22.9 | 55:2 | |
SN-TMYJ200-1600-0.5 | 1600 | 0.5 | 530 | 5×13-19 | 380 | 11 | 2:1 | 967 | 22.9 | 55:2 | |
SN-TMYJ200-2000-0.5 | 2000 | 0.5 | 530 | 5×13-19 | 380 | 11 | 2:1 | 967 | 22.9 | 55:2 | |
Dimension:
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 31-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
