SN-MCG210
with
6 Months
Communication System
Elevator
800~1000kg
11-20
0.5~2.0 M/S
Manual
Microcomputer Frequency Control
Telescoping Lift
Public Traffic
T Guide
380V
330kg
2:1
240st/H
Sunny
in Carton Box
CE, ISO9001, CCC
China
Product Description
Gearless Traction Machine for Room-Less and Small Machine Room (SN-MCG210)
| Product Name: | Permanent Mangnet Synchronous Gearless Traction Machine (SN-MCG210) | Voltage: | 380V |
|---|---|---|---|
| Roping: | 2:1 | Wrap: | Single |
| Elv. Load: | 800~1000kg | Elv. Speed: | 0.5~2.0m/s |
| Sheave Diam: | 400mm | Duty: | S5-40%ED |
| Starts Per Hour: | 240st/h | Max. Static Load: | 4000kg |
| Weight: | 330kg | Brake: | DC110V 2X1.4A |
| IP Code: | IP41 | Ins. Class: | F |
| Spec | Elv Load(kg) | Elv Speed(m/s) | Sheave Diam(mm) | Sheave Groove | Current (A) | Power (KW) | Speed (r/min) | Freq (Hz) | Torque (N.m) | Poles | Undercut Angle(0) |
| 800-0.5A | 800 | 0.5 | 400 | 5xØ10x15 | 9 | 2.7 | 48 | 9.6 | 540 | 24 | 95 |
| 800-0.63A | 800 | 0.63 | 400 | 5xØ10x15 | 9 | 3.4 | 60 | 12 | 540 | 24 | |
| 800-1.0A | 800 | 1.0 | 400 | 5xØ10x15 | 13 | 5.4 | 95 | 19 | 540 | 24 | |
| 800-1.5A | 800 | 1.5 | 400 | 5xØ10x15 | 20 | 8.1 | 143 | 28.6 | 540 | 24 | |
| 800-1.6A | 800 | 1.6 | 400 | 5xØ10x15 | 20 | 8.7 | 153 | 30.6 | 540 | 24 | |
| 800-1.75A | 800 | 1.75 | 400 | 5xØ10x15 | 20 | 9.4 | 167 | 33.4 | 540 | 24 | |
| 800-2.0A | 800 | 2.0 | 400 | 5xØ10x15 | 24 | 10.8 | 191 | 38.2 | 540 | 24 | |
| 1000-0.5A | 1000 | 0.5 | 400 | 5xØ10x15 | 11 | 3.4 | 48 | 9.6 | 670 | 24 | |
| 1000-0.63A | 1000 | 0.63 | 400 | 5xØ10x15 | 11 | 4.2 | 60 | 12 | 670 | 24 | |
| 1000-1.0A | 1000 | 1.0 | 400 | 5xØ10x15 | 16 | 6.7 | 95 | 19 | 670 | 24 | |
| 1000-1.5A | 1000 | 1.5 | 400 | 5xØ10x15 | 27 | 10 | 143 | 28.6 | 670 | 24 | |
| 1000-1.6A | 1000 | 1.6 | 400 | 5xØ10x15 | 27 | 10.7 | 153 | 30.6 | 670 | 24 | |
| 1000-1.75A | 1000 | 1.75 | 400 | 5xØ10x15 | 27 | 11.7 | 167 | 33.4 | 670 | 24 | |
| 1000-2.0A | 1000 | 2.0 | 400 | 5xØ10x15 | 29 | 13.4 | 191 | 38.2 | 670 | 24 |
Our factory

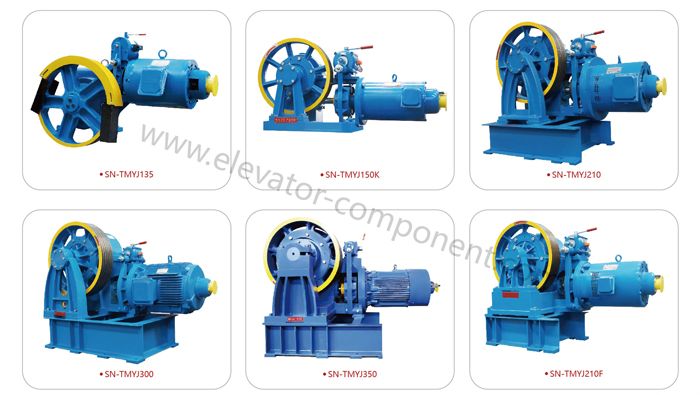

Our hot product
