HW, HT, HD, HF
Online Service, Free Express Accessories.
12 Months
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Scissor Lift
Middle-Level
Stationary
Hydraulic
Stationary
Explosion-Proof
GS, CE, RoHS, ISO 9001
110V, 220V, 380V, 400V, Customized
Red, Yellow, Orange, Blue, Green, Customized
1000kg, 2000kg, 4000kg, Customized
1m, 1.3m, 1.4m, 1.5m, Customized
Standard Models, Customized Models
Aluminum Safety Sensor
Explosion Proof Valve
Spillover Valve
Emergency Decline Valve
with Rollers on Top
with Protective Curtains
with Wheels for Easy Moving
with Guardrails
Battery Operated Moving
One Controller for Two Units Working Together
PLK LIFT
High Quality Box
1300*820*2000mm 320kg
China
8428909090
Product Description

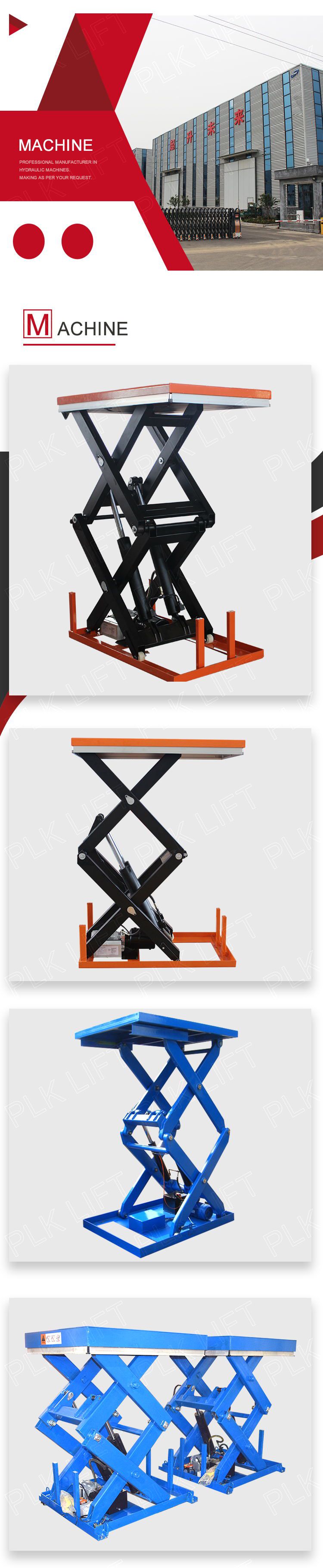

Remote Control 2m Lifting Height Scissor Lift Table
Double Scissor Lift is our standard model, it is equipped with two layers scissor. The max. platform height from 1000mm to 1500mm. Load capacity has 1000kg, 2000kg and 4000kg.
Double scissor lift upgrade from single scissor lift, and also equipped with safety valve: explosion-proof valve, spillover valve, and emergency decline valve etc. To ensure the safety both for goods and user. There is also 6 types options you can choose.
PLk double scissor lift table is popular for its easily operation. Having it will be your wisest choice.
Production sheet
| Model | Load Capacity(KG) | Self Height (MM) | Max Platform Height(MM) | Platform Size(MM) | Lifting time (S) | Voltage (V) | Net weight (KG) |
| HW1001 | 1000 | 205 | 1000 | 1300×820 | 20~25 | Single scissor 1ph or 3ph | 160 |
| HW1002 | 1000 | 205 | 1000 | 1600×1000 | 20~25 | 186 | |
| HW1003 | 1000 | 240 | 1300 | 1700×850 | 30~35 | 200 | |
| HW1004 | 1000 | 240 | 1300 | 1700×1000 | 30~35 | 210 | |
| HW1005 | 1000 | 240 | 1300 | 2000×850 | 30~35 | 212 | |
| HW1006 | 1000 | 240 | 1300 | 2000×1000 | 30~35 | 223 | |
| HW1007 | 1000 | 240 | 1300 | 1700×1500 | 30~35 | 365 | |
| HW1008 | 1000 | 240 | 1300 | 2000×1700 | 30~35 | 430 | |
| HW2001 | 2000 | 230 | 1000 | 1300×850 | 20~25 | 235 | |
| HW2002 | 2000 | 230 | 1050 | 1600×1000 | 20~25 | 268 | |
| HW2003 | 2000 | 250 | 1300 | 1700×850 | 25~35 | 289 | |
| HW2004 | 2000 | 250 | 1300 | 1700×1000 | 25~35 | 300 | |
| HW2005 | 2000 | 250 | 1300 | 2000×850 | 25~35 | 300 | |
| HW2006 | 2000 | 250 | 1300 | 2000×1000 | 25~35 | 315 | |
| HW2007 | 2000 | 250 | 1400 | 1700×1500 | 25~35 | 415 | |
| HW2008 | 2000 | 250 | 1400 | 2000×1800 | 25~35 | 500 | |
| HW4001 | 4000 | 240 | 1050 | 1700×1200 | 30~40 | 375 | |
| HW4002 | 4000 | 240 | 1050 | 2000×1200 | 30~40 | 405 | |
| HW4003 | 4000 | 300 | 1400 | 2000×1000 | 35~40 | 470 | |
| HW4004 | 4000 | 300 | 1400 | 2000×1200 | 35~40 | 490 | |
| HW4005 | 4000 | 300 | 1400 | 2200×1000 | 35~40 | 480 | |
| HW4006 | 4000 | 300 | 1400 | 2200×1200 | 35~40 | 505 | |
| HW4007 | 4000 | 350 | 1300 | 1700×1500 | 35~40 | 570 | |
| HW4008 | 4000 | 350 | 1300 | 2200×1800 | 35~40 | 655 | |
| HD1000 | 1000 | 305 | 1780 | 1300X820 | 35-45 | Multi scissor 1ph or 3ph | 210 |
| HD2000 | 2000 | 350 | 1780 | 1300X850 | 35-45 | 295 | |
| HD4000 | 4000 | 400 | 2050 | 1700X1200 | 55-65 | 520 | |
| HT1000 | 1000 | 470 | 3000 | 1700x1000 | 35-45 | 450 | |
| HT2000 | 2000 | 560 | 3000 | 1700x1000 | 50-60 | 750 | |
| HF400 | 400 | 600 | 4140 | 1700x1000 | 30-40 | 800 | |
| HF800 | 800 | 706 | 4210 | 1700x1000 | 70-80 | 858 |
Features & Advantages:
- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
